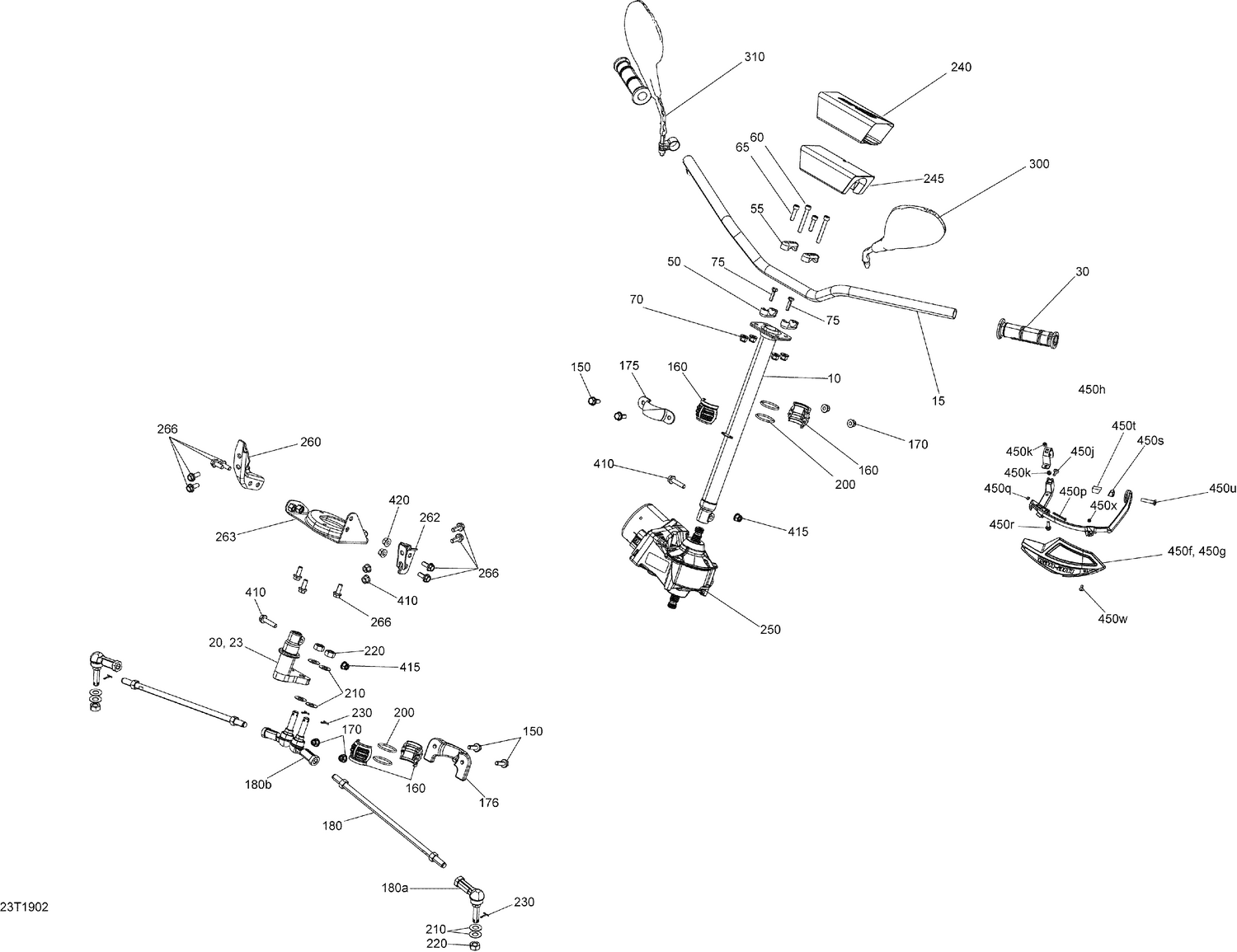

07- Steering
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 703501108 | Main Tube Kit This part replaces 709401750. |
| 15 | 709402063 | Sunburst Yellow, Handle Bar |
| 20 | 703501160 | Pitman Arm This part replaces 709401748. |
| 30 | 709400493 | Handle Grip |
| 50 | 709402750 | Lower Mounting Clamp This part replaces 709400497. |
| 55 | 709400496 | Support |
| 60 | 205086060 | Socket Head Screw M8 X 60 |
| 65 | 205083060 | Socket Screw M8 X 30 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 75 | 207183060 | Hex. Screw M8 X 30 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 709400783 | Spherical Half Bushing |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a | 709402303 | LH Ball Joint This part replaces 709401837. |
| 180b | 709402302 | RH Ball Joint This part replaces 709401839. |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 220 | 250100099 | Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 245 | 709402079 | Cover |
| 250 | 709403187 | Power Steering Ass'y This part replaces 709402230. |
| 260 | 709402192 | Power Steering Module Bracket |
| 262 | 709402185 | RH Bracket |
| 263 | 709401743 | Power Steering Support |
| 266 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 300a | 709400406 | LH Mirror |
| 300b | 709400523 | RH Mirror |
| 410 | 250000986 | Hex. Flange Screw M8 X 35 |
| 415 | 233281416 | Hex. Elastic Flange Nut M8 |
| 420 | 233081416 | Hex. Flange Nut M8 |
| 450f | 709402053 | Sunburst Yellow RH Air Deflector |
| 450g | 709402054 | Sunburst Yellow LH Air Deflector |
| 450h | 715001378 | Air Deflector Support Kit |
| 450j | 205444086 | Socket Head Screw M4 X 40 |
| 450k | 232541414 | Elastic Stop Nut M4 |
| 450p | 207662044 | Hex. Flange Screw M6 X 20 |
| 450q | 250000223 | Torx Screw M6 X 16 |
| 450r | 232561600 | Hex. Elastic Stop Nut M6 |
| 450s | 709400161 | Small Bracket |
| 450t | 709400162 | Large Bracket |
| 450u | 205384034 | Socket Head Screw |
| 450w | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 450x | 232551600 | Hex. Elastic Nut M5 |
