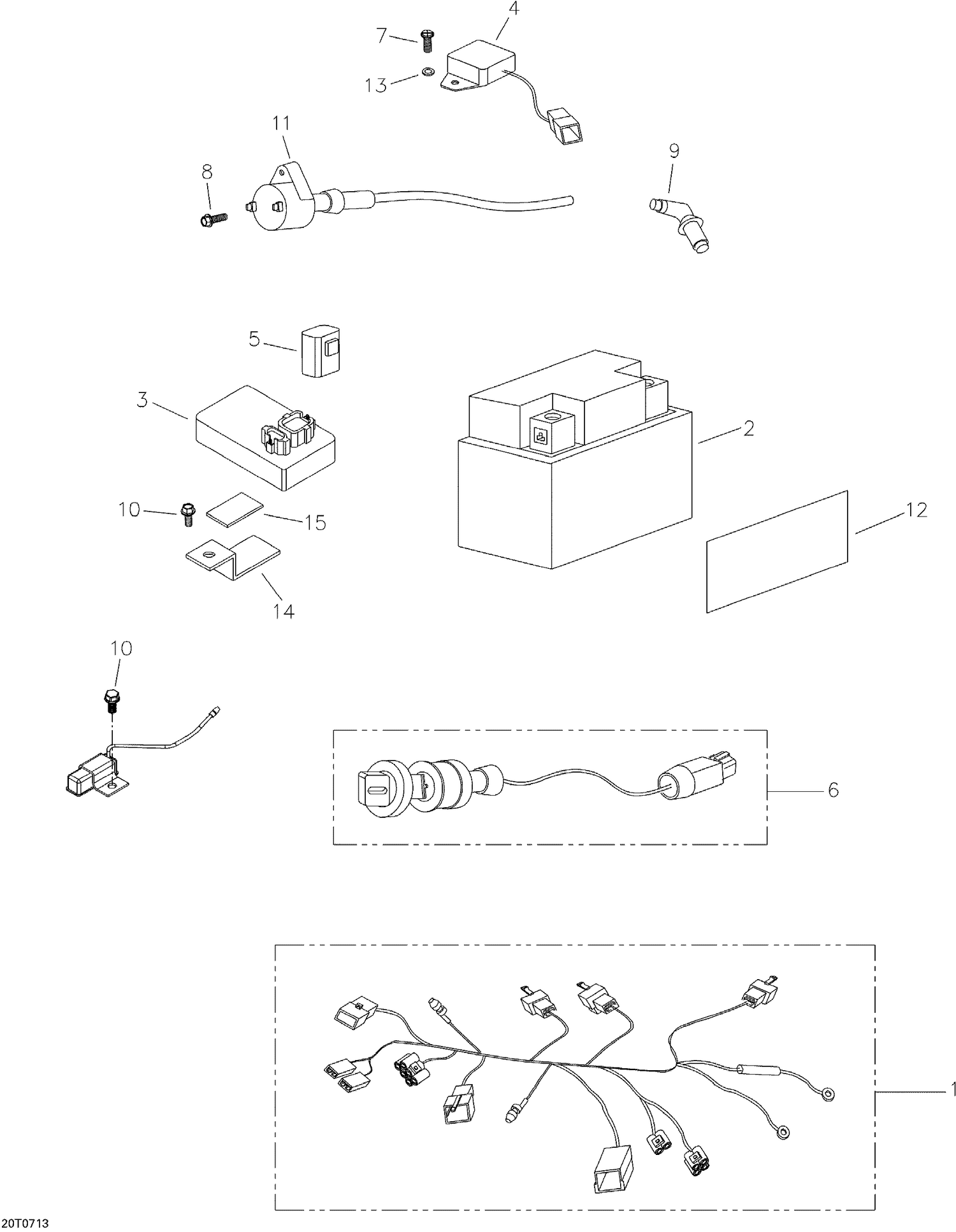

10- Electrical System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A32100238000 | Main Wire Harness |
| 2 | A31500166000 | BATTERY - Call your local BRP dealership |
| 3 | A3041017500A | C.D.I. UNIT - Call your local BRP dealership |
| 4 | A31600110000 | Regulator Rectifier |
| 5 | A38501152000 | STARTING RELAY - Call your local BRP dealership |
| 6 | A3510016600A | MAIN SWITCH ASS'Y - Call your local BRP dealership |
| 7 | A9350005012 | Pan Head Phillips Bolt M5 X 12 |
| 8 | A960000502408 | HEXAGONAL WASHER FACE BOLT M5X24 - Call your local BRP dealership |
| 9 | A30700168000 | SPARK PLUG CAP - Call your local BRP dealership |
| 10 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
| 11 | A30510175000 | High Tension Coil |
| 12 | A87723116000 | Decal Warning Battery |
| 13 | A941110612015 | Spring Washer, 6 X 12 X 1.5 |
| 14 | A54317175000 | BATTERY BRACKET - Call your local BRP dealership |
