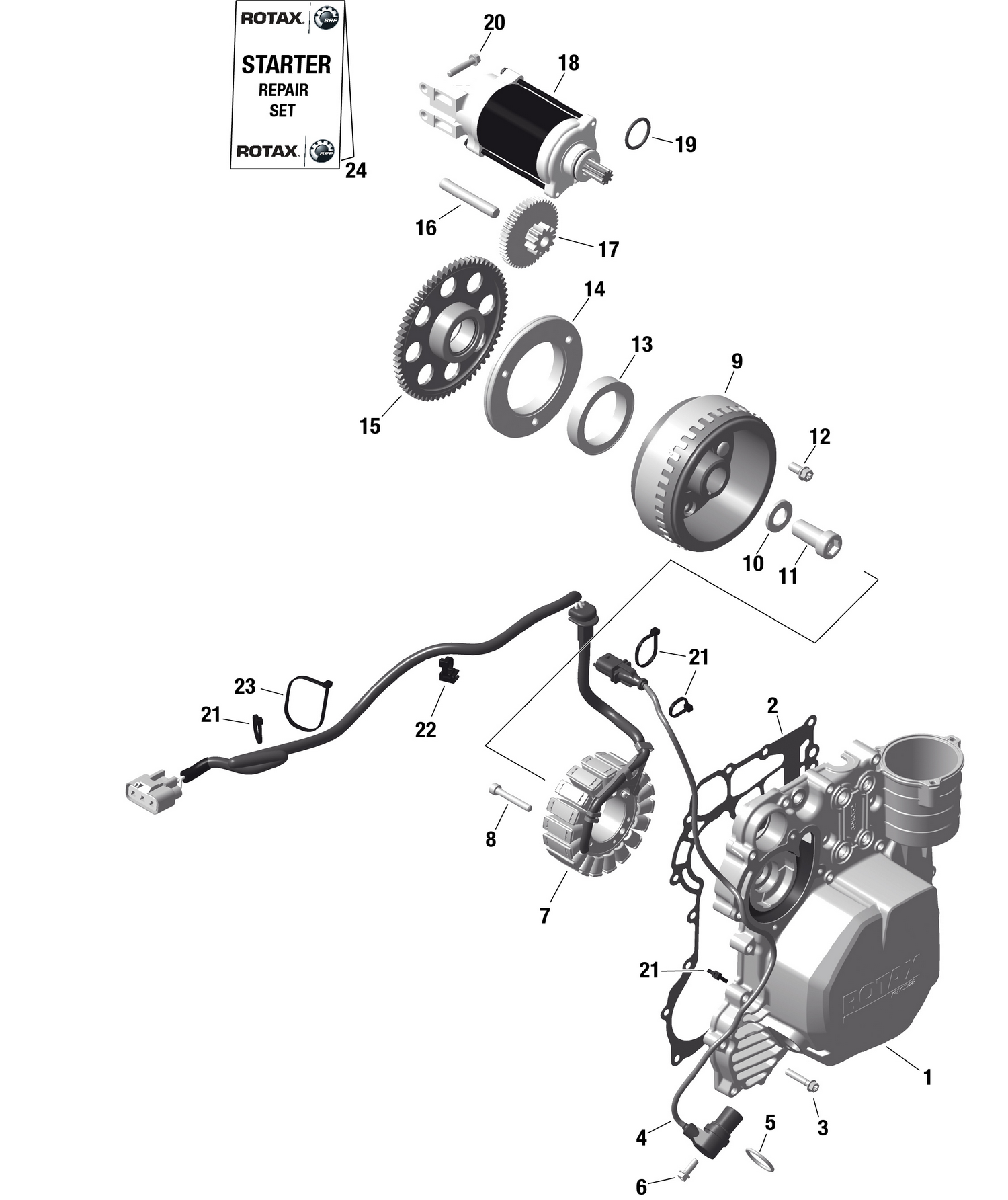

01- ROTAX - Magneto and Electric Starter
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911055 | Ignition Cover |
| 2 | 420431640 | Gasket |
| 3 | 420440647 | Flanged Torx Screw M6 X 30 |
| 4 | 420966570 | Crankshaft Position Sensor Ass'y |
| 5 | 420431580 | O-Ring 17,17X1,78 FPM 70 |
| 6 | 420440162 | Flanged Torx Screw M6 X 16 |
| 7 | 420685635 | Stator Ass'y (650W, 14V) |
| 8 | 420241956 | Allen Screw M6 X 40 |
| 9 | 420686190 | Mag. Flywheel With Trigger Wheel Ass'y |
| 10 | 420627270 | Shim A17 DIN 125 |
| 11 | 420241549 | Socket Head Screw M16 X 35 |
| 12 | 420440854 | Hex./Torx Flange Screw M8 x 16 |
| 13 | 420659113 | Sprag Clutch 51,710x68,377x13 |
| 14 | 420659263 | Sparg Clutch Housing |
| 15 | 420434238 | Free Wheel Gear 64 T Ass'y |
| 16 | 420229475 | Needle Pin ISO 8734-10X65-B-ST |
| 17 | 420634743 | Double Gear 11/49 |
| 18 | 420892435 | Electric Starter Ass'y |
| 19 | 420250145 | O-Ring |
| 20 | 420440647 | Flanged Torx Screw M6 X 30 |
| 21 | 420866714 | Tie Rap 142x3,2 MM |
| 22 | XXX | Not Available As Spare Parts |
| 23 | XXX | Not Available As Spare Parts |
