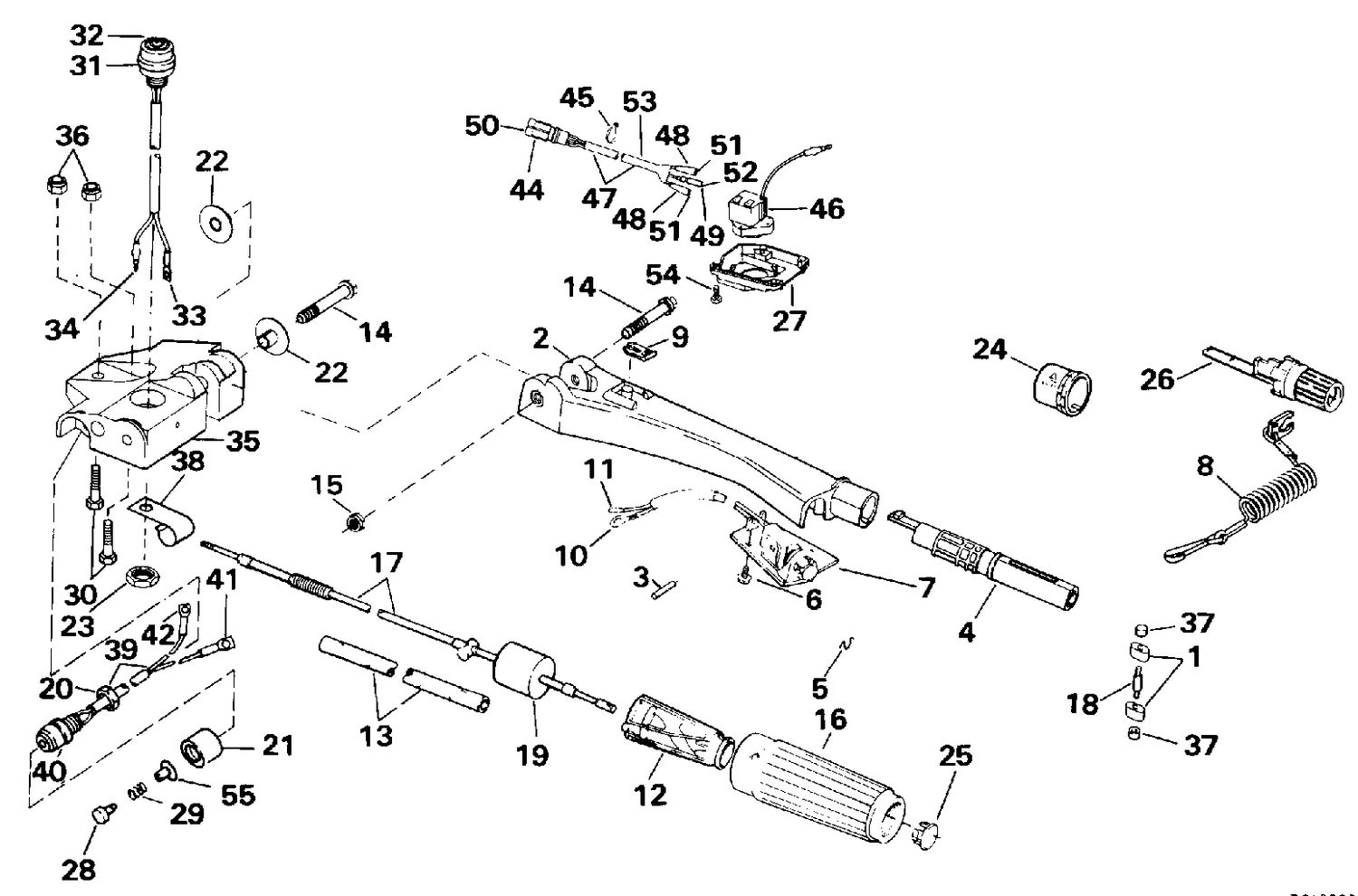

STEERING AND SHIFT HANDLE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 0585133 | INTERRUPTEUR D'ARRÊT This part replaces 0584470. |
| 12 | 0329882 | GRIP&HELIX AY |
| 16 | 0433657 | GRIP ASSY |
| 27 | 0334942 | COVER, Cable & horn |
| 29 | 0313584 | SPRING |
| 31 | 0584693 | SWITCH AY., Primer |
| 35 | 0334642 | BRACKET, Steering handle |
| 38 | 0316993 | CLAMP, Batter cable |
| 39 | 0584694 | SWITCH ASSY., Start |
| 46 | 0585992 | HORN This part replaces 0584212. |
| 47 | 0583935 | CABLE ASSEMBLY |
| 49 | 0513136 | SLEEVE |
| 53 | 0510772 | SLEEVE |
