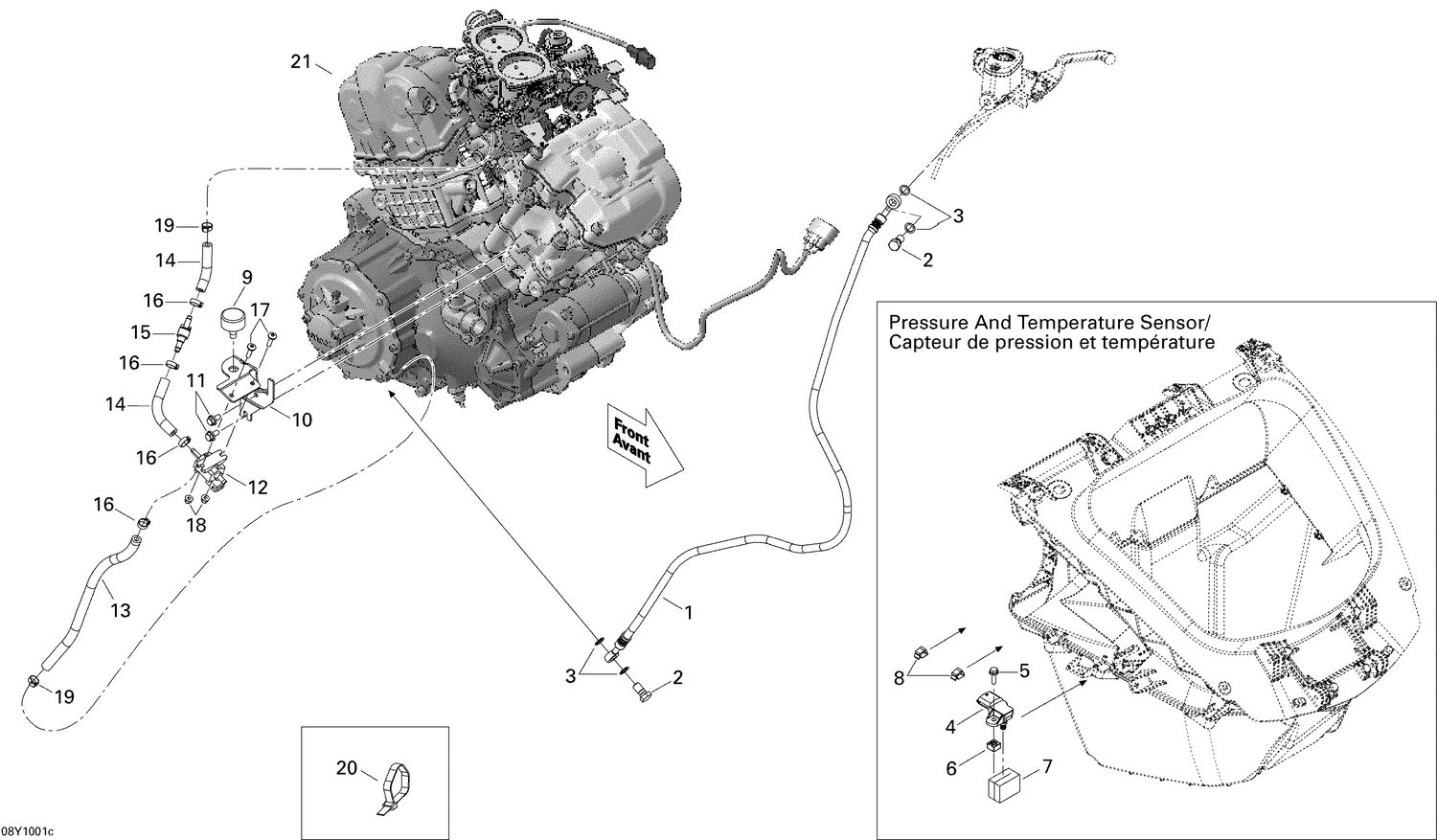

01- Engine SM5
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707000590 | CLUTCH HOSE - Call your local BRP dealership |
| 2 | 414920500 | Banjo Bolt |
| 3 | 414920600 | Washer |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 707000564. |
| 5 | 207662084 | Hex. Flange Screw M6 X 20 |
| 6 | 269500725 | M6 Nut Housing Ass'y |
| 7 | 707000586 | Foam Filter |
| 8 | 414227300 | Clip |
| 9 | 708000758 | Rubber Stopper |
| 10 | 707000756 | Intake Support |
| 11 | 207661244 | Hex. Flange Screw M6 X 12 |
| 12 | 707001596 | Solenoid Valve This part replaces 707000530. |
| 13 | 513033565 | Hose This part replaces 415129493. |
| 14 | 513033565 | Hose This part replaces 415129493. |
| 15 | 513033469 | Check Valve |
| 16 | 293650042 | Oetiker Clamp |
| 17 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 18 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 19 | 293650042 | Oetiker Clamp |
| 20 | 293750002 | Tie Wrap 142 mm |
| 20 | 293750008 | Tie Wrap 368 mm |
| 20 | 414115200 | Tie-Rap 180 mm |
