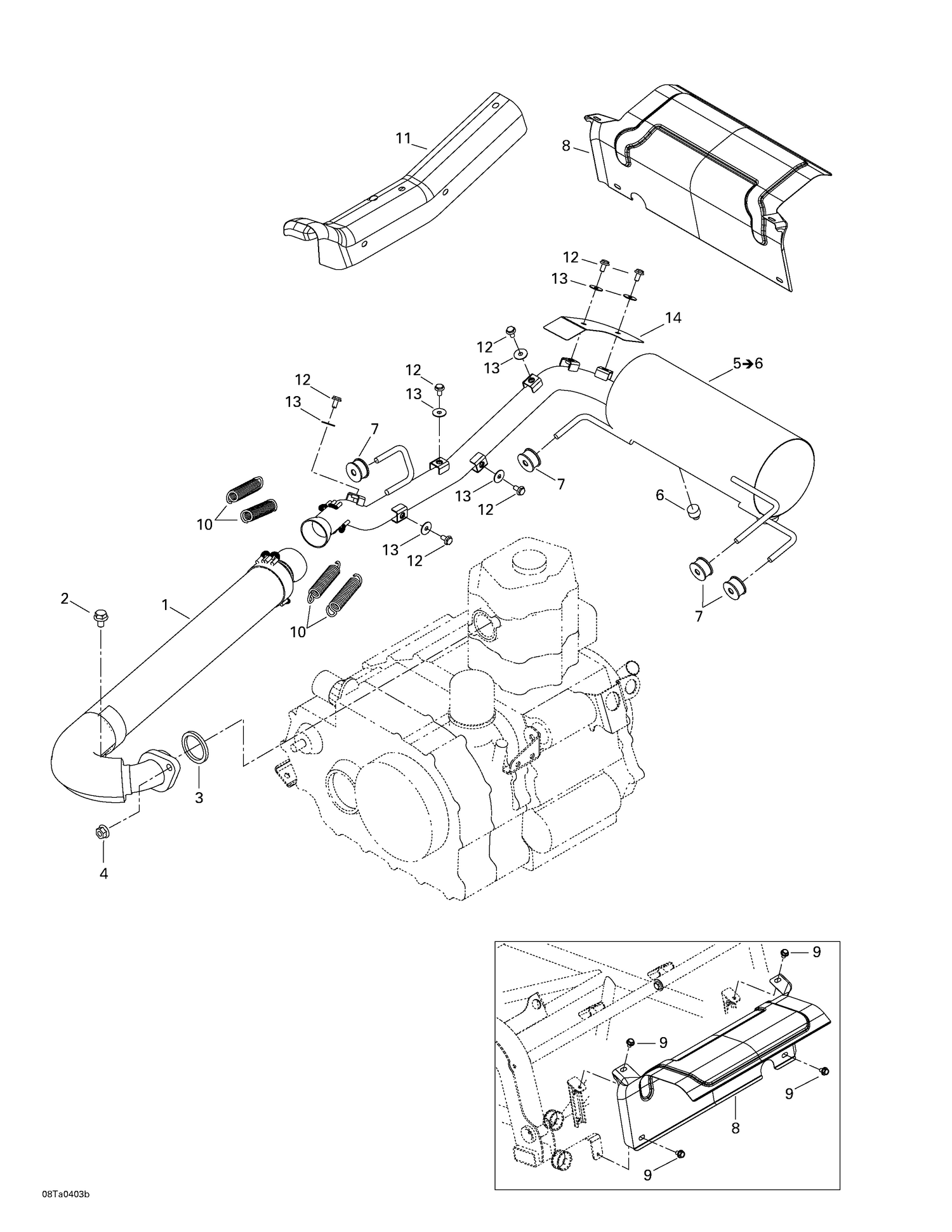

01- Exhaust System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707600062 | Tuned Pipe |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 3 | 707600003 | GASKET - Call your local BRP dealership |
| 4 | 233081416 | Hex. Flange Nut M8 |
| 6 | 250500003 | Drain Plug |
| 7 | 707600702 | Anti-Vibration Rubber This part replaces 707600012. |
| 8 | 707600094 | Heat Shield |
| 9 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 10 | 415107100 | Spring |
| 11 | 707600100 | Heat Shield |
| 12 | 250000073 | HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 13 | 224060201 | Flat Washer |
