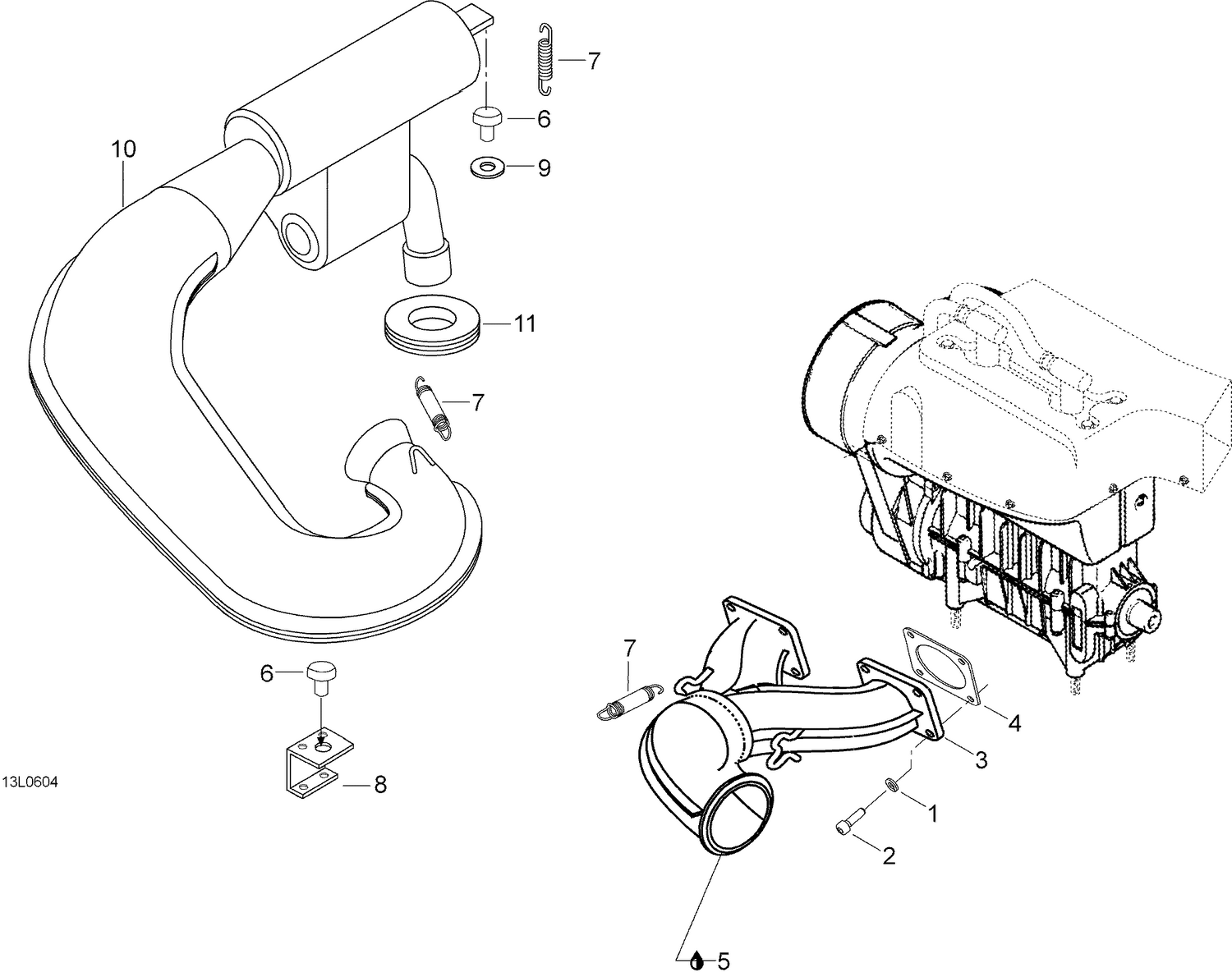

01- Exhaust System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20014 | Lock washer A8 |
| 2 | 40135 | Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 3 | 420973512 | EXHAUST MANIFOLD - Call your local BRP dealership |
| 4 | 420831849 | Seal |
| 5 | 293800090 | Loctite, 80ml |
| 6 | 514053654 | Rubber Bumper |
| 7 | 420938796 | Spring This part replaces 420938795. |
| 8 | 5442681 | SUPPORT - Call your local BRP dealership |
| 9 | 20087 | Washer M14 |
| 10 | 420979853 | TUNED PIPE - Call your local BRP dealership |
