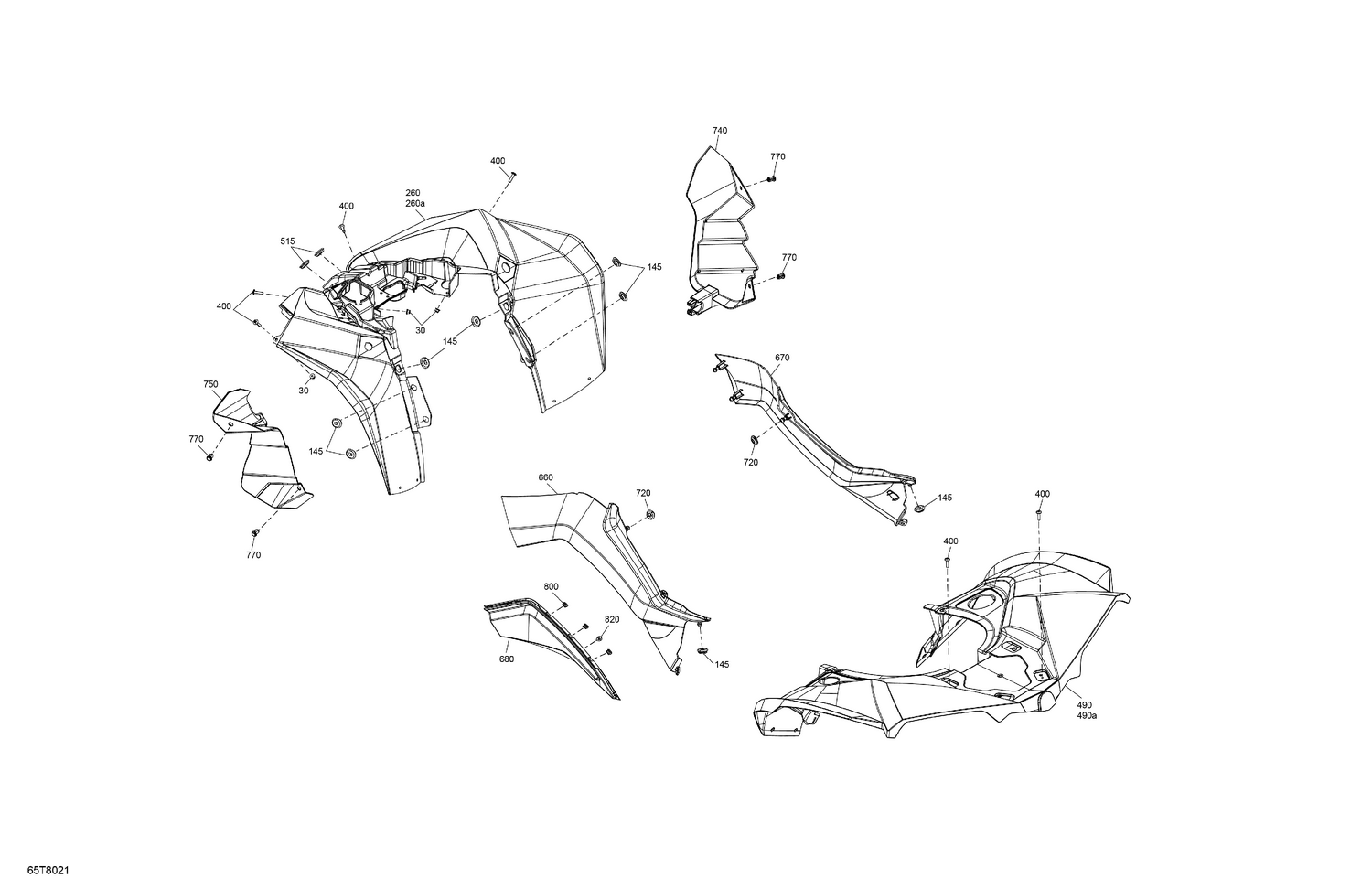

07- Body - Fender Kit
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 145 | 705000321 | Oval Washer |
| 260a | 705008621 | Front Fender |
| 400 | 250000758 | Torx Screw M6 X 25 |
| 490a | 705008622 | Rear Fender |
| 515 | 705003668 | Oblong Grommet |
| 660 | 705011992 | Darth Vader Black, LH Side Panel |
| 670 | 705011993 | Darth Vader Black, RH Side Panel |
| 680 | 705004988 | Panel Extension |
| 720 | 705003264 | Grommet |
| 740 | 705017922 | RH Front Wheel Arch Protector |
| 750 | 705017926 | LH Front Wheel Arch Protector This part replaces 705011891. |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 800 | 414479100 | Clip |
