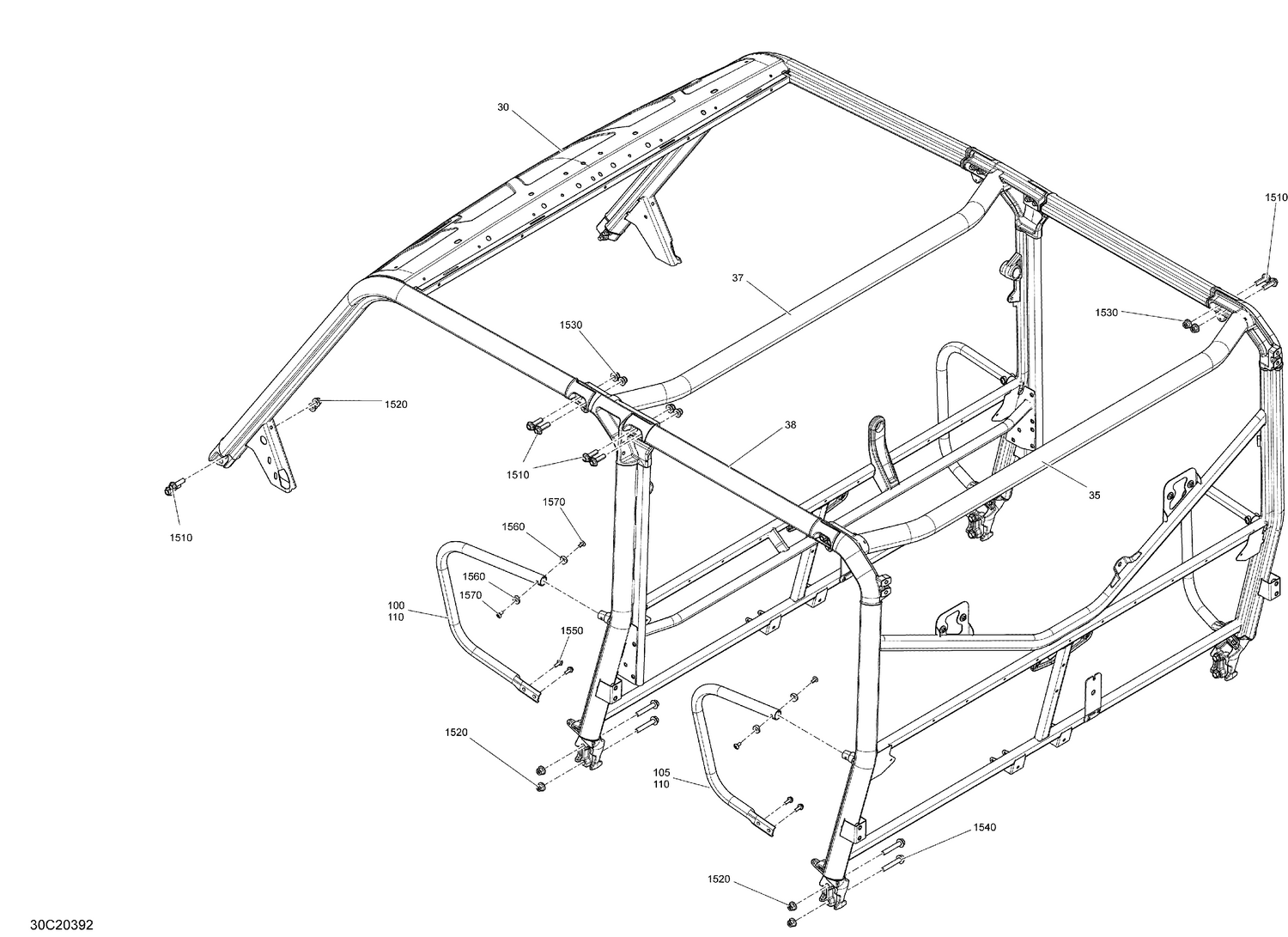

| Ref | Part Number | Description |
|---|
| 30 |
715008406 |
Front Cage Ass'y This part replaces 715006530. |
| 35 |
715006532 |
Rear Cage Profile Ass'y |
| 37 |
715006667 |
Deep Black, Central Cage Ass'y |
| 38 |
705209848 |
Deep Black, Cage Extension This part replaces 705205401. |
| 100 |
705204594 |
Deep Black, LH Protector Tube |
| 105 |
705204590 |
LH Side Protect |
| 110 |
705204592 |
Deep Black, RH Protector Tube |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1530 |
233201466 |
Flange Elastic Nut M10 |
| 1540 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1550 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1560 |
705202223 |
Offset Washer |
