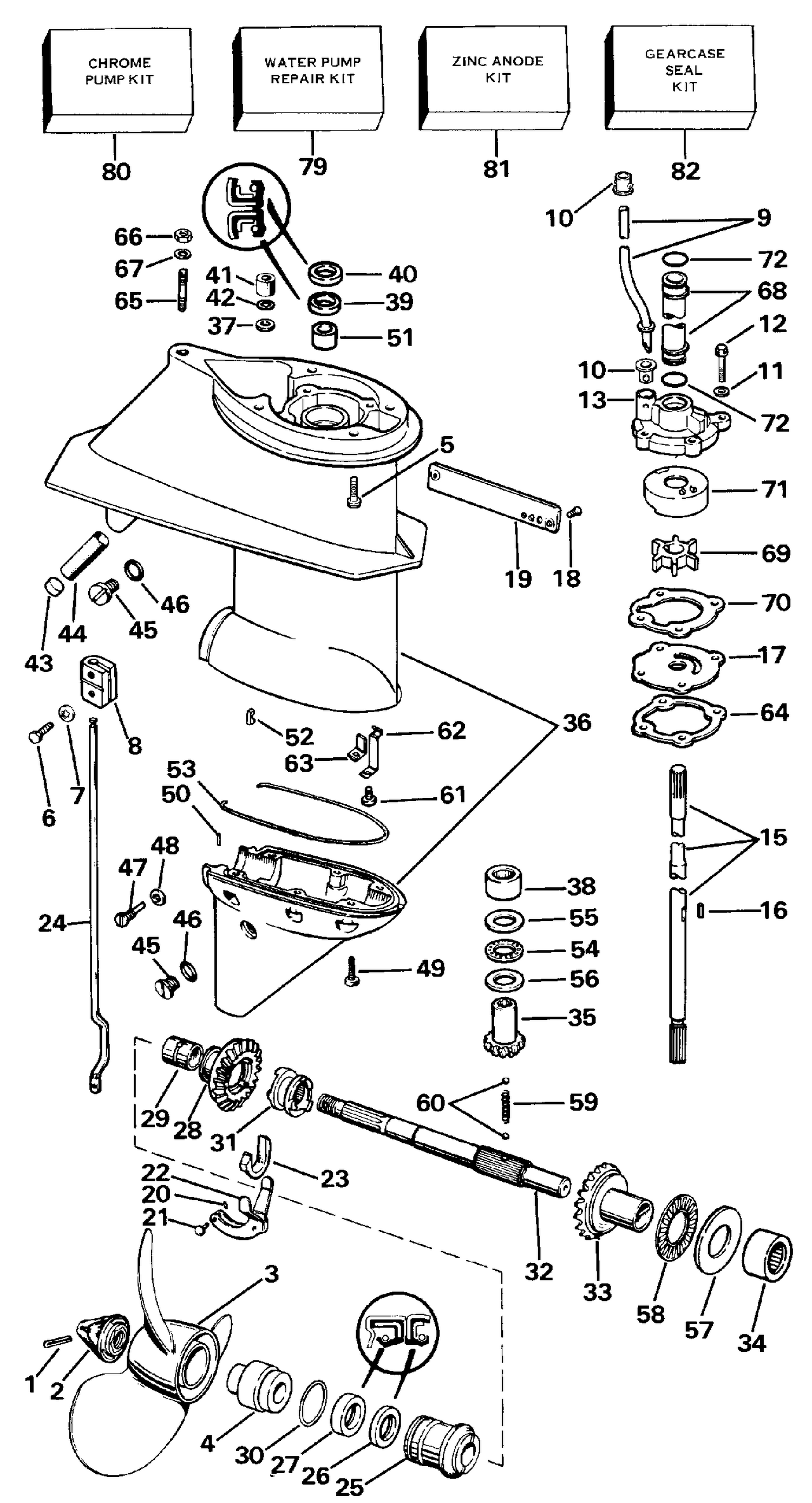

| Ref | Part Number | Description |
|---|
| 2 |
0390294 |
NUT, PROPELLER |
| 3 |
0388883 |
PROPELLER, 9 1/4 x 11 AL |
| 3 |
0389068 |
PROPELLER, 9 x 10 |
| 3 |
0389069 |
PROPELLER, 9 1/4 X 10 AL |
| 3 |
0389321 |
PROPELLER, 9 1/4 x 12 SST |
| 3 |
0389944 |
PROPELLER, 9 1/4 x 12 AL, (Std.) |
| 4 |
0389281 |
PROP BUSHING ASSY. |
| 5 |
0328333 |
SCREW |
| 9 |
0329363 |
WATER TUBE, Standard |
| 12 |
0324960 |
SCREW, Impeller housing |
| 13 |
0330560 |
HOUSING, Impeller |
| 15 |
0329393 |
DRIVESHAFT, Standard |
| 17 |
0324564 |
PLAT,E Impeller housing |
| 17 |
0329391 |
PLATE, Impeller housing |
| 18 |
0303587 |
SCRES,Cover plate |
| 19 |
0302505 |
COVER, Water by-pass |
| 22 |
0375755 |
LEVER & PIN ASSY. |
| 24 |
0329387 |
SHIFT ROD, Lower |
| 25 |
0389045 |
GEARCASE HEAD ASSY |
| 26 |
0321459 |
OIL RETAINER, Housing |
| 27 |
0321787 |
SEAL, Oil, prop shaft, outer |
| 28 |
0329389 |
GEAR, Reverse |
| 29 |
0303997 |
BUSHING, Reaverse gear |
| 30 |
0321921 |
JOINT TORIQUE |
| 32 |
0323294 |
SHAFT, Propeller |
| 33 |
0394121 |
GEAR & BUSHING, Forward |
| 34 |
0389472 |
BEARING, Forward gear |
| 35 |
0329392 |
GEAR, Pinion, driveshaft |
| 36 |
0432810 |
GEARCASE & BEARING ASSY. |
| 39 |
0321459 |
OIL RETAINER, Housing |
| 40 |
0330327 |
RETAINER, Oil driveshaft, outer |
| 42 |
0301877 |
O RING SHIFT ROD |
| 49 |
0330562 |
SCREW, Gearcase |
| 50 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 53 |
SEAL, |
Gearcase |
| 55 |
0319667 |
THRUST WASHER |
| 56 |
0322688 |
THRUST WASHER, Bearing |
| 57 |
0324459 |
THRUST WASHER, Foreward gear |
| 58 |
0389470 |
THRUST BEARING |
| 61 |
0306478 |
SCREW |
| 62 |
0303466 |
DENTENT, Spring |
| 63 |
0303700 |
SPRING, Detent backup |
| 64 |
0324449 |
GASKET , Impeller housing plate |
| 65 |
0330060 |
STUD |
| 67 |
0312687 |
WAHSER,Bushing |
| 68 |
0329366 |
SPACER, Impeller hsg. |
| 70 |
0329390 |
GASKET, Impeller housing |
| 72 |
0301967 |
O RING |
| 79 |
0395270 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0395271. |
| 80 |
0394392 |
CHROME PUMP KIT |
| 81 |
0173029 |
ANODE |
| 0432814 |
0432814 |
GEARCASE ASSY., Complete |
