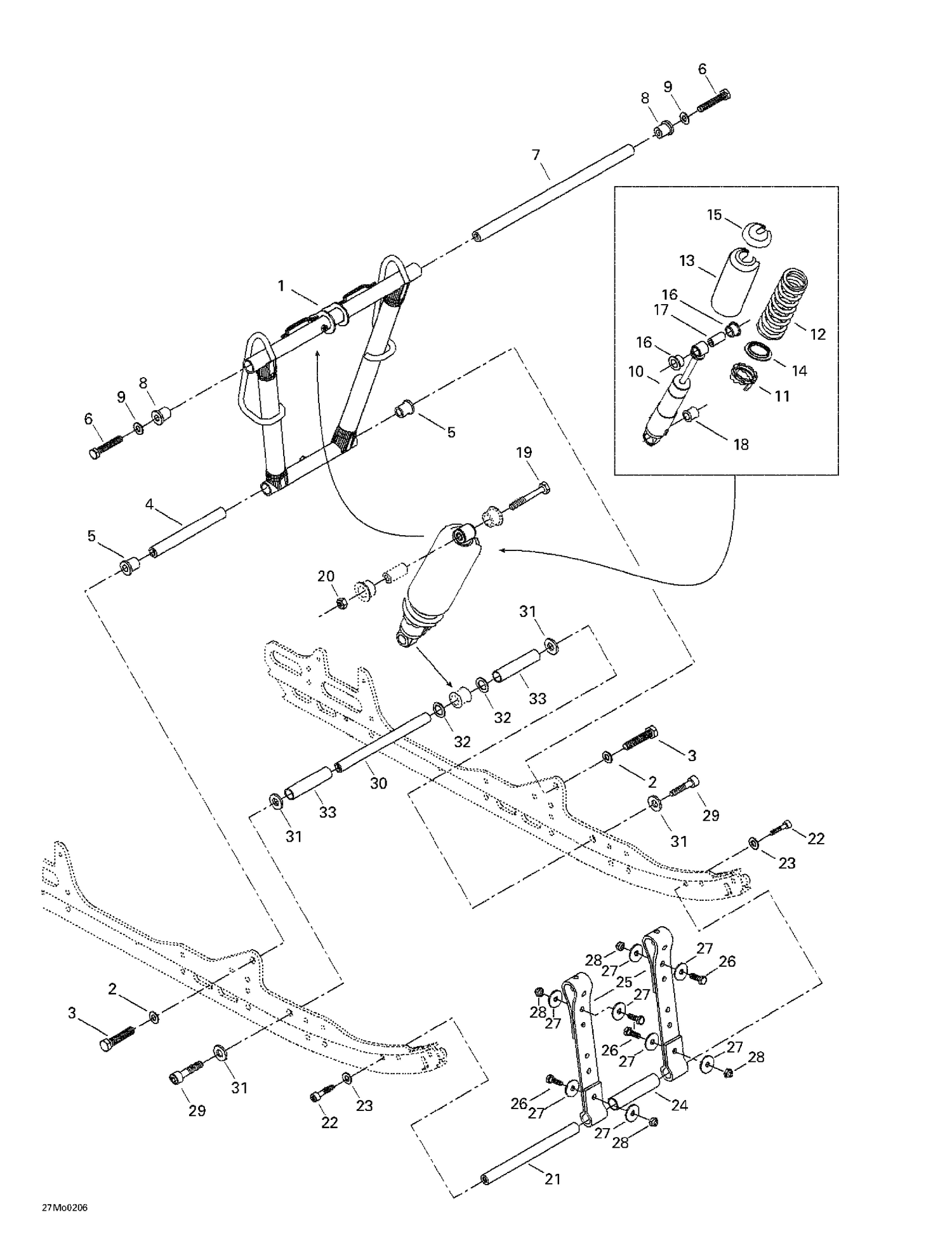

| Ref | Part Number | Description |
|---|
| 1 |
503189292 |
Front Arm |
| 2 |
503189276 |
Washer |
| 3 |
207226044 |
HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 4 |
503189313 |
SHAFT - Call your local BRP dealership |
| 5 |
503189323 |
CUSHION - Call your local BRP dealership |
| 6 |
207205544 |
Hex. Screw M10 X 55, Scotch Grip |
| 7 |
503190387 |
SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 8 |
503189324 |
Bushing |
| 9 |
732900049 |
Washer |
| 12 |
503189325 |
SPRING - Call your local BRP dealership |
| 13 |
503193663 |
Protector This part replaces 503188930. |
| 15 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 16 |
503189117 |
Urethane Bushing |
| 17 |
503189282 |
Bushing |
| 18 |
503189271 |
Bushing |
| 19 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 20 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 21 |
503189562 |
AXLE - Call your local BRP dealership |
| 22 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 23 |
503189564 |
Washer |
| 24 |
503189265 |
Spacer |
| 25 |
503190782 |
STOPPER STRAP - Call your local BRP dealership This part replaces 503189362. |
| 26 |
207182544 |
Hex. Screw M8 X 25 |
| 27 |
224081301 |
Flat Washer |
| 28 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 29 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 30 |
503189272 |
CENTER SHOCK SHAFT - Call your local BRP dealership |
| 31 |
503189276 |
Washer |
| 32 |
503189273 |
Washer |
| 503189804 |
Amortisseur |
Central 503189804 |
| 503189804 |
Center |
Shock 503189804 |
| 503191872 |
Guide |
De Ressort This part replaces 517184300. 503191872 |
| 503191872 |
Spring |
Guide This part replaces 517184300. 503191872 |
| 505073625 |
Adjustment |
Cam This part replaces 505070150. 505073625 |
| 505073625 |
Came |
De Réglage This part replaces 505070150. 505073625 |
