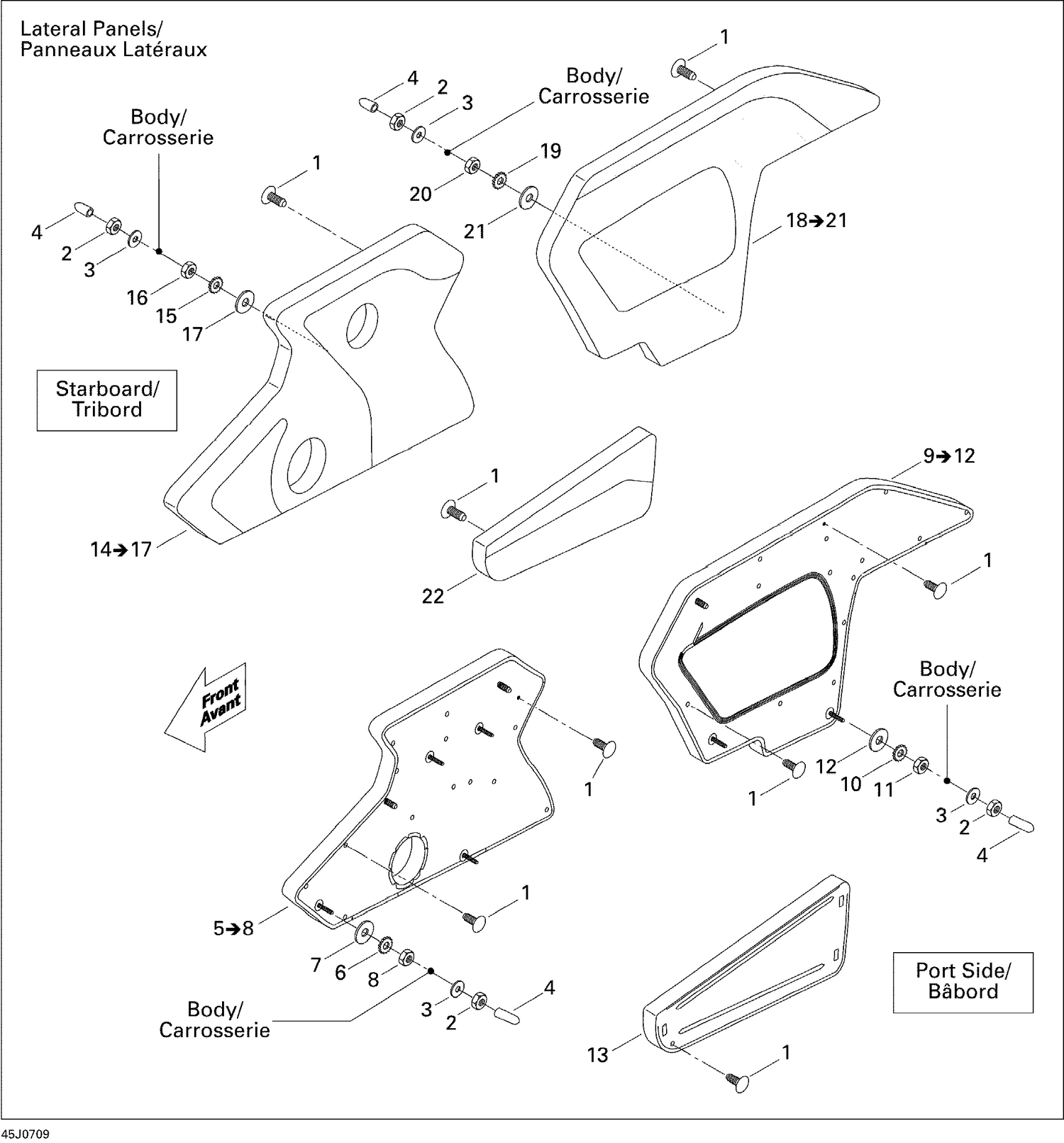

09- Lateral Panel
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293730014 | Black Dart |
| 2 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 3 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
| 4 | 204070947 | Cap |
| 6 | 234461608 | External Serrated Lock Washer 6 mm |
| 7 | 204100060 | Hex. Jam Nut |
| 8 | 234062600 | Flat Washer M6, Stainless |
| 10 | 234461608 | External Serrated Lock Washer 6 mm |
| 11 | 204100060 | Hex. Jam Nut |
| 12 | 234062600 | Flat Washer M6, Stainless |
| 13 | 204613187 | Lower Panel, Port Side |
| 15 | 234461608 | External Serrated Lock Washer 6 mm |
| 16 | 204100060 | Hex. Jam Nut |
| 17 | 234062600 | Flat Washer M6, Stainless |
| 19 | 234461608 | External Serrated Lock Washer 6 mm |
| 20 | 204100060 | Hex. Jam Nut |
| 21 | 234062600 | Flat Washer M6, Stainless |
