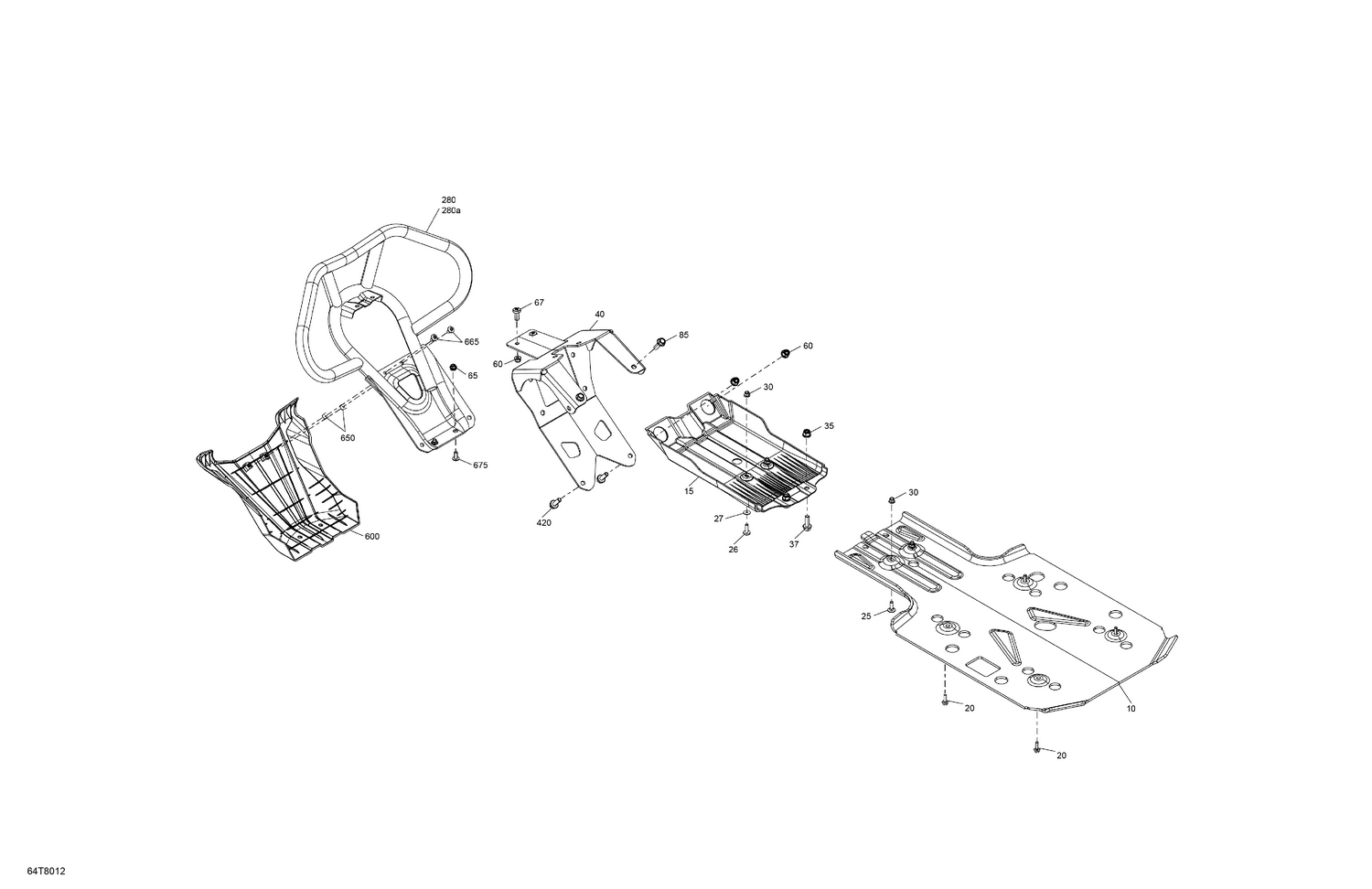

07- Body - Skid Plate and Bumper
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705204031 | Central Skid Plate |
| 15 | 705007820 | Skid Plate |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 26 | 250000712 | Torx Screw M6 X 20 |
| 27 | 234062670 | Stainless Steel Flat Washer |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 37 | 207682544 | Hex. Flange Screw M8 X 25 |
| 40 | 705013102 | Winch Support |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 65 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 67 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 85 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 280a | 705011635 | Front Bumper |
| 420 | 207682544 | Hex. Flange Screw M8 X 25 |
| 600 | 705004850 | Front Bumper Plate |
| 650 | 232862412 | Square Nut M6 |
| 665 | 250000454 | Torx Screw M6 X 12 |
