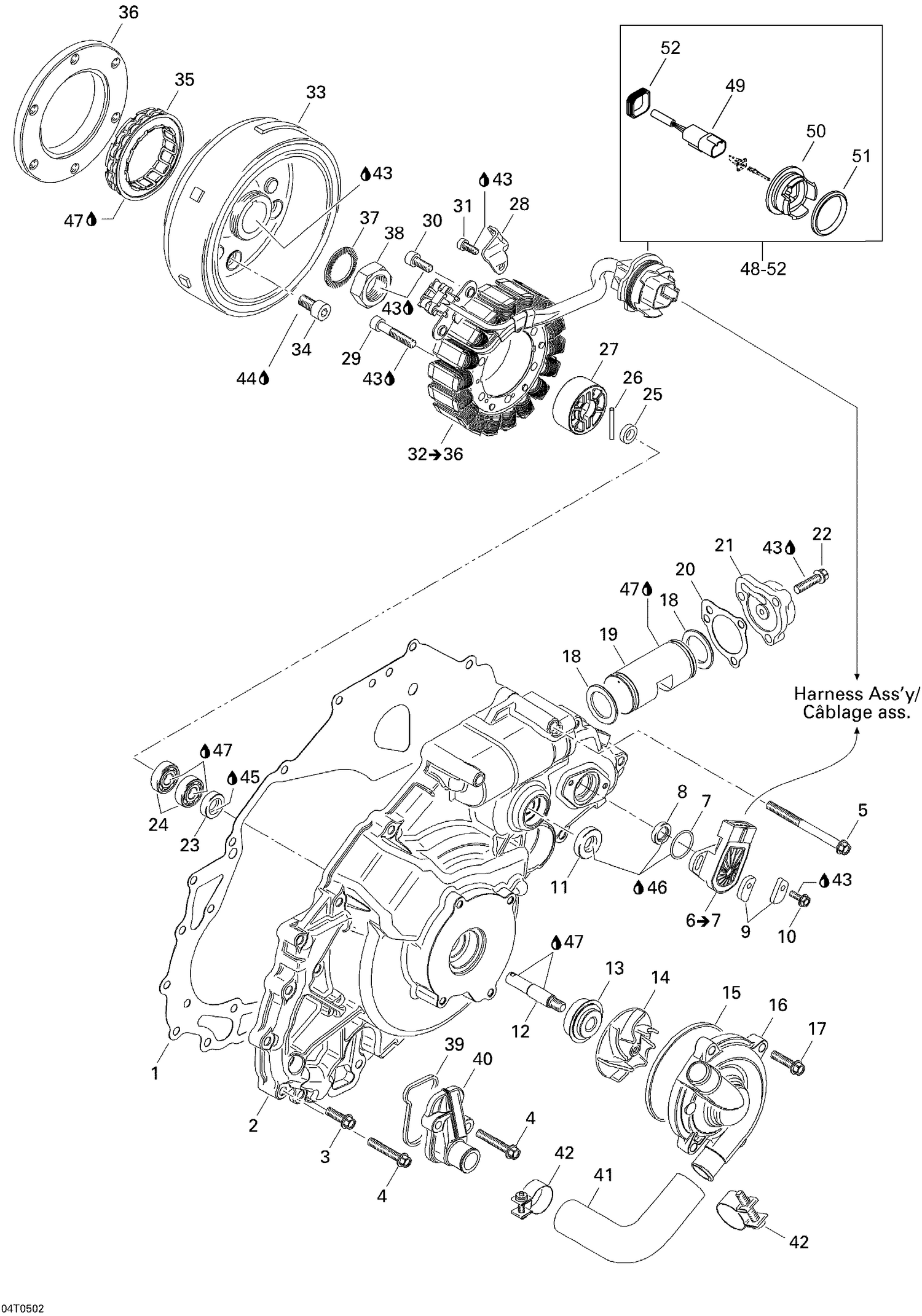

| Ref | Part Number | Description |
|---|
| 1 |
420650603 |
GASKET, IGNITION COVER - Call your local BRP dealership |
| 2 |
420211821 |
IGNITION COVER - Call your local BRP dealership |
| 3 |
420241861 |
HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership |
| 4 |
420941126 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 5 |
420940576 |
Hex. Flange Screw M6 X 70 |
| 7 |
420931390 |
O-RING - Call your local BRP dealership |
| 8 |
420230870 |
Oil Seal |
| 9 |
420224630 |
REINFORCEMENT - Call your local BRP dealership |
| 10 |
420440291 |
SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership |
| 11 |
420950400 |
OIL SEAL - Call your local BRP dealership |
| 12 |
420220560 |
WATER PUMP SHAFT - Call your local BRP dealership |
| 13 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 14 |
420222540 |
WATER IMPELLER - Call your local BRP dealership |
| 15 |
420650570 |
Rubber Ring |
| 16 |
420222550 |
WATER PUMP HOUSING - Call your local BRP dealership |
| 17 |
420241911 |
HEX. SCREW M6 X 25 - Call your local BRP dealership |
| 18 |
420650660 |
K GROOVED RING - Call your local BRP dealership |
| 19 |
420257140 |
Hydraulic Piston |
| 20 |
420650640 |
GASKET, HYDRAULIC COVER - Call your local BRP dealership |
| 21 |
420211950 |
HYDRAULIC COVER - Call your local BRP dealership |
| 22 |
420241911 |
HEX. SCREW M6 X 25 - Call your local BRP dealership |
| 23 |
420250080 |
OIL SEAL - Call your local BRP dealership |
| 24 |
420632170 |
Ball Bearing |
| 25 |
420247030 |
DISTANCE SLEEVE - Call your local BRP dealership |
| 26 |
420932885 |
NEEDLE PIN - Call your local BRP dealership |
| 27 |
420659190 |
PAWL - Call your local BRP dealership |
| 28 |
420251180 |
Cable Clamp |
| 29 |
420941126 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 30 |
420241751 |
Hex. Flange Screw M6 X 16 |
| 31 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership This part replaces 732600027. |
| 33 |
Not |
Available As Spare Part - Rotor With Sprag Clutch Ass'y |
| 34 |
205081644 |
SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership |
| 35 |
420659117 |
SPRAG CLUTCH - Call your local BRP dealership |
| 36 |
420659129 |
Clutch Sprag Housing This part replaces 420659220. |
| 37 |
420245875 |
SERRATED WASHER 22 MM - Call your local BRP dealership |
| 38 |
420242875 |
HEX. NUT M22 - Call your local BRP dealership |
| 39 |
420650940 |
SEALING RING - Call your local BRP dealership |
| 40 |
420222620 |
INLET FITTING - Call your local BRP dealership |
| 41 |
420222630 |
PROFILED TUBE - Call your local BRP dealership |
| 42 |
420951760 |
Clamp |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 45 |
413707000 |
Dow Corning 111, 150 g |
| 46 |
293550030 |
Grease, Super Lube |
| 47 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
| 49 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 50 |
270000138 |
Adaptor |
| 51 |
293300033 |
Gasket |
