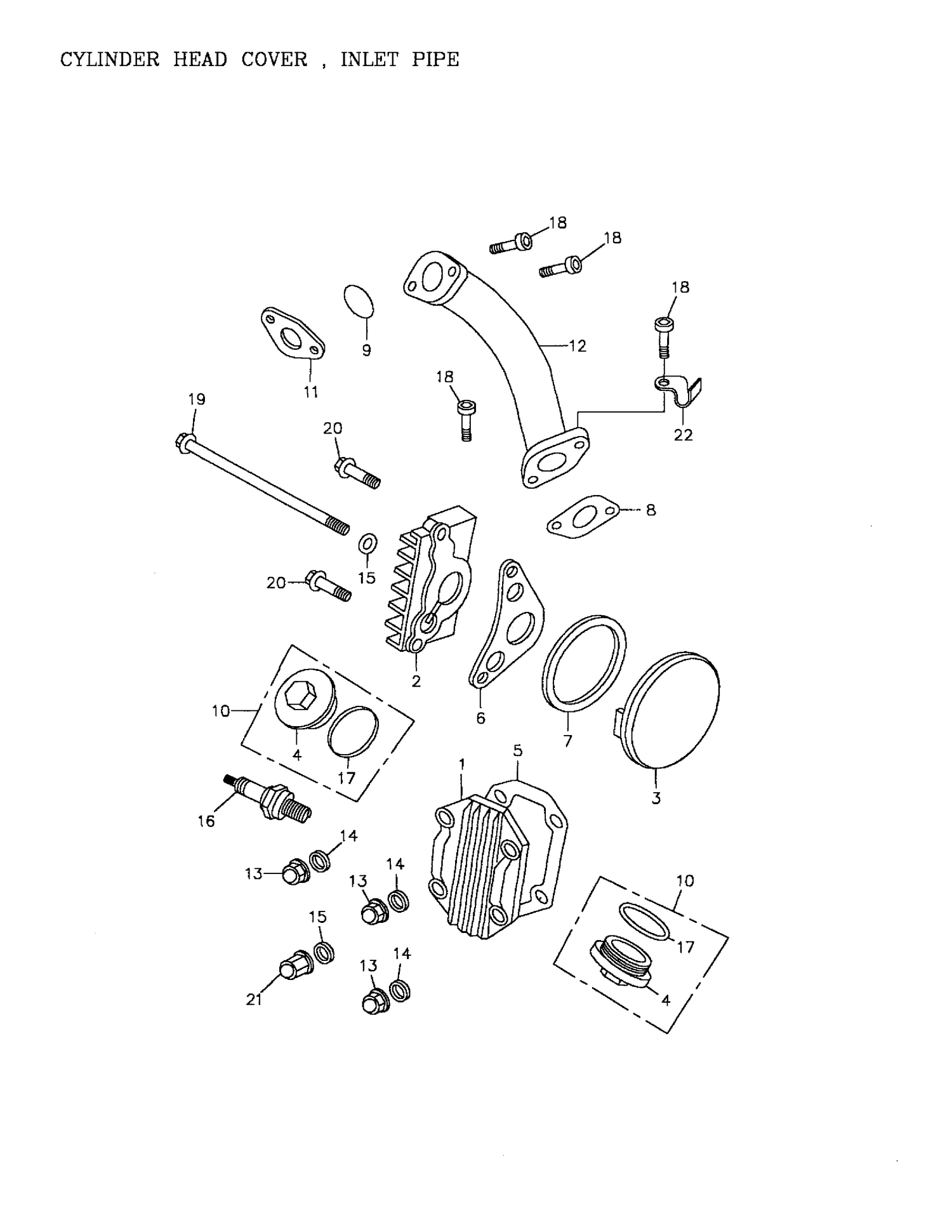

01- Cylinder Head Cover, Inlet Pipe
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A12310152000 | Cylinder Head Cover |
| 2 | A12331152000 | RH Cylinder Head Side Cover |
| 3 | A12341152000 | LH CYLINDER HEAD SIDE COVER - Call your local BRP dealership |
| 4 | A12362120000 | Tappet Adjusting Hole Cap |
| 5 | A12391152000 | CYLINDER HEAD COVER GASKET - Call your local BRP dealership |
| 6 | A12394152000 | RH CYLINDER HEAD SIDE COVER GASKET - Call your local BRP dealership |
| 7 | A12395152000 | LH CYLINDER HEAD SIDE COVER GASKET - Call your local BRP dealership |
| 8 | A16229152000 | INSULATOR GASKET - Call your local BRP dealership |
| 9 | A91325152000 | OIL RING - Call your local BRP dealership |
| 10 | A12361120000 | TAPPET ADJUSTING HOLE CAP ASS'Y - Call your local BRP dealership |
| 11 | A16211152000 | CARBURETOR INSULATOR - Call your local BRP dealership |
| 12 | A17100152000 | Intake Manifold |
| 13 | A9402106000 | Hex. Acorm Washer Face Nut M6 |
| 14 | A941010613020 | Plain Washer, 6 X 13 X 2 |
| 15 | A941030613020 | Plain Washer, 6 X 13 X 2 |
| 16 | 219703175 | Spark Plug NGK CR7HSA This part replaces 219700195. |
| 17 | A91330120000 | OIL RING, 30.8 MM - Call your local BRP dealership |
| 18 | A960000602010 | Hex. Washer Face Bolt M6 X 20 |
| 19 | A960000611010 | Hex. Flange Bolt M6 X 110 |
| 20 | 205062044 | Socket Head Screw M6 X 20 This part replaces A9100006020. |
| 21 | A9403206000 | Hex. Acorm Washer Face Nut M6 |
