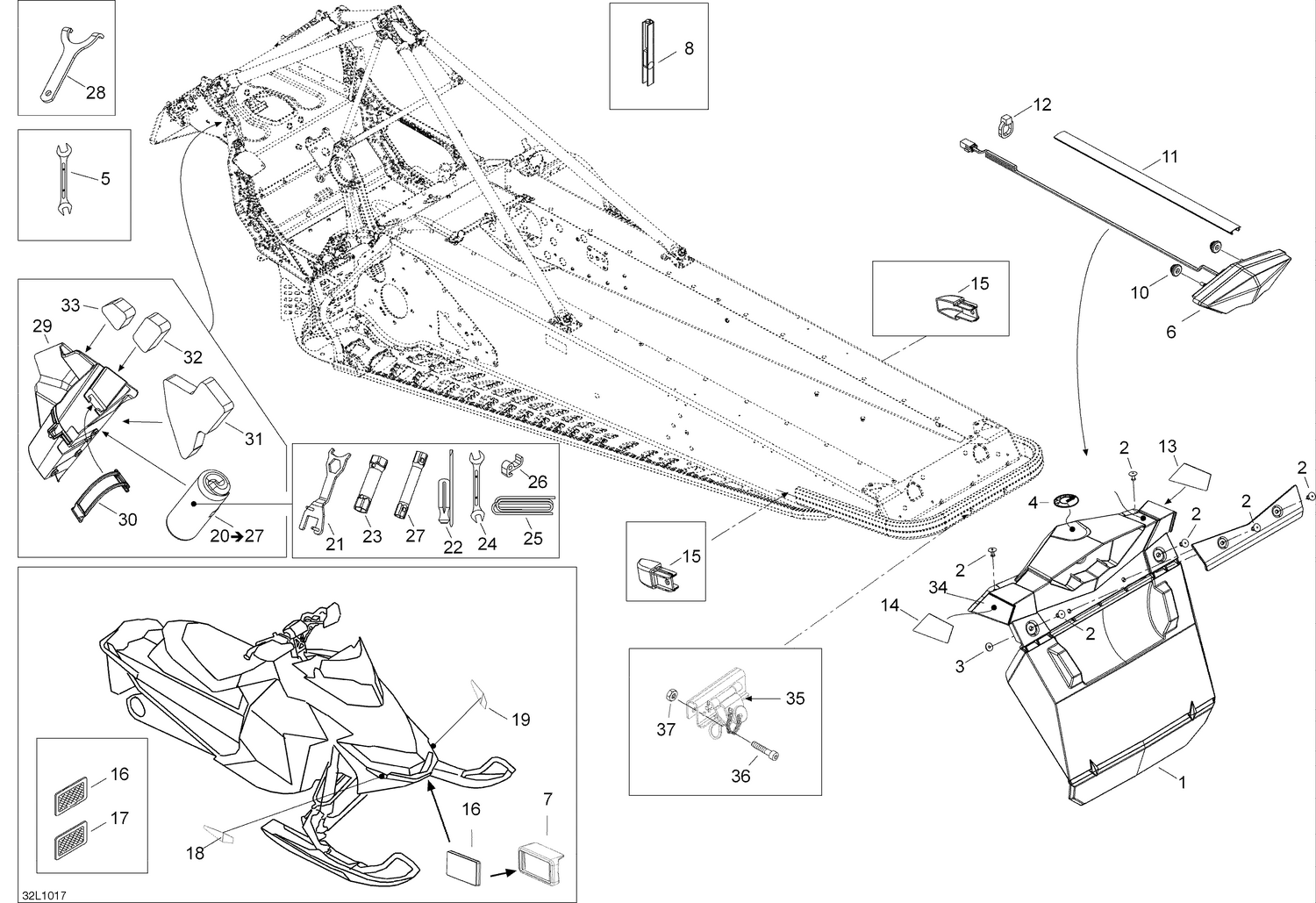

| Ref | Part Number | Description |
|---|
| 1 |
520000788 |
Snow Guard |
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
517124300 |
Washer |
| 4 |
516008738 |
Logo 48mm "BRP" This part replaces 219902468. |
| 5 |
34017 |
Fork Wrench 17/19mm |
| 6 |
520000955 |
REAR LIGHT - Call your local BRP dealership |
| 7 |
520000871 |
Reflector Support |
| 8 |
529035501 |
Spacing Tool |
| 10 |
705014429 |
Stopper_Rubber This part replaces 705003666. |
| 11 |
520000829 |
Radiator Trim |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
520000716 |
RH Rear Reflector |
| 14 |
520000717 |
LH Rear Reflector |
| 15 |
520000711 |
RH Cap |
| 15 |
520000712 |
LH Cap |
| 16 |
21118 |
Reflector (Bright) |
| 17 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 18 |
520000718 |
RH Front Reflector |
| 19 |
520000719 |
LH Front Reflector |
| 20 |
529000065 |
Tool Kit This part replaces 529000050. |
| 21 |
520000721 |
WRENCH - Call your local BRP dealership |
| 22 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Socket Wrench 21/26 mm |
| 24 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 25 |
412500200 |
Starter Rope, Meter |
| 26 |
529000060 |
Starter Grip This part replaces 529019400. |
| 27 |
Not |
Available As Spare Part - Socket Wrench 16/18 mm |
| 28 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 29 |
520000842 |
Tool Kit Rack |
| 30 |
520000528 |
Latch |
| 31 |
520001059 |
Foam This part replaces 520000743. |
| 32 |
520001061 |
Foam This part replaces 520000753. |
| 33 |
520001062 |
Foam This part replaces 520000754. |
| 34 |
511000583 |
Light cover |
| 35 |
511000529 |
Hitch assy |
| 36 |
205484546 |
Socket Head Screw M8 X 45 |
