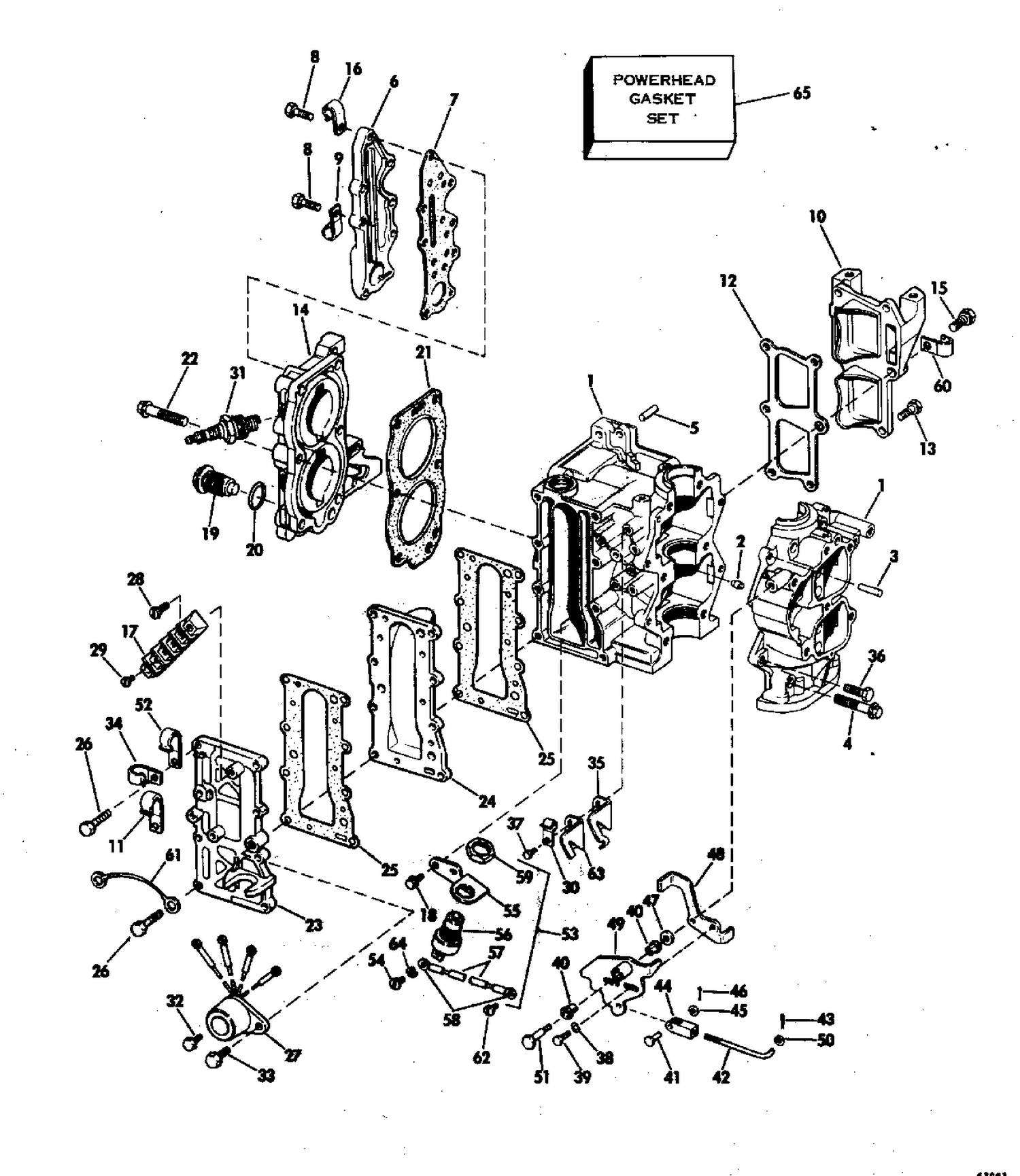

| Ref | Part Number | Description |
|---|
| 1 |
0386460 |
CYLINDER AND CRANKCASE ASSEMBLY |
| 6 |
0318918 |
WATER COVER, Cylinder head |
| 6 |
0329919 |
WATER COVER, Cylinder head This part replaces 0321386. |
| 7 |
0318917 |
GASKET, Water cover |
| 7 |
0329920 |
GASKET, Water cover This part replaces 0321387. |
| 8 |
0306409 |
VIS, collecteur vers carter-moteur |
| 9 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 10 |
0319350 |
BY-PASS COVER |
| 10 |
0336637 |
BYPASS COVER This part replaces 0318928. |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 12 |
0319332 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0321388 |
CYLINDER HEAD |
| 14 |
0387543 |
CYL. HEAD & COVER ASSY. (Includes items 6 AN D 7) |
| 15 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 15 |
0306322 |
BOLT, Water pump |
| 16 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 17 |
0511271 |
TERMINAL BLOCK |
| 18 |
0315287 |
SCREW |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0310058 |
GASKET, Thermostat |
| 21 |
0330818 |
GASKET, Cylinder head This part replaces 0320533. |
| 23 |
0321554 |
EXHAUST COVER, Outer |
| 24 |
0318926 |
EXHAUST COVER, Inner |
| 25 |
0318925 |
GASKET, Exhaust cover |
| 26 |
0303398 |
VIS, support This part replaces 0302030. |
| 27 |
0581778 |
REDRESSEUR This part replaces 0581366. |
| 29 |
0315003 |
SCREW, Teminal to terinmal block |
| 31 |
0386035 |
SPARK PLUG, Cchampion L7J |
| 31 |
0387694 |
SPARK PLUG, Champion UL81J |
| 34 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 35 |
0319414 |
DETENT, Shift hook |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0315287 |
SCREW |
| 39 |
0319574 |
SCREW, Lever to stop |
| 41 |
0319127 |
PIN, Clevis lever to lock lever |
| 42 |
0319066 |
LINK, Shift lever to lock lever |
| 44 |
0318955 |
CLEVIS, Link to bellcrank |
| 47 |
0306407 |
LOCCKWASHER,Cover latch |
| 48 |
0319413 |
STOP, Shift lock |
| 49 |
0387257 |
LEVER & HUB ASSY., Shift lock |
| 51 |
0319415 |
SCREW |
| 52 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 53 |
0581293 |
BRACKET & SWITCH, Netural start |
| 56 |
0395699 |
STARTER SWITCH This part replaces 0386457. |
| 60 |
0314254 |
CLAMP This part replaces 0310620. |
| 61 |
0376349 |
FIL, masse |
| 63 |
0320890 |
SUPPORT, Detent |
| 65 |
0394546 |
POWERHEAD GASKET SET This part replaces 0386699. |
