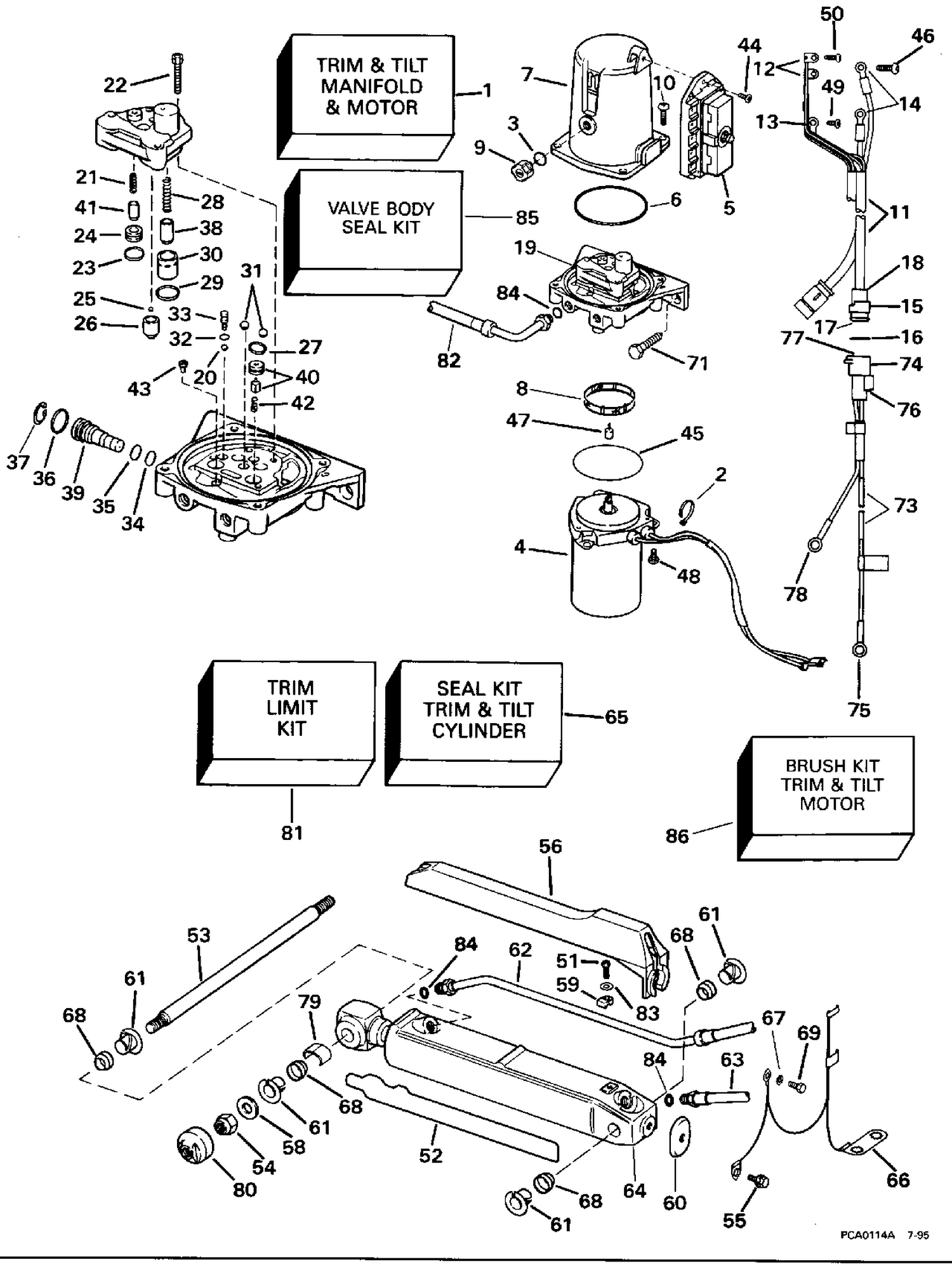

| Ref | Part Number | Description |
|---|
| 1 |
3860879 |
Manifold & Pump Ay This part replaces 3854030. |
| 2 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 4 |
0986280 |
MOTOR ASSY This part replaces 3853945. |
| 5 |
0986281 |
RELAY & CIRCUIT BREAKER ASSY This part replaces 3853946. |
| 6 |
3852508 |
O-RING, Reservoir |
| 7 |
0986535 |
RESERVOIR This part replaces 3853989. |
| 8 |
0914045 |
FILTER This part replaces 3852974. |
| 9 |
0914047 |
PLUG, Fill hole This part replaces 3852976. |
| 10 |
0914048 |
SCREW, Reservoir to manifold This part replaces 3852977. |
| 11 |
3854038 |
CABLE ASSY |
| 12 |
0510827 |
RING TERMINAL This part replaces 3852228. |
| 19 |
3850033 |
Manf This part replaces 3853943. |
| 21 |
0911965 |
SPRING, Pump relief This part replaces 3852578. |
| 22 |
0914054 |
SCREW, Pump to manifold This part replaces 3852983. |
| 23 |
0914055 |
O-RING, Valve seat This part replaces 3852984. |
| 24 |
0914056 |
BALL, Piston, pump control This part replaces 3852985. |
| 25 |
0914057 |
BALL Piston, pump control This part replaces 3852986. |
| 26 |
0914058 |
PISTON pump control This part replaces 3852987. |
| 27 |
0914059 |
O-RING, Piston, pump control This part replaces 3852988. |
| 28 |
0914060 |
SPRING, Valve core, trim up This part replaces 3852989. |
| 29 |
0914061 |
O-RING, Valve seat, trim up This part replaces 3852990. |
| 30 |
0914062 |
SEAT, Valve core, trim up This part replaces 3852991. |
| 32 |
0914064 |
O-RING, Cap manual release This part replaces 3852992. |
| 33 |
0914065 |
CAP, Manual release This part replaces 3852993. |
| 34 |
0914066 |
BACK-UP RING, Manual release This part replaces 3852994. |
| 35 |
0914067 |
O-RING, Manual release This part replaces 3852995. |
| 36 |
0914068 |
O-RING, Manual release This part replaces 3852996. |
| 38 |
0983786 |
VALVE CORE & SEAL This part replaces 3853803. |
| 39 |
0986279 |
VALVE, Manual release This part replaces 3853944. |
| 40 |
0986283 |
CHECK VALVE ASSY This part replaces 3853947. |
| 41 |
0986284 |
VALVE CORE & SEAL ASSY This part replaces 3853948. |
| 42 |
0914046 |
SPRING, Check valve This part replaces 3852975. |
| 43 |
0914712 |
FILTER, Oil This part replaces 3853313. |
| 44 |
0914049 |
SCREW, Motor to manifold This part replaces 3852978. |
| 46 |
0914052 |
SCREW, Terminal This part replaces 3852981. |
| 48 |
0914049 |
SCREW, Motor to manifold This part replaces 3852978. |
| 49 |
0914050 |
SCREW, Terminal This part replaces 3852979. |
| 50 |
0914051 |
SCREW, Terminal This part replaces 3852980. |
| 52 |
3853332 |
APPLIQUE, Tilt cylinder |
| 53 |
3853422 |
PIVOT PIN, Tilt cylinder |
| 54 |
3853329 |
LOCKNUT, Transom plate This part replaces 3852648. |
| 55 |
3852568 |
SCREW, Cover |
| 56 |
3852378 |
COVER, Tilt cylinder This part replaces 3852572. |
| 58 |
3852573 |
WASHER, Pivot pin |
| 59 |
3852579 |
RETAINER, Oil line |
| 60 |
3852681 |
RETAINER, Cover |
| 61 |
3853423 |
BUSHING, Pivot pin |
| 62 |
3853923 |
OIL LINE, Starboard, down |
| 62 |
3853926 |
OIL LINE, Port, down |
| 63 |
3853924 |
OIL LINE, Starboard, up |
| 63 |
3853925 |
OIL LINE, Port, up |
| 64 |
0986951 |
CYLINDER ASSY. This part replaces 3854035. |
| 65 |
0985060 |
SEAL KIT This part replaces 3854247. |
| 66 |
3854048 |
GROUND STRAP |
| 67 |
0329241 |
RONDELLE This part replaces 3852193. |
| 68 |
3853424 |
GROMMET, Pivot pin |
| 71 |
3852581 |
LAG SCREW |
| 73 |
3854031 |
CABLE ASSY., Trim/tilt |
| 75 |
3852527 |
RING TERMINAL |
| 79 |
3853421 |
SPRING, Ground |
| 80 |
3852958 |
CAP, Pivot shaft |
| 81 |
0987142 |
TRIM LIMIT KIT |
| 82 |
3853921 |
OIL LINE, Pump to manifold, down |
| 82 |
3853922 |
OIL LINE, Pump to manifold, up |
| 85 |
3854397 |
SEAL KIT, Valve body |
| 3854248 |
3854248 |
SPACER, Tilt limit |
