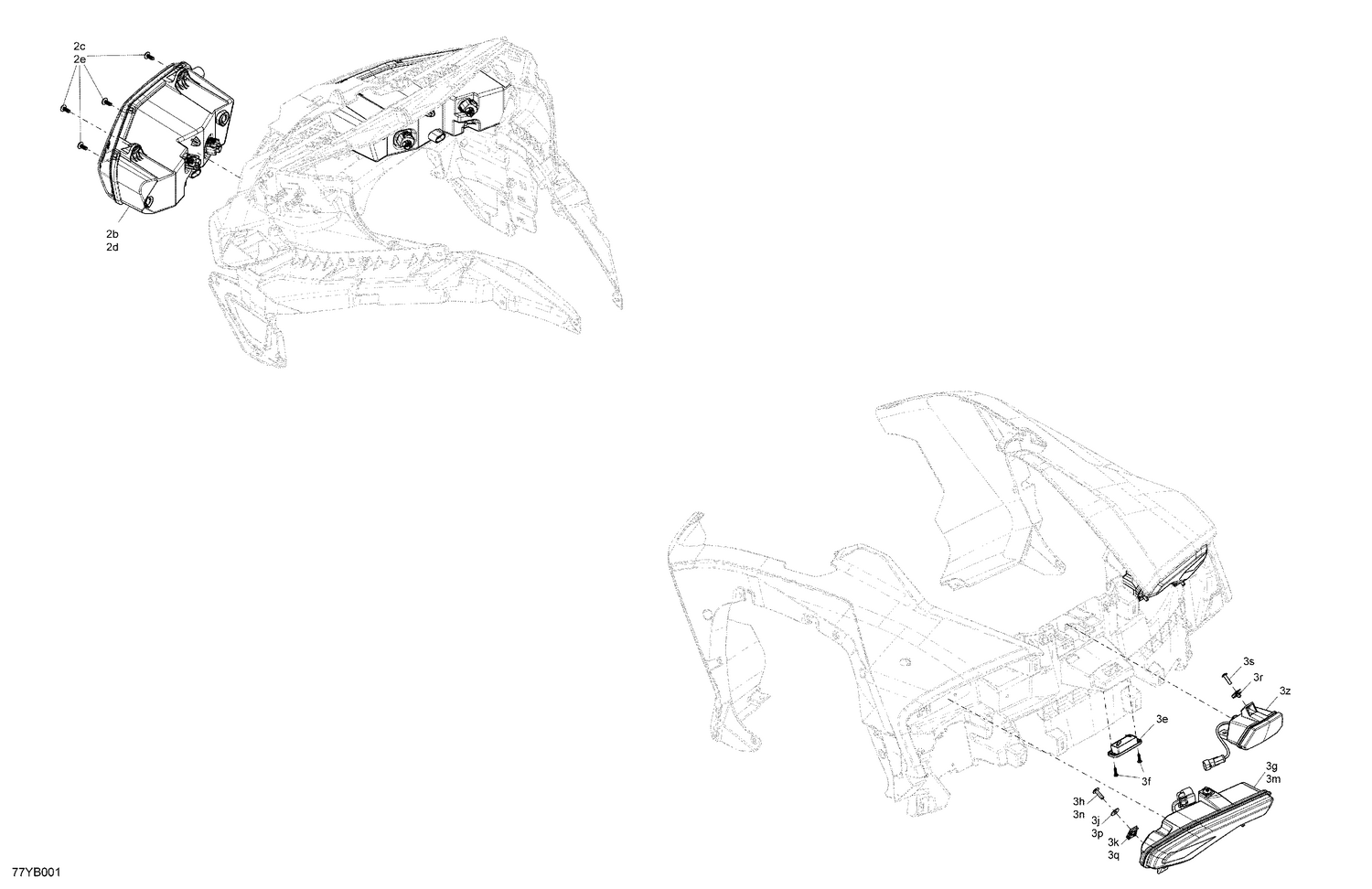

08- Electric - Vehicle Lighting
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 710006578 | LH Headlight |
| 2c | 250000546 | Oval Head Torx Screw K60 X 16 |
| 2d | 710006579 | RH Headlight |
| 2e | 250000546 | Oval Head Torx Screw K60 X 16 |
| 3e | 710005501 | License Light |
| 3f | 250001123 | Hex. Flange Screw K40 X 16 |
| 3g | 710007002 | LH Tail Light |
| 3h | 250000722 | Torx Screw M6 X 20 |
| 3j | 250200164 | Flat washer M6 |
| 3k | 250100208 | Panel Nut M6 X 1.0 |
| 3m | 710007004 | RH Tail Light |
| 3n | 250000722 | Torx Screw M6 X 20 |
| 3p | 250200164 | Flat washer M6 |
| 3q | 250100208 | Panel Nut M6 X 1.0 |
| 3r | 250000958 | Panel Nut M5 X 0.8 |
| 3s | 250000715 | Torx Truss Screw M5 X 20 |
| 3z | 710007005 | Back-Up Light |
