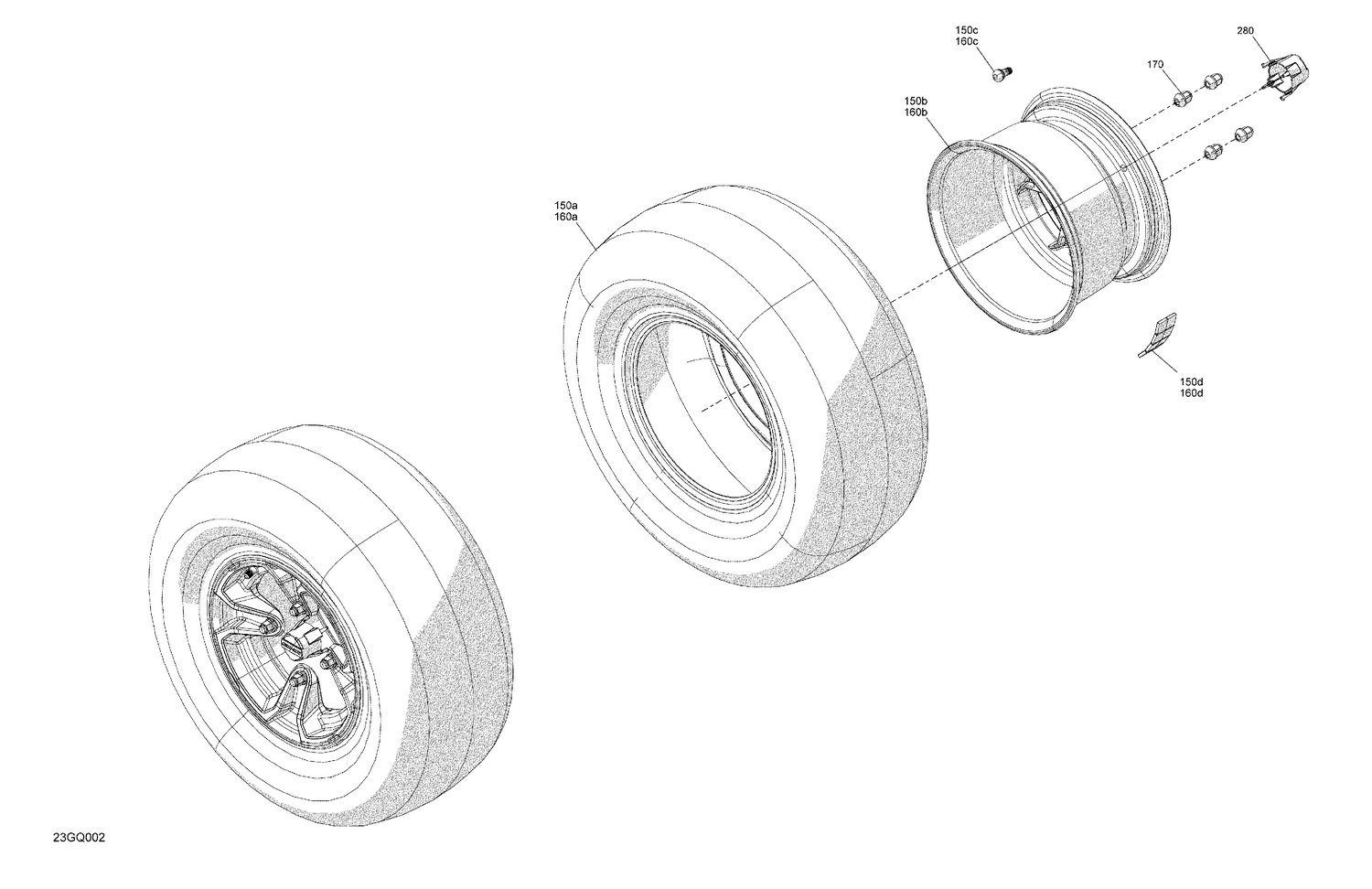

04- Drive - Rear Wheels - XT

04- Drive - Rear Wheels - XT

Parts (7)

RefPart NumberDescription
150a 705502626 Rear Tire
150b 705502034 Deep Black, Rim R12 X 7,5
150c 705400193 Rim Valve With Cap
160a 705502626 Rear Tire
160b 705502034 Deep Black, Rim R12 X 7,5
160c 705400193 Rim Valve With Cap
170 250100184 Black, Wheel Nut M10 X 1.25
