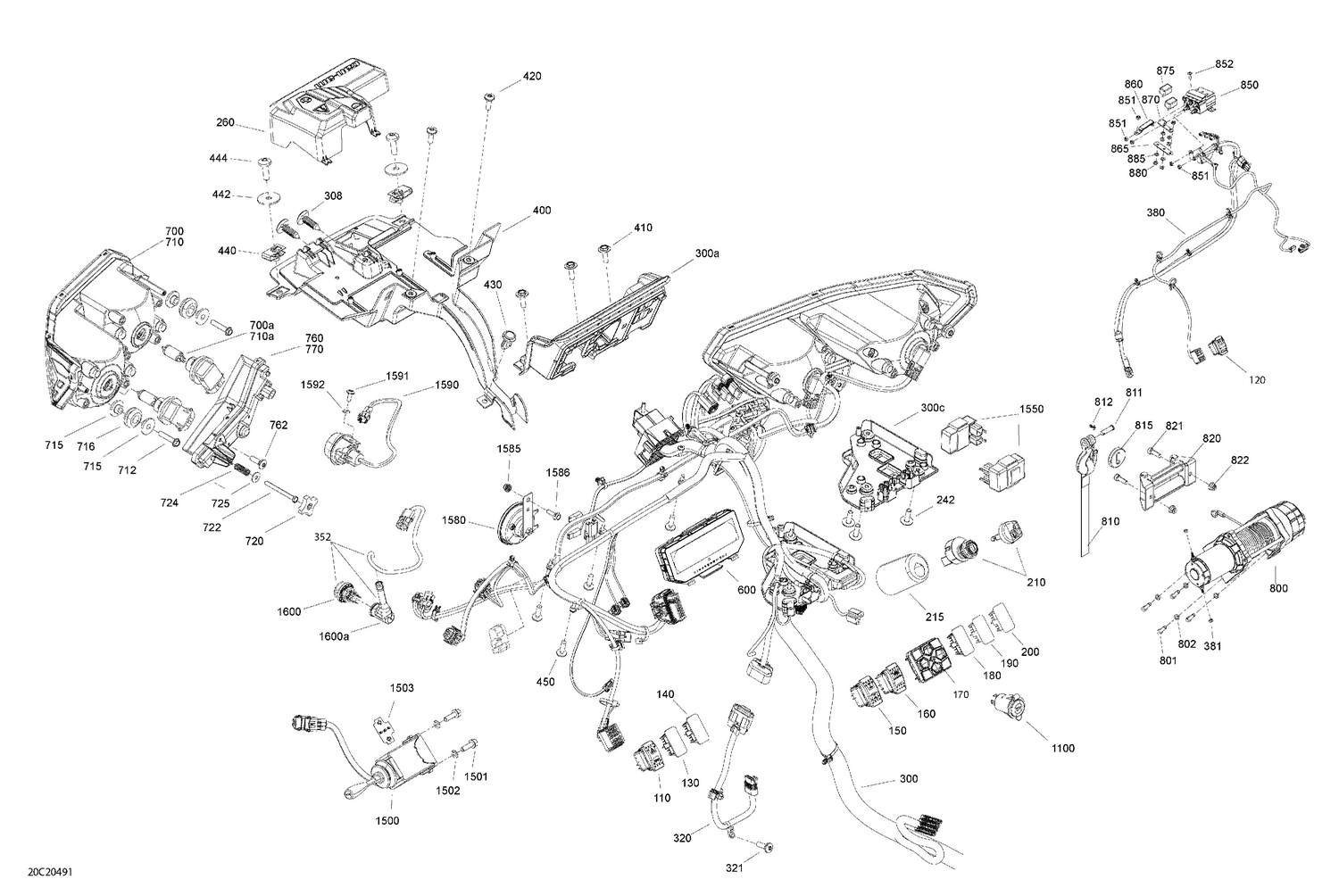

10- Electric - System - Front Section
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 710006107 | Hazard Lights Switch |
| 120 | 710002052 | Switch Winch |
| 130 | 710007173 | Plug Carling This part replaces 710001999. |
| 140 | 710007173 | Plug Carling This part replaces 710001999. |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 170 | 710006650 | Multifonction Switch |
| 180 | 710007173 | Plug Carling This part replaces 710001999. |
| 190 | 710007173 | Plug Carling This part replaces 710001999. |
| 200 | 710007173 | Plug Carling This part replaces 710001999. |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 242 | 250000959 | Screw PT Type K-50 X 16 |
| 260 | 710006707 | Junction Block Cover |
| 300a | 710006640 | Fusebox Support |
| 300c | 710006706 | Connector Support |
| 308 | 293730006 | Black, Dart |
| 320 | 710006837 | Throttle Pedal Harness |
| 321 | 250000720 | Torx Screw K50 X 16 |
| 352 | 710005676 | Position Light Harness |
| 380 | 710006653 | Winch Wiring Harness |
| 381 | 232561434 | Elastic Stop Nut M6 |
| 400 | 710006649 | Wiring Harness Support |
| 410 | 250000959 | Screw PT Type K-50 X 16 |
| 420 | 250000720 | Torx Screw K50 X 16 |
| 430 | 293150230 | Tuflok Plastic Rivet |
| 440 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 442 | 250200029 | Washer M6 |
| 444 | 250000712 | Torx Screw M6 X 20 |
| 450 | 250000720 | Torx Screw K50 X 16 |
| 600 | 710006854 | Full Size Multifunction Gauge |
| 700 | 710008313 | LH Headlamp This part replaces 710005729. |
| 700a | 219800149 | Halogen Bulb H8 12V 35W |
| 700a | 715900653 | Halogen Bulb H8 12V 35W Blue |
| 710 | 710005730 | RH Beam Ass'y |
| 710a | 219800149 | Halogen Bulb H8 12V 35W |
| 710a | 715900653 | Halogen Bulb H8 12V 35W Blue |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 715 | 710004749 | Shoulder Bushing |
| 716 | 709000582 | Grommet This part replaces 293720053. |
| 720 | 572106600 | Handle |
| 722 | 250000718 | Hex. Screw K40 X 45 |
| 724 | 517168600 | Spring |
| 725 | 234042600 | Flat Washer 4 mm, Stainless |
| 760 | 710008973 | Deep Black, LH Front Headlight Trim This part replaces 705013593. |
| 762 | 250000720 | Torx Screw K50 X 16 |
| 770 | 710008974 | Deep Black, RH Front Headlight Trim This part replaces 705013595. |
| 800 | 710006993 | Electric Winch |
| 801 | 205083044 | Socket Head Screw M8 X 30 |
| 802 | 234181401 | Lock Washer 8 mm |
| 810 | 705014949 | Winch Hook Kit This part replaces 710007029. |
| 811 | 705014949 | Winch Hook Kit This part replaces 710006995. |
| 812 | 705014949 | Winch Hook Kit This part replaces 710006994. |
| 815 | 710007028 | Stopper |
| 820 | 710007082 | Fairlead Roller This part replaces 710006996. |
| 821 | 205003044 | Socket Screw M10 x 30 |
| 822 | 233201414 | Hex. Flange Elastic Nut M10 |
| 850 | 710006991 | Solenoid |
| 851 | 232561200 | Brass Elastic Stop Nut M6 |
| 852 | 250000720 | Torx Screw K50 X 16 |
| 860 | 710004772 | Power Bar |
| 865 | 710006401 | Copper Busbar |
| 870 | 710004873 | Power Bar |
| 875 | 710007039 | Circuit Breaker 50 Amp |
| 880 | 250100071 | Hex. Flange Nut M5 |
| 885 | 234161601 | Lock Washer Helical M6 |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1500 | 710001721 | Turn Signal |
| 1501 | 210251650 | Hex. Forming Screw M5 X 16 |
| 1502 | 234151401 | Lock Washer 5 mm |
| 1503 | 704902614 | Flasher Decal |
| 1550 | 710003239 | Flasher Unit |
| 1580 | 710004791 | Horn |
| 1585 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1586 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1590 | 710002964 | Flasher |
| 1591 | 250000721 | Torx Truss Screw M6 X 16 |
| 1592 | 234061410 | Flat Washer 6 mm |
| 1600 | 710001726 | Day Light |
| 1600a | 710003269 | Cap Protector |
