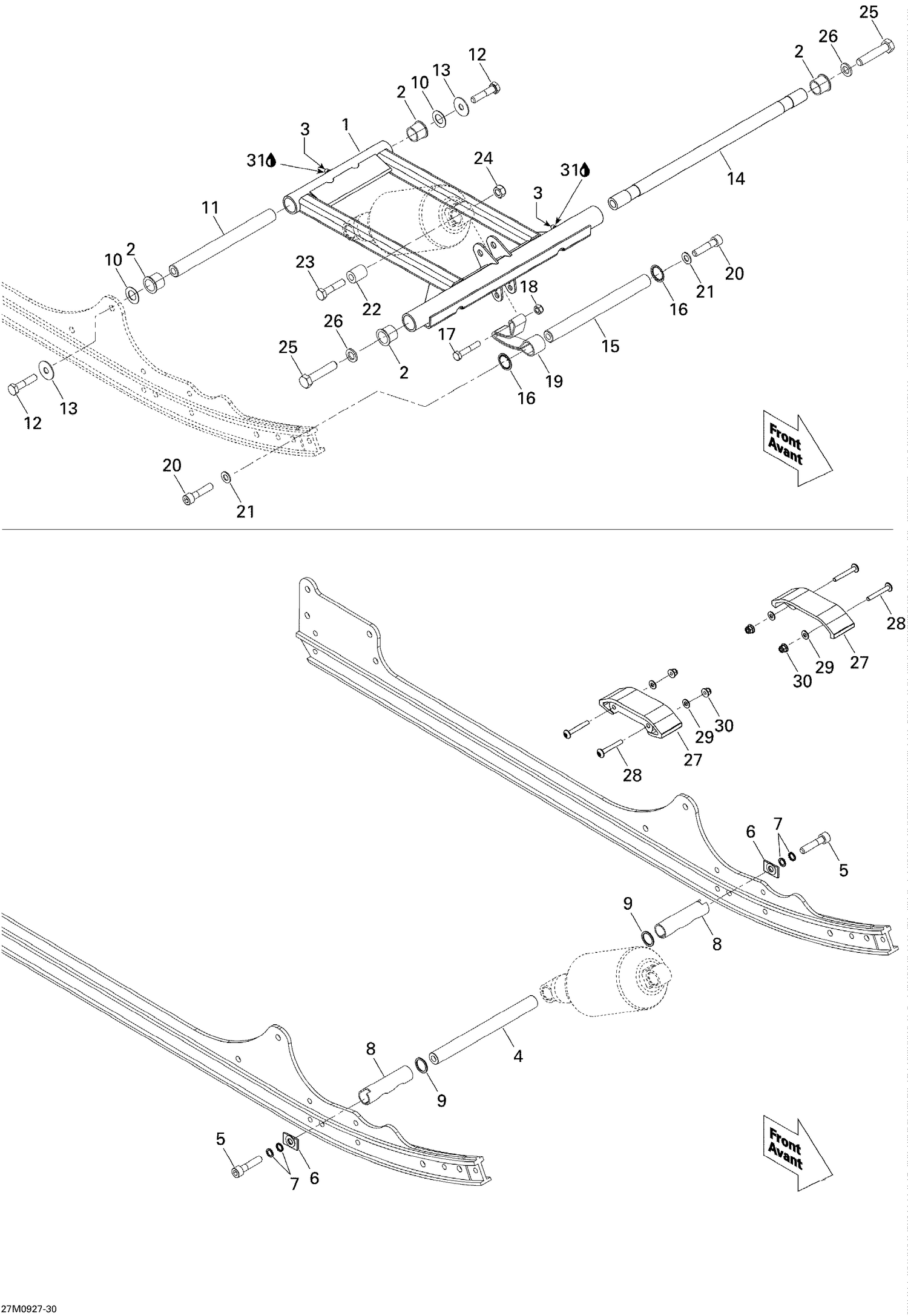

| Ref | Part Number | Description |
|---|
| 1 |
M5145588 |
FRONT ARM - Call your local BRP dealership |
| 2 |
31024 |
Cushion This part replaces M31024. |
| 3 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 4 |
M5347633 |
Shock Shaft |
| 5 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40536. |
| 6 |
5447940 |
Support plate This part replaces M5447940. |
| 7 |
20068 |
Lock washer This part replaces M20068. |
| 8 |
M5346649 |
SLEEVE - Call your local BRP dealership |
| 9 |
31013 |
Shim Ring This part replaces M31013. |
| 10 |
20116 |
Washer This part replaces M20116. |
| 11 |
M5346900 |
SHAFT - Call your local BRP dealership |
| 12 |
207004544 |
Hex. Screw M10 X 45 |
| 13 |
512056700 |
Lock Washer |
| 14 |
M5346135 |
SHAFT - Call your local BRP dealership |
| 15 |
M5343471 |
SHAFT - Call your local BRP dealership |
| 16 |
M4181158 |
Washer |
| 17 |
207084544 |
Hex. Screw M8 X 45 |
| 18 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 19 |
5447919 |
STOPPER STRAP - Call your local BRP dealership This part replaces M5447919. |
| 20 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40134. |
| 21 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 22 |
5446652 |
Bushing This part replaces M5446652. |
| 23 |
207004544 |
Hex. Screw M10 X 45 |
| 24 |
233601416 |
Elastic Locking Nut M10 |
| 25 |
207226044 |
HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 26 |
503189148 |
Hardened Washer |
| 27 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces 5343191. |
| 28 |
250000215 |
Torx Screw M6 X 45 |
| 29 |
224061121 |
Flat Washer |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
