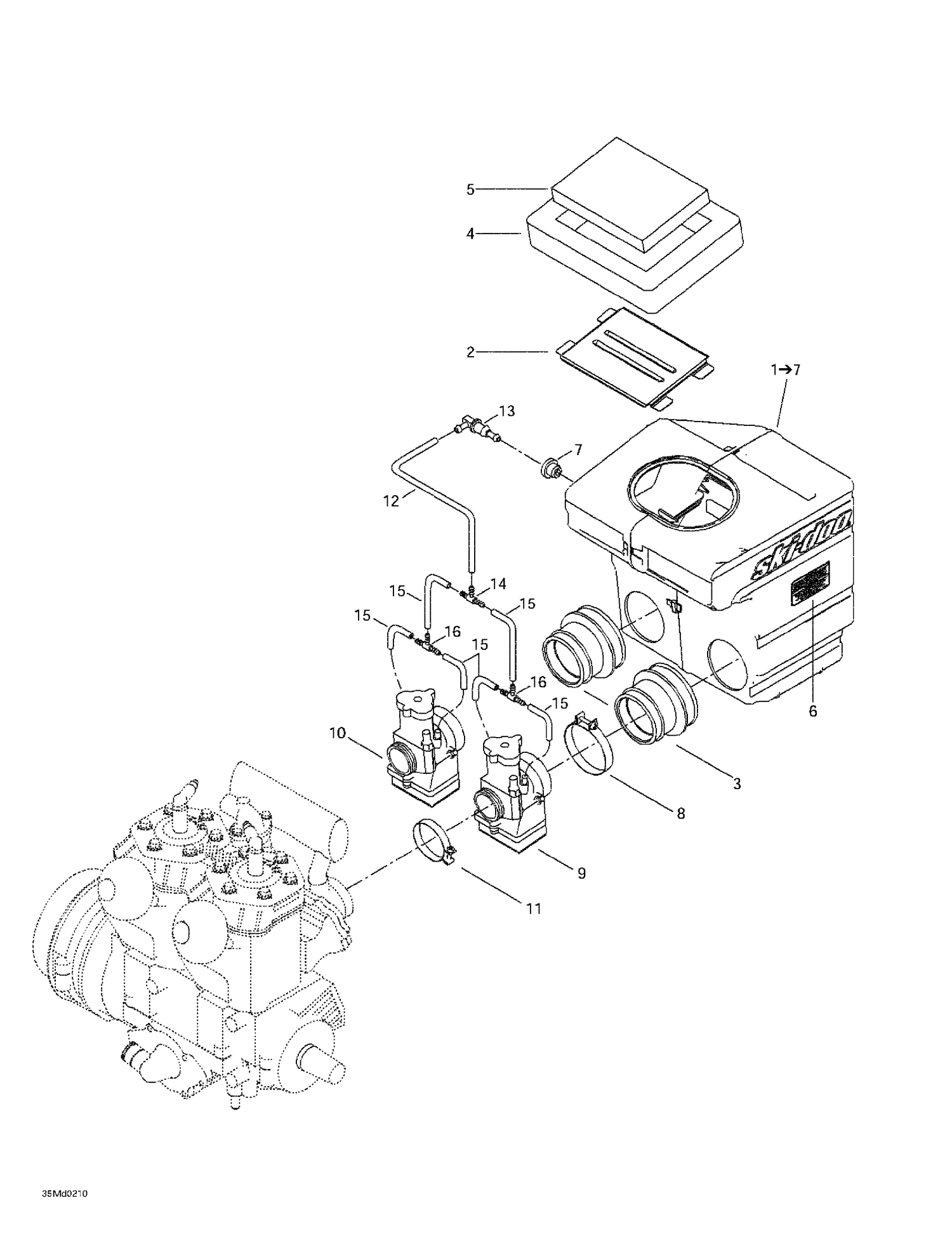

02- Air Intake System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000006 | Air Intake Adaptor (34 mm) |
| 4 | 508000099 | Lower Foam |
| 5 | 508000154 | Air Filter |
| 6 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 7 | 513032908 | Grommet |
| 8 | 508000007 | GEMI CLAMP - Call your local BRP dealership |
| 9 | 403138709 | Carburator TMX-34 (PTO) |
| 10 | 403138708 | Carburator TMX-34 (MAG) |
| 11 | 512059005 | GEMI CLAMP - Call your local BRP dealership |
| 12 | 219704410 | Polyurethane Hose 10000Mm Long |
| 13 | 414580600 | Elbow Male Connector |
| 14 | 572045500 | T-Fitting |
| 15 | 404161821 | HOSE - Call your local BRP dealership |
