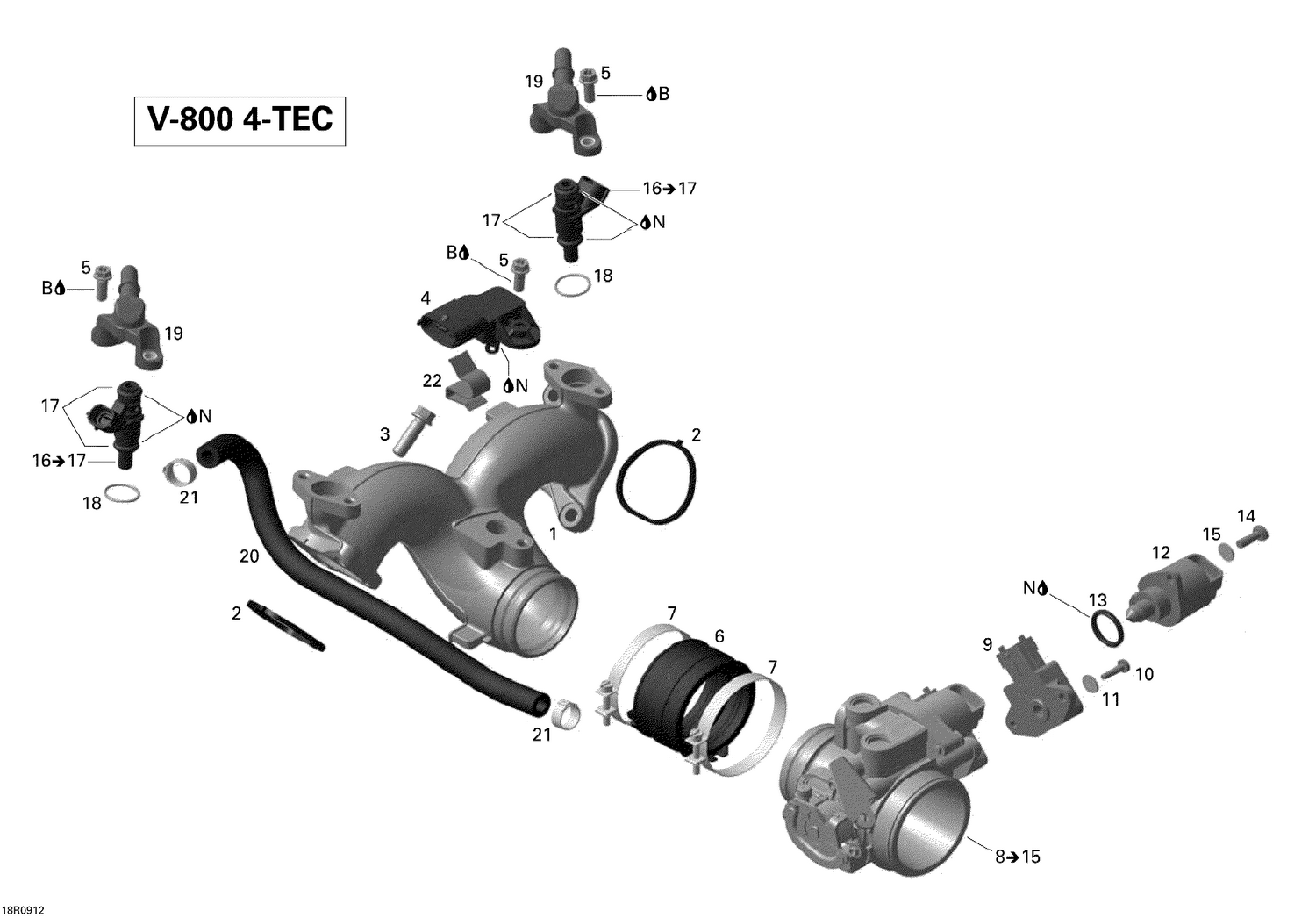

02- Air Intake Manifold And Throttle Body
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420667342 | AIR INTAKE MANIFOLD - Call your local BRP dealership |
| 2 | 420630642 | Gasket |
| 3 | 420440372 | Torx Flange Screw M8 X 25 |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 5 | 420641048 | Torx Flange Screw M6 X 16 |
| 6 | 420267480 | Intake Adaptor |
| 7 | 420251480 | Clamp |
| 9 | 420866120 | Position Sensor This part replaces 270000251. |
| 10 | 208641660 | Phillips Screw M4 X 16 |
| 11 | 234042600 | Flat Washer 4 mm, Stainless |
| 12 | 420665941 | Idle Air Control Valve This part replaces 420963057. |
| 13 | 420631780 | O-Ring |
| 14 | 420440911 | Binding Head Screw M5 X 16 |
| 15 | 420845710 | Snap Ring |
| 17 | 420631220 | O-Ring |
| 18 | 420631296 | O-Ring This part replaces 420631295. |
| 19 | 420874901 | Fuel Rail This part replaces 420874900. |
| 20 | 420460272 | FORMED HOSE - Call your local BRP dealership |
| 21 | 293650125 | Oetiker Clamp This part replaces 420853303. |
| 22 | 420651030 | WIRE CLAMP - Call your local BRP dealership |
