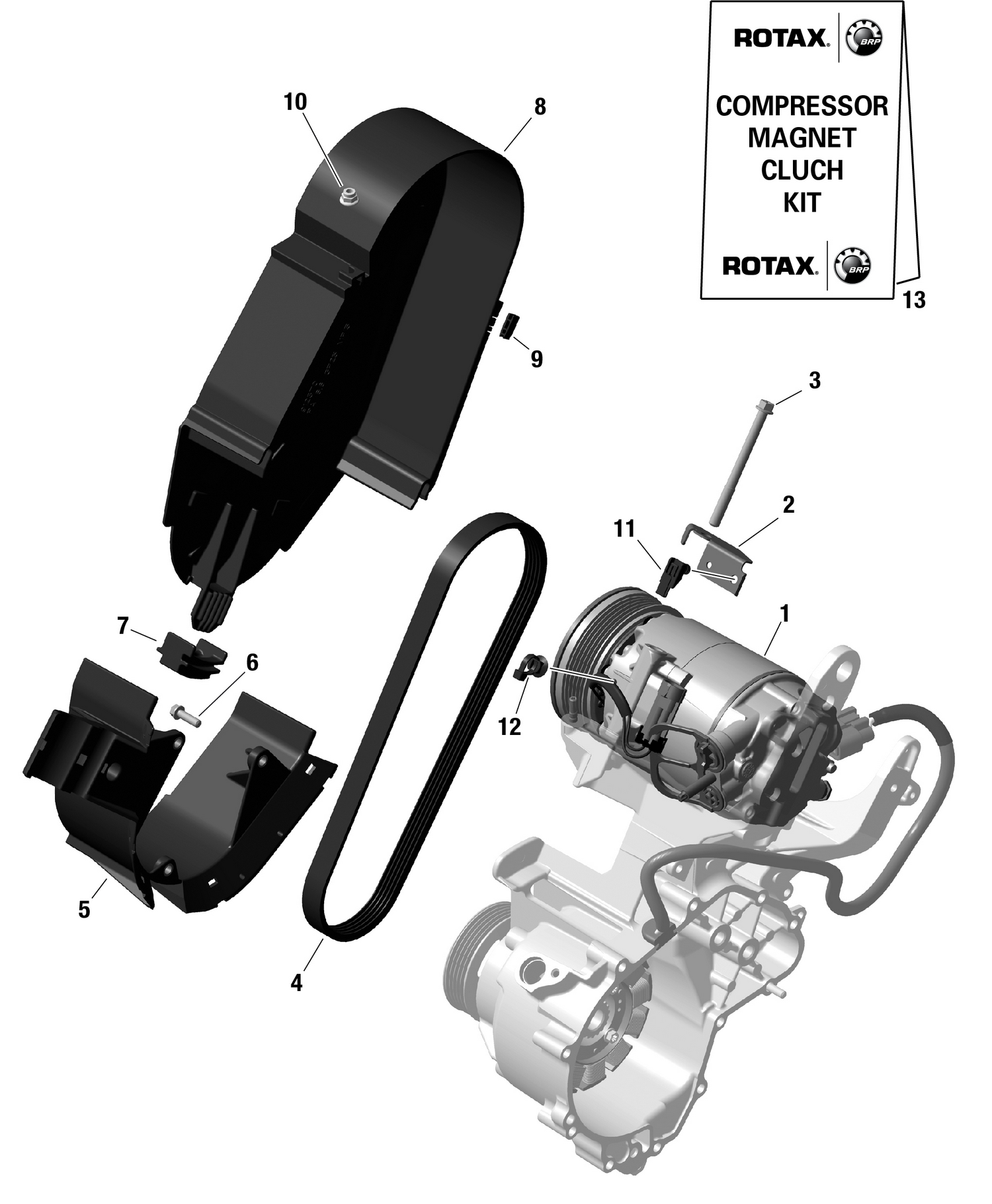

01- ROTAX - Air Conditionning
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889413 | Compressor |
| 2 | 420651950 | Bracket |
| 3 | 420440413 | Torx Flange Screw M8 X 90 |
| 4 | 422980810 | Belt This part replaces 420980810. |
| 5 | 420851543 | Bracket |
| 6 | 420440207 | Torx Flange Screw M6 X 20 |
| 7 | 420660442 | Rubber Grommet |
| 8 | 420912370 | Belt Cover |
| 9 | 420201472 | Silent Block |
| 10 | 420242371 | Lock Nut M6 |
| 11 | 420660741 | Connector Socket |
| 12 | 420951341 | Tie-Rap With Mount |
