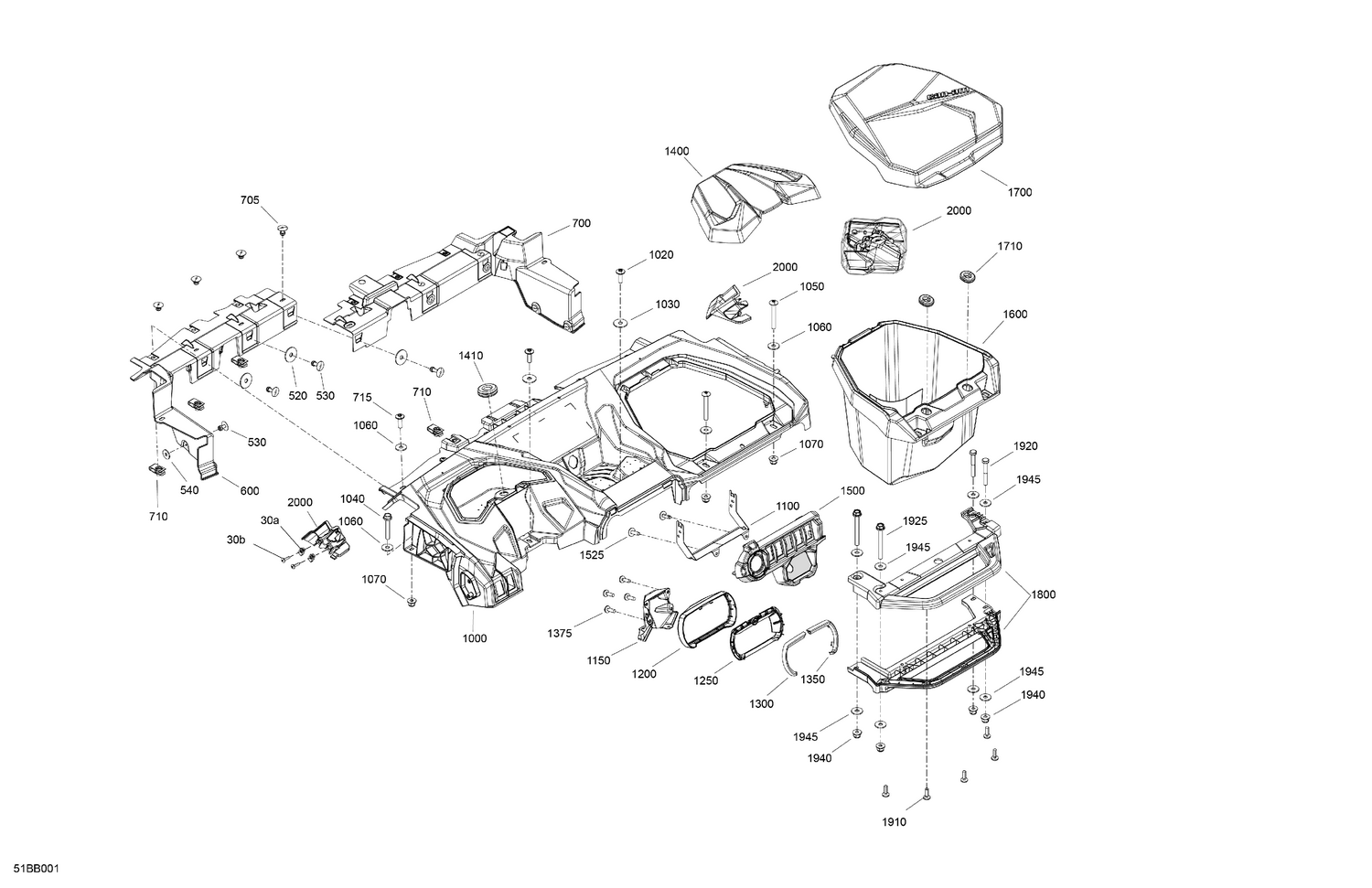

07- Cab Interior - Dashboard
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 250000958 | Panel Nut M5 X 0.8 |
| 30b | 250000724 | Torx Screw M5 X 20 |
| 520 | 250200044 | Flat Washer M6 X 25 |
| 530 | 293150100 | Pop Rivet 3/16" |
| 540 | 250200025 | Washer M5 |
| 600 | 707900513 | LH Upper Front Bulkhead |
| 700 | 707900514 | RH Upper Front Bulkhead |
| 705 | 293150100 | Pop Rivet 3/16" |
| 710 | 250100198 | Panel Nut M6 X 1.0 |
| 715 | 250000722 | Torx Screw M6 X 20 |
| 1000 | 715008530 | Dashboard Kit |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 1030 | 250200162 | Flat Washer M6.6 X 22 |
| 1040 | 207664044 | Hex. Flange Screw M6 X 40 |
| 1050 | 250000868 | Torx Truss M6 X 50 |
| 1060 | 234062670 | Stainless Steel Flat Washer |
| 1070 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1100 | 707900941 | Dash Support |
| 1150 | 709402140 | Cluster Support |
| 1200 | 709402092 | Rear Cluster Cap |
| 1250 | 709402742 | Gauge Trim |
| 1300 | 709402210 | Deep Black, LH Trim Gauge |
| 1350 | 709402211 | Deep Black, RH Trim Gauge |
| 1375 | 250000720 | Torx Screw K50 X 16 |
| 1400 | 707901114 | Storage Cover |
| 1410 | 517303756 | Grommet |
| 1500 | 707900524 | Switch Support |
| 1525 | 250000959 | Screw PT Type K-50 X 16 |
| 1600 | 715005011 | Glove Box |
| 1700 | 715005009 | Glove Box Cover |
| 1710 | 707900663 | Oblong Grommet |
| 1800 | 707900559 | Passenger Handle Bar Kit |
| 1910 | 250000720 | Torx Screw K50 X 16 |
| 1920 | 207064544 | Hex. Screw M6 X 45 |
| 1925 | 250000778 | Hex. Flange Screw M6 X 60 |
| 1940 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1945 | 234062670 | Stainless Steel Flat Washer |
