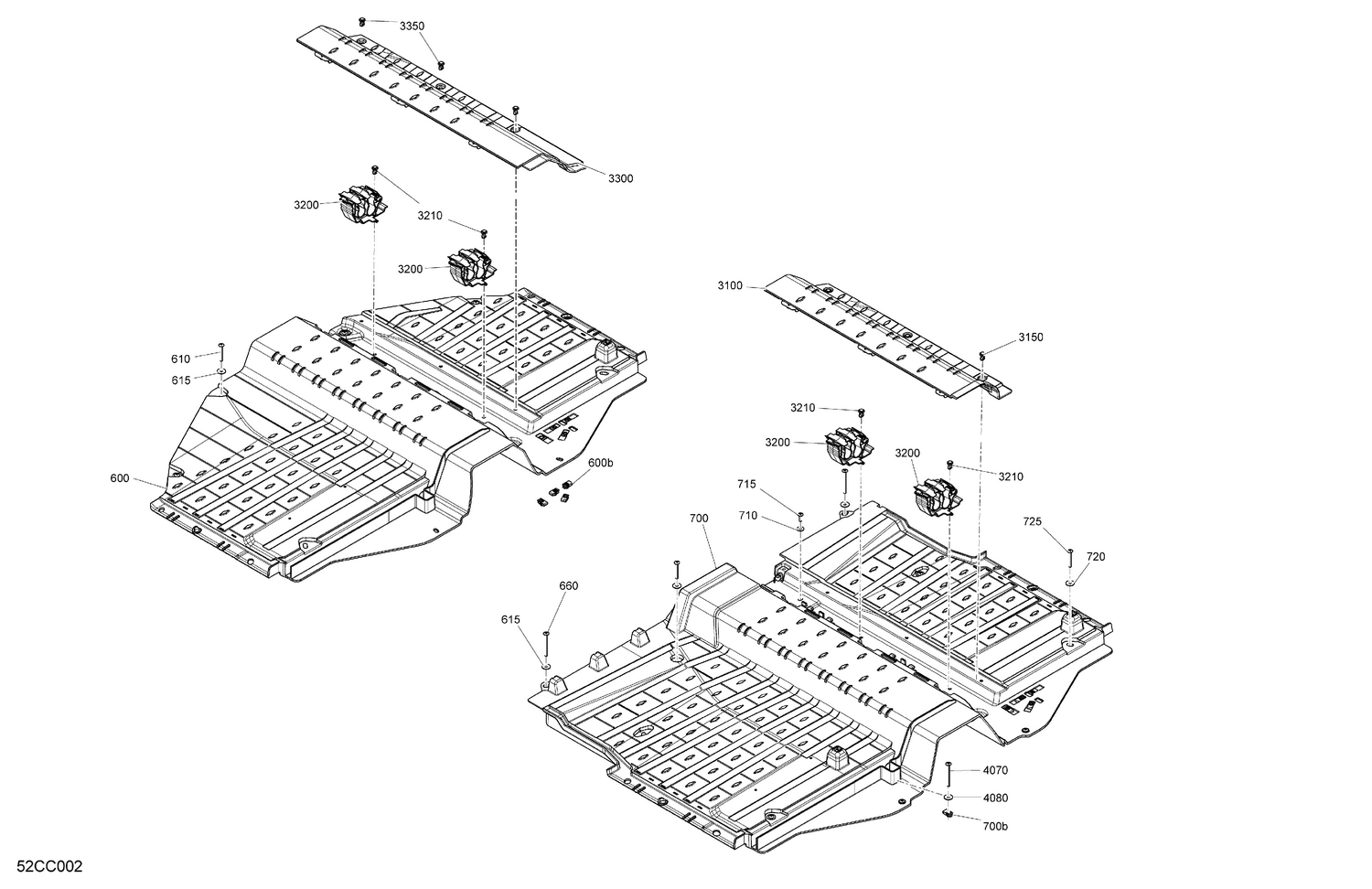

07- Cab Interior - Floor
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 600b | 250100198 | Panel Nut M6 X 1.0 |
| 610 | 250000868 | Torx Truss M6 X 50 |
| 615 | 250200162 | Flat Washer M6.6 X 22 |
| 660 | 250000954 | Torx Screw M6 X 70 |
| 700b | 250100198 | Panel Nut M6 X 1.0 |
| 710 | 250200162 | Flat Washer M6.6 X 22 |
| 715 | 250000722 | Torx Screw M6 X 20 |
| 720 | 250200162 | Flat Washer M6.6 X 22 |
| 725 | 250000868 | Torx Truss M6 X 50 |
| 3100 | 707900806 | Floor Panel This part replaces 707900877. |
| 3150 | 293150230 | Tuflok Plastic Rivet |
| 3200 | 707900325 | Hose Support |
| 3210 | 293150230 | Tuflok Plastic Rivet |
| 3300 | 707901141 | Floor Panel Ass'y |
| 3350 | 293150230 | Tuflok Plastic Rivet |
| 4070 | 250000954 | Torx Screw M6 X 70 |
