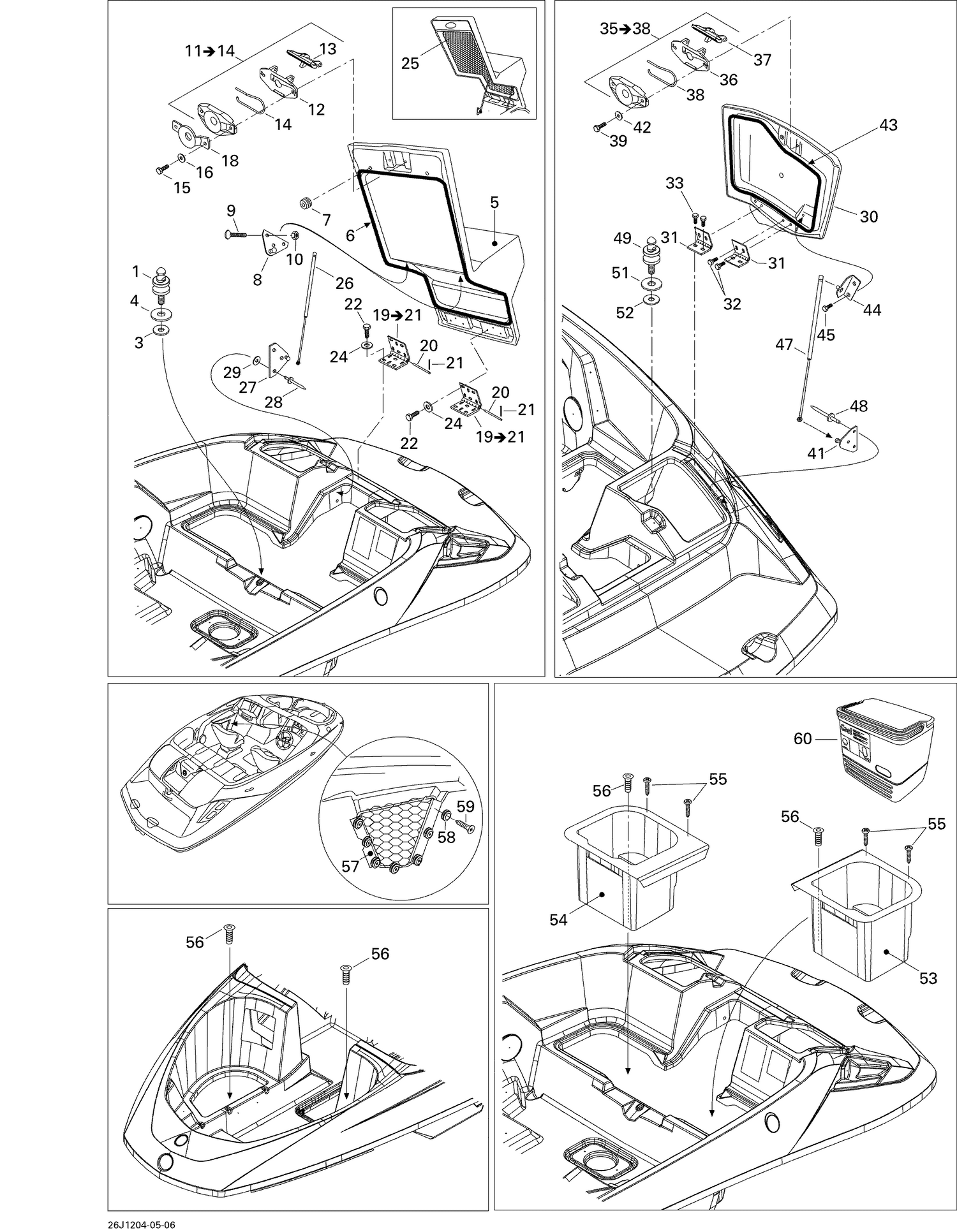

| Ref | Part Number | Description |
|---|
| 1 |
204130146 |
Latch Stud |
| 3 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 4 |
234002600 |
Flat Washer 10 mm, Stainless |
| 5 |
204073289 |
ENGINE COVER - Call your local BRP dealership |
| 6 |
219704365 |
Was 293200017 Neoprene Seal |
| 7 |
293720017 |
GROMMET - Call your local BRP dealership |
| 8 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 9 |
208553060 |
Phillips Screw M5 X 3 |
| 10 |
232551600 |
Hex. Elastic Nut M5 |
| 12 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 13 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 14 |
269700017 |
Latch Spring |
| 15 |
207162560 |
Hex. Screw M6 X 25 |
| 16 |
234061600 |
Stainless Flat Washer M6 |
| 18 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 20 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 21 |
204070205 |
Cotter Pin M2.5 X 12 |
| 22 |
207162560 |
Hex. Screw M6 X 25 |
| 24 |
234061600 |
Stainless Flat Washer M6 |
| 25 |
291003867 |
FOAM - ACOUSTIC - Call your local BRP dealership This part replaces 204073316. |
| 26 |
204071959 |
GAS SHOCK - Call your local BRP dealership |
| 27 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 28 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 29 |
234051600 |
Flat Washer M5, Stainless |
| 31 |
204612769 |
SUNDECK HINGE - Call your local BRP dealership |
| 32 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 33 |
207161660 |
Hex. Screw M6 X 16 |
| 36 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 37 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 38 |
269700017 |
Latch Spring |
| 39 |
207162560 |
Hex. Screw M6 X 25 |
| 42 |
234061600 |
Stainless Flat Washer M6 |
| 43 |
219704368 |
Seal Tray 1000Mm Long |
| 44 |
204073074 |
Shock Bracket |
| 45 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 47 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 48 |
293150043 |
Pop Rivet 3/16" |
| 49 |
204130146 |
Latch Stud |
| 51 |
234002600 |
Flat Washer 10 mm, Stainless |
| 52 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 55 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 56 |
204071783 |
DRAIN FITTING - Call your local BRP dealership |
| 57 |
291003522 |
STORAGE NET - Call your local BRP dealership |
| 58 |
204073221 |
Attachment Knob |
| 59 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
