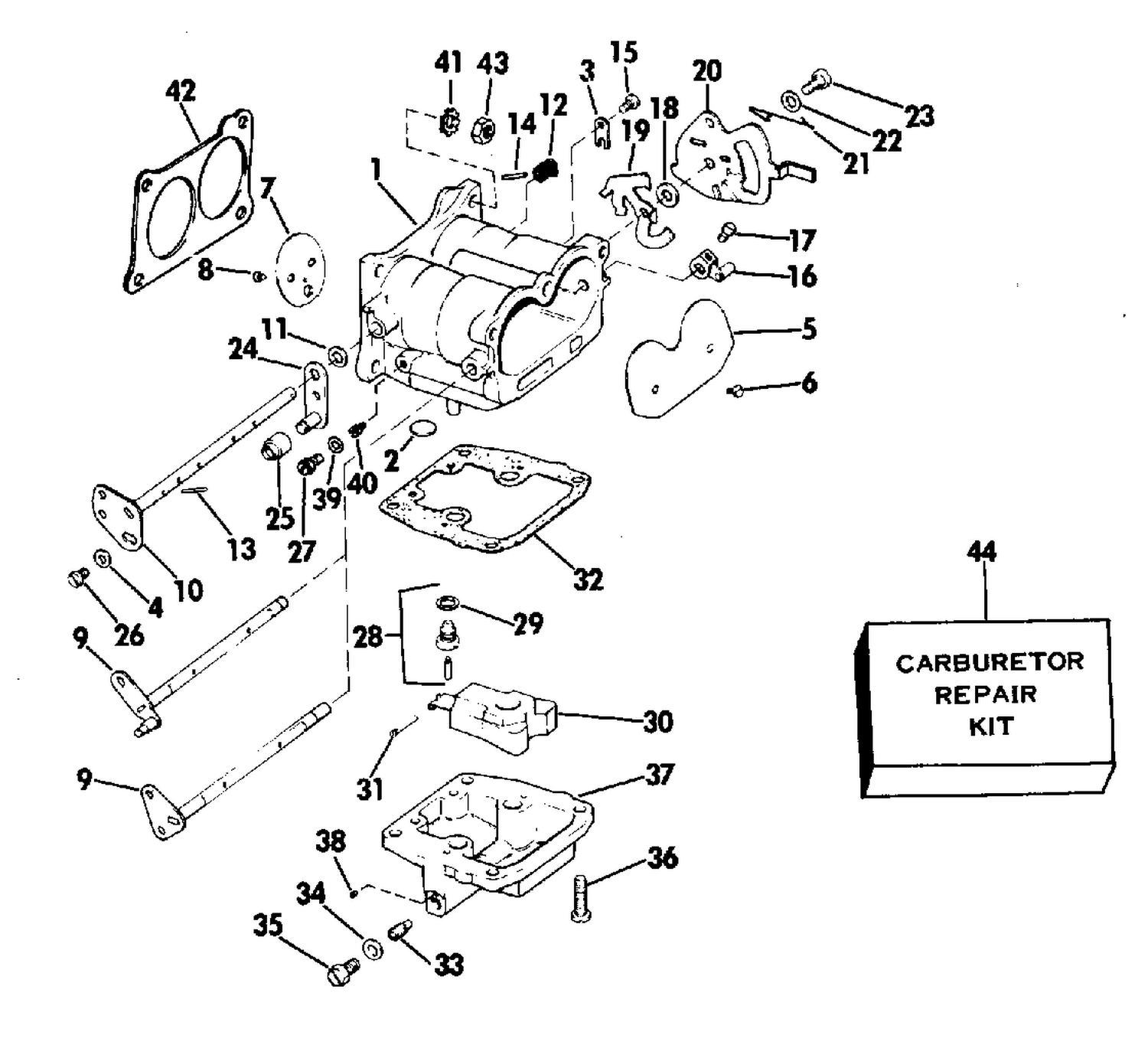

| Ref | Part Number | Description |
|---|
| 1 |
0388113 |
BODY ASSY., Upper, 115 HP |
| 1 |
0388114 |
BODY ASSY., Lower, 115 HP |
| 1 |
0388115 |
BODY ASSY., Upper, 85 HP |
| 1 |
0388116 |
BODY ASSY., Lower, 85 HP |
| 3 |
0314906 |
CLIP |
| 7 |
0322944 |
THROTTLE VALVE |
| 9 |
0387838 |
CHOKE SHAFT, 115 HP only |
| 20 |
0321728 |
LEVER AND HANDLE |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 24 |
0387839 |
LEVER & PIN ASSY |
| 27 |
0317501 |
SCREW PLUG, Orifice |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0317330 |
ORIFICE PLUG |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0384913 |
FLOAT CHAMBER ASSY |
| 40 |
0322776 |
ORIFICE 150 only |
| 42 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 43 |
0328742 |
NUT This part replaces 0306338. |
| 0387840 |
0387840 |
CARB ASSY., Upper, 85 HP |
| 0387841 |
0387841 |
CARB ASSY., Lower, 85 HP |
| 0387842 |
0387842 |
CARB ASSY,Upper,115hp |
| 0387843 |
0387843 |
CARB ASSY,Lower,115hp |
