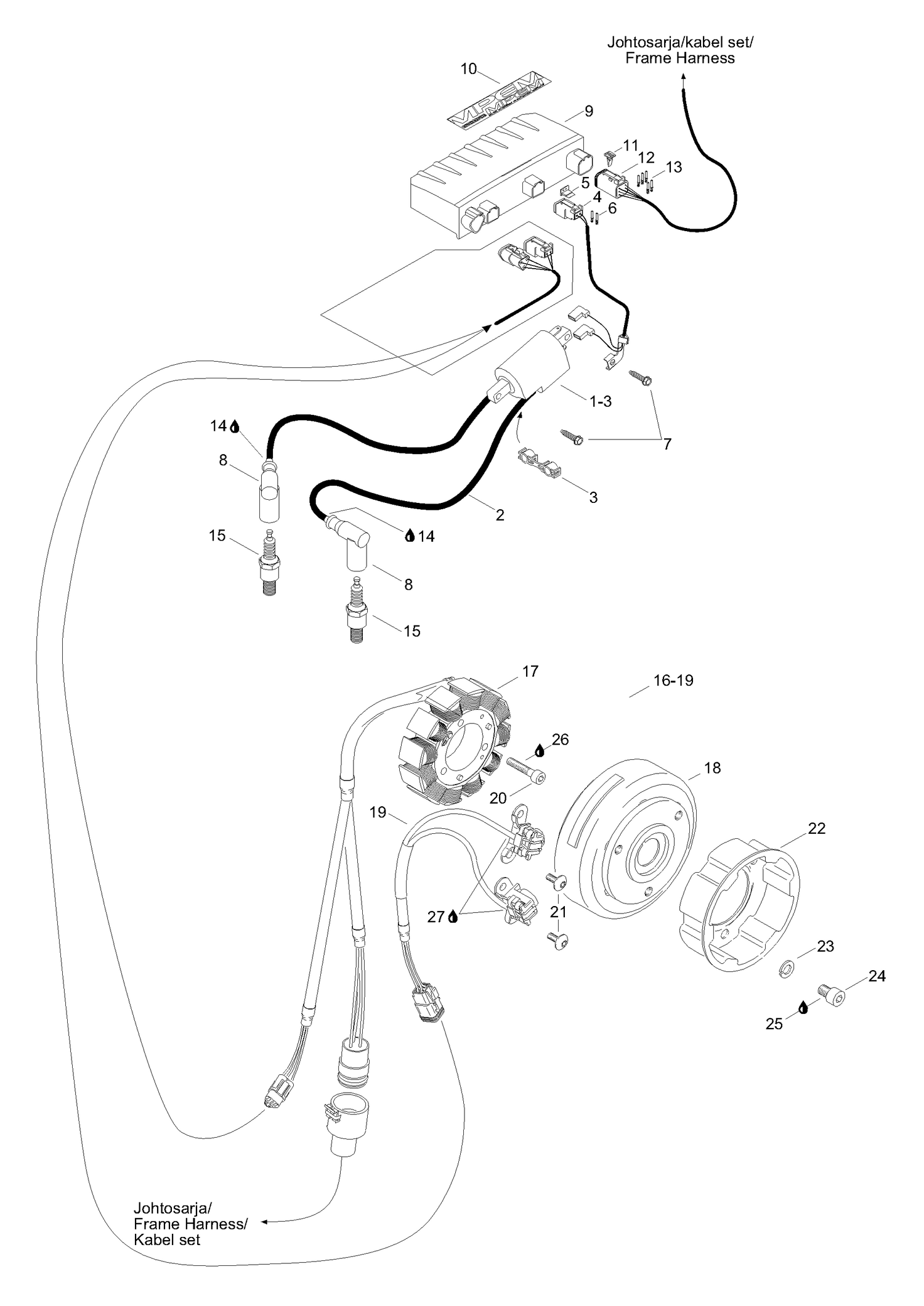

03- Fly Wheel
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278002198 | SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 3 | 410914600 | Plastic clip |
| 4 | 42610 | Female terminal housin |
| 5 | 42609 | Female lock (2 circuits) |
| 6 | 278000632 | Female terminal |
| 7 | 40375 | Screw |
| 8 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 9 | 512059450 | Calibration module |
| 10 | 516000245 | Label, MPEM |
| 11 | 515175705 | Female lock (6 circuits) |
| 12 | 515175673 | Female terminal housin |
| 13 | 278000632 | Female terminal |
| 15 | 512059533 | Spark Plug NGK BR9ECS-5 |
| 17 | 420888615 | Stator assy |
| 18 | 420888626 | Magneto flywheel |
| 19 | 420966802 | Pick up assy |
| 20 | 205063044 | Allen screw M6x30 This part replaces 420840880. |
| 21 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 22 | 420852590 | Starter cup This part replaces 420852419. |
| 23 | 20014 | Lock washer |
| 24 | 420841520 | Allenscrew M8x12 |
| 25 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 26 | 293800060 | Loctite 243, 10 ml This part replaces 420897651. |
