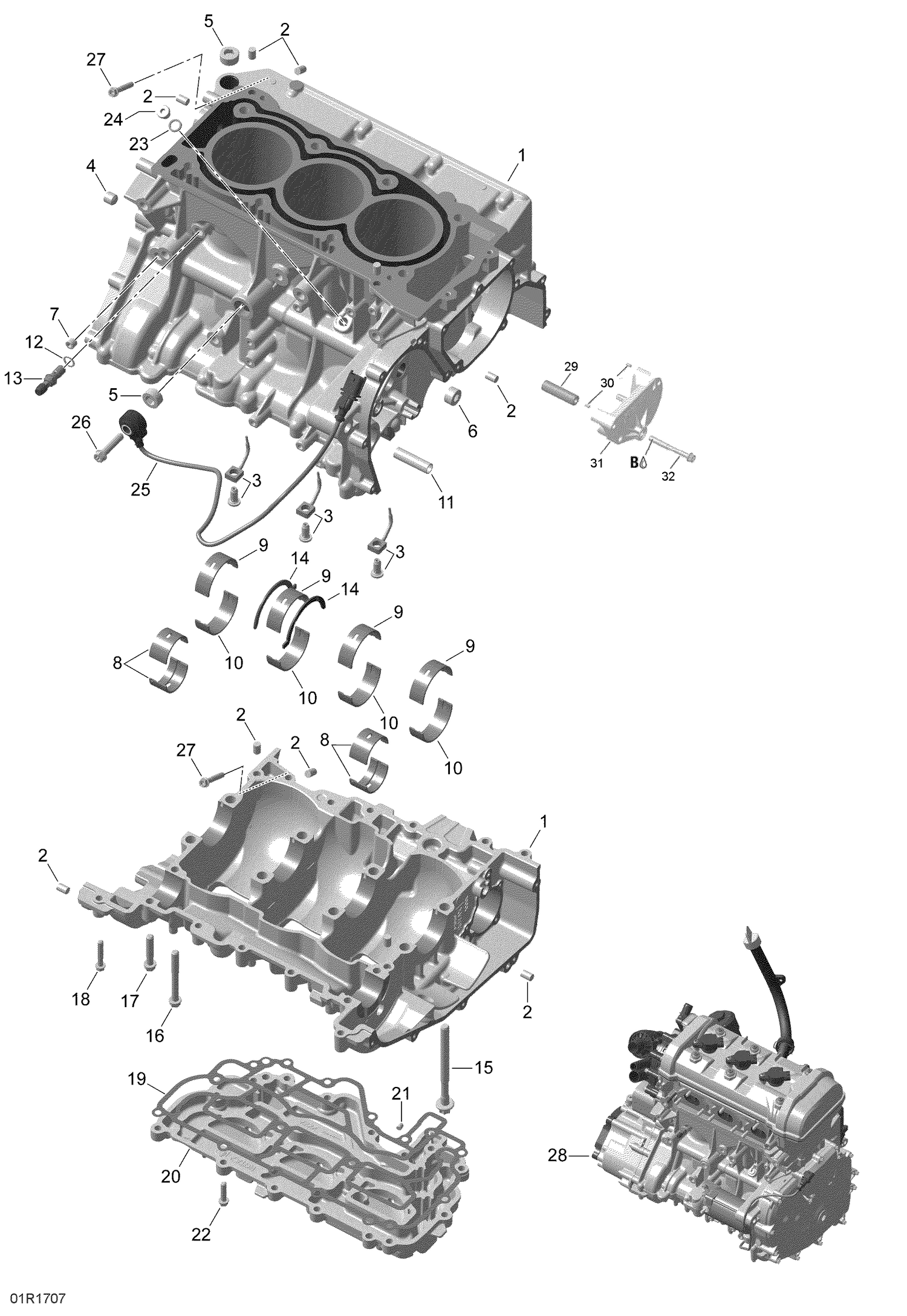

01- Crankcase - All Models
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420656973 | Oil Spraying Jet |
| 4 | 420840658 | Plug Screw M12x1,5 This part replaces 420840657. |
| 5 | 420641317 | Plug Screw M20 X 1.5 |
| 6 | 420441050 | Plug Screw M18 X 1.5 |
| 7 | 420641323 | Plug Screw M10 X 1 |
| 8 | 420933858 | Plain Bearing |
| 9 | 420233848 | Plain Bearing |
| 10 | 420233846 | Plain Bearing |
| 11 | 420647280 | SLEEVE - Call your local BRP dealership |
| 12 | 420230150 | Oil Seal |
| 13 | 420441630 | Bleeder Screw M10 X 1 |
| 14 | 420933475 | Half-Ring |
| 15 | 420940945 | Torx Flange Screw M9 X 113 |
| 16 | 420441085 | Torx Flange Screw M8 x 70 |
| 17 | 420440485 | Torx Flange Screw M8 x 40 |
| 18 | 420440274 | Torx Flange Screw M6 X 35 |
| 19 | 420250610 | Gasket |
| 20 | 420611742 | Oil Pan |
| 21 | 420941614 | Plug Screw M8 x 1 |
| 22 | 420440234 | Torx Flange Screw M6 X 25 |
| 23 | 420230150 | Oil Seal |
| 24 | 420641733 | Plug Screw M10 X 1 |
| 25 | 420664031 | Noise Sensor |
| 26 | 420641188 | Torx Flange Screw M8 X 35 |
| 27 | 420440274 | Torx Flange Screw M6 X 35 |
| 29 | Not | Available As Spare Part - Intermediate Gear Shaft |
| 30 | Not | Available As Spare Part - Needle Pin 4 X 8 |
| 31 | Not | Available As Spare Part - Bearing Bracket |
