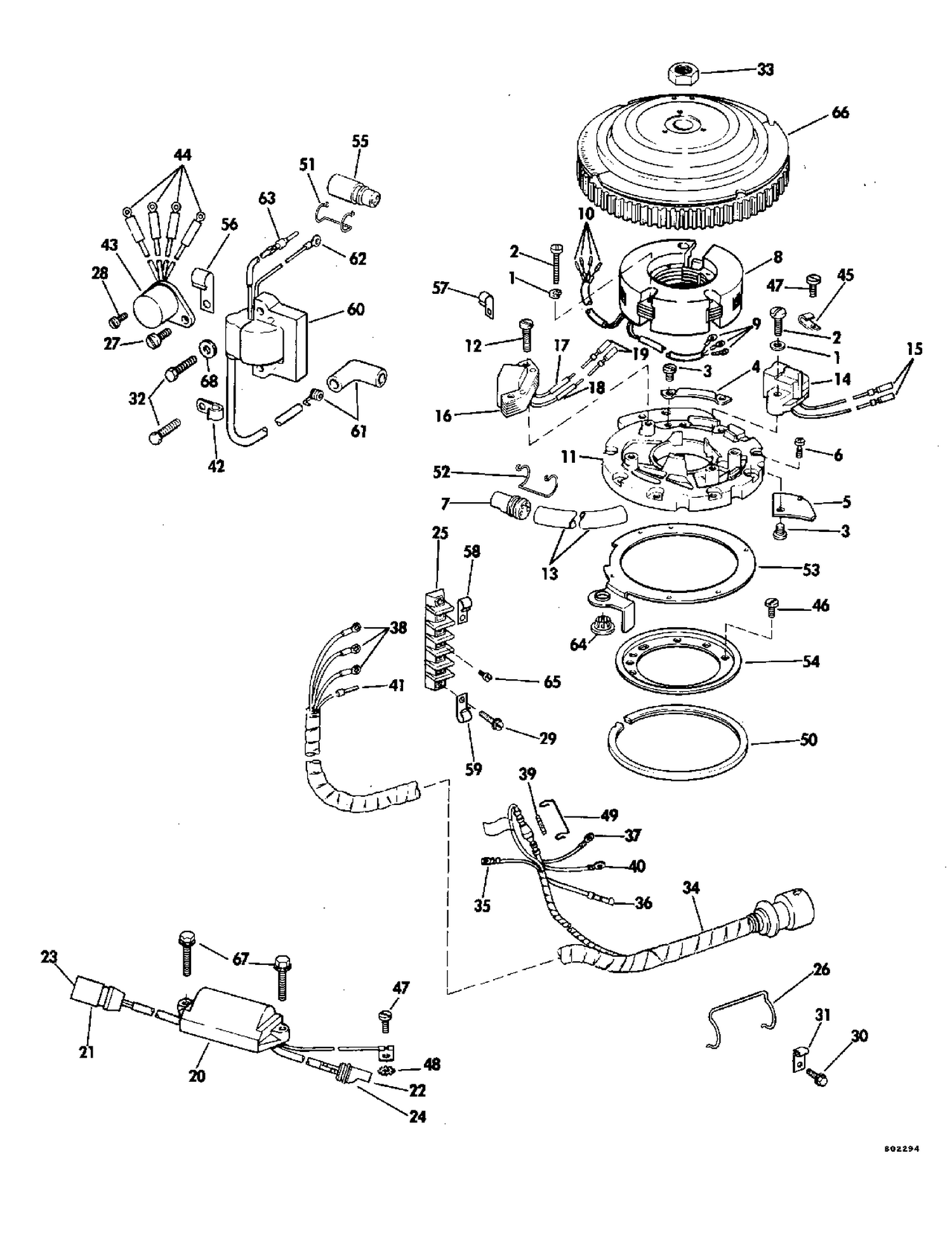

| Ref | Part Number | Description |
|---|
| 4 |
0511458 |
COLLIER, fils |
| 5 |
0511459 |
CACHE, fils |
| 6 |
0511460 |
VIS, dispositif de retenue |
| 8 |
0581651 |
STATOR ASSEMBLY |
| 11 |
0582020 |
PLATE & SLEEVE ASSY. |
| 13 |
0511482 |
SLEEVE |
| 14 |
0582296 |
SENSOR ASSY This part replaces 0581858. |
| 16 |
0581670 |
CHARGE COIL This part replaces 0582059. |
| 20 |
0581927 |
POER PACK ASSY |
| 21 |
0511449 |
COMMECTOR, Coil to power pack |
| 25 |
0511563 |
TERMINAL BLOCK |
| 28 |
0314576 |
SCREW |
| 30 |
0313117 |
SCR,Clamp,eng cable |
| 33 |
0326111 |
NUT |
| 34 |
0582061 |
MOTOR CABLE ASSY |
| 42 |
0310441 |
CLAMP, CPS lead |
| 43 |
0581778 |
REDRESSEUR |
| 45 |
0317000 |
COLLIER, câble |
| 46 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 47 |
0317753 |
SCREW |
| 50 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 52 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 53 |
0334193 |
RETAINER, Ign. plate assy. This part replaces 0323204. |
| 54 |
0332063 |
PLATE, Support This part replaces 0323398. |
| 56 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 60 |
0582330 |
COIL ASSY. |
| 64 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 66 |
0583696 |
FLYWHEEL ASSEMBLY This part replaces 0582172. |
| 67 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 0581853 |
0581853 |
STATOR & ARMATURE PLATE ASSY. |
| 0581855 |
0581855 |
STATOR & ARMATURE PLATE ASSY |
