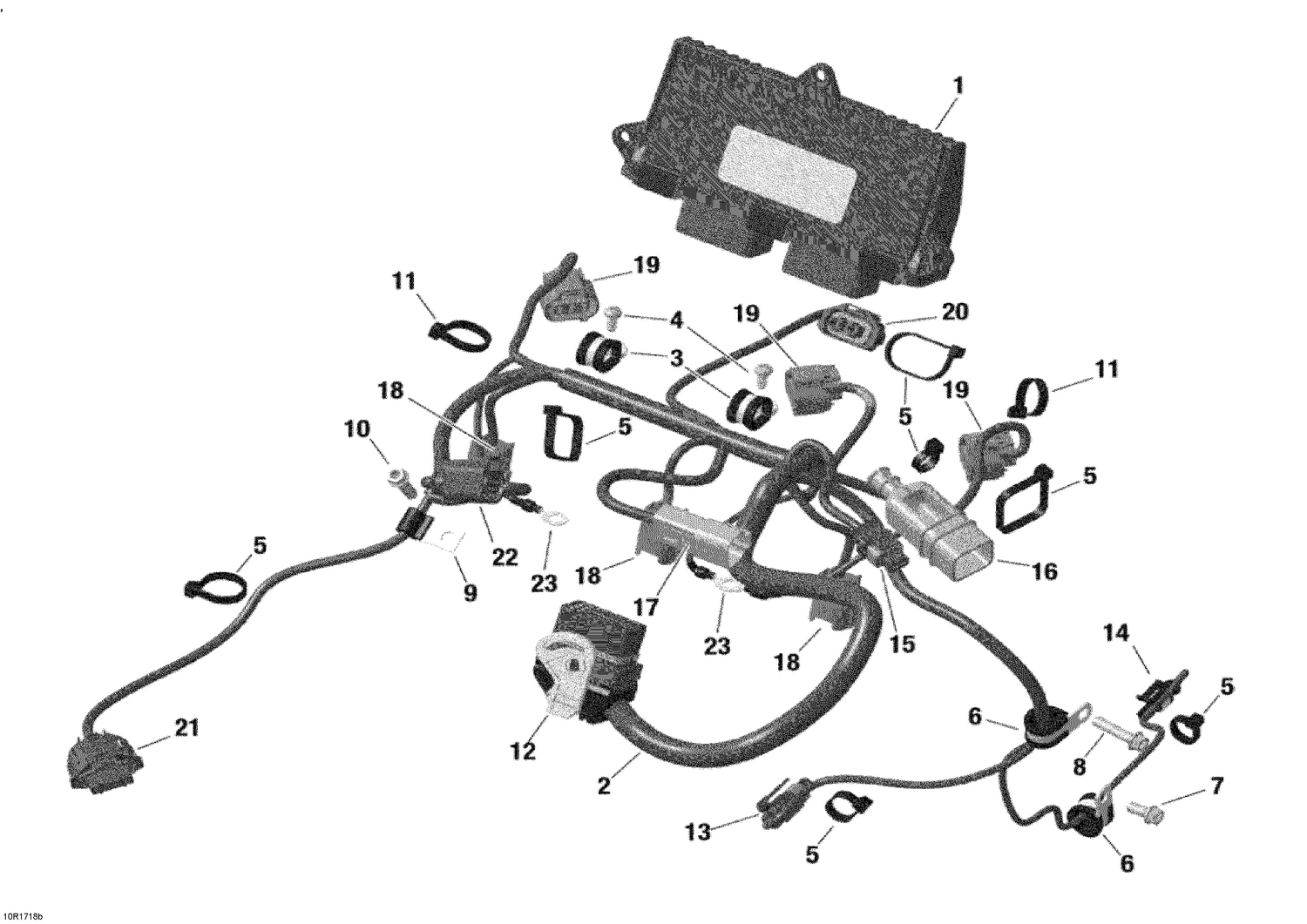

| Ref | Part Number | Description |
|---|
| 1 |
420666920 |
Engine Control Module |
| 2 |
420666692 |
Engine Wiring Harness Ass'Y This part replaces 420666691. |
| 3 |
420251431 |
Clamp 20/M5 |
| 3 |
420851108 |
CABLE CLAMP - Call your local BRP dealership |
| 5 |
420651397 |
Tie-Rap |
| 6 |
420851492 |
Cable Clamp 15/M6 |
| 9 |
420253150 |
CABLE CLAMP - Call your local BRP dealership |
| 11 |
420866714 |
Tie Rap 142x3,2 MM |
| 12 |
Not |
Available As Spare Part - Connector ECM A |
| 13 |
278001005 |
Connector CTS |
| 14 |
278001012 |
Connector OPS |
| 15 |
278001005 |
Connector CPS |
| 16 |
420201070 |
PROTECTOR - Call your local BRP dealership |
| 17 |
710001539 |
Connector HIC |
| 18 |
Not |
Available As Spare Part - Connector INJ. 1-3 |
| 19 |
Not |
Available As Spare Part - Connector COIL 1-3 |
| 20 |
Not |
Available As Spare Part - Connector CAPS |
| 21 |
515176410 |
Male Connector |
| 22 |
515177406 |
Connector ETC |
