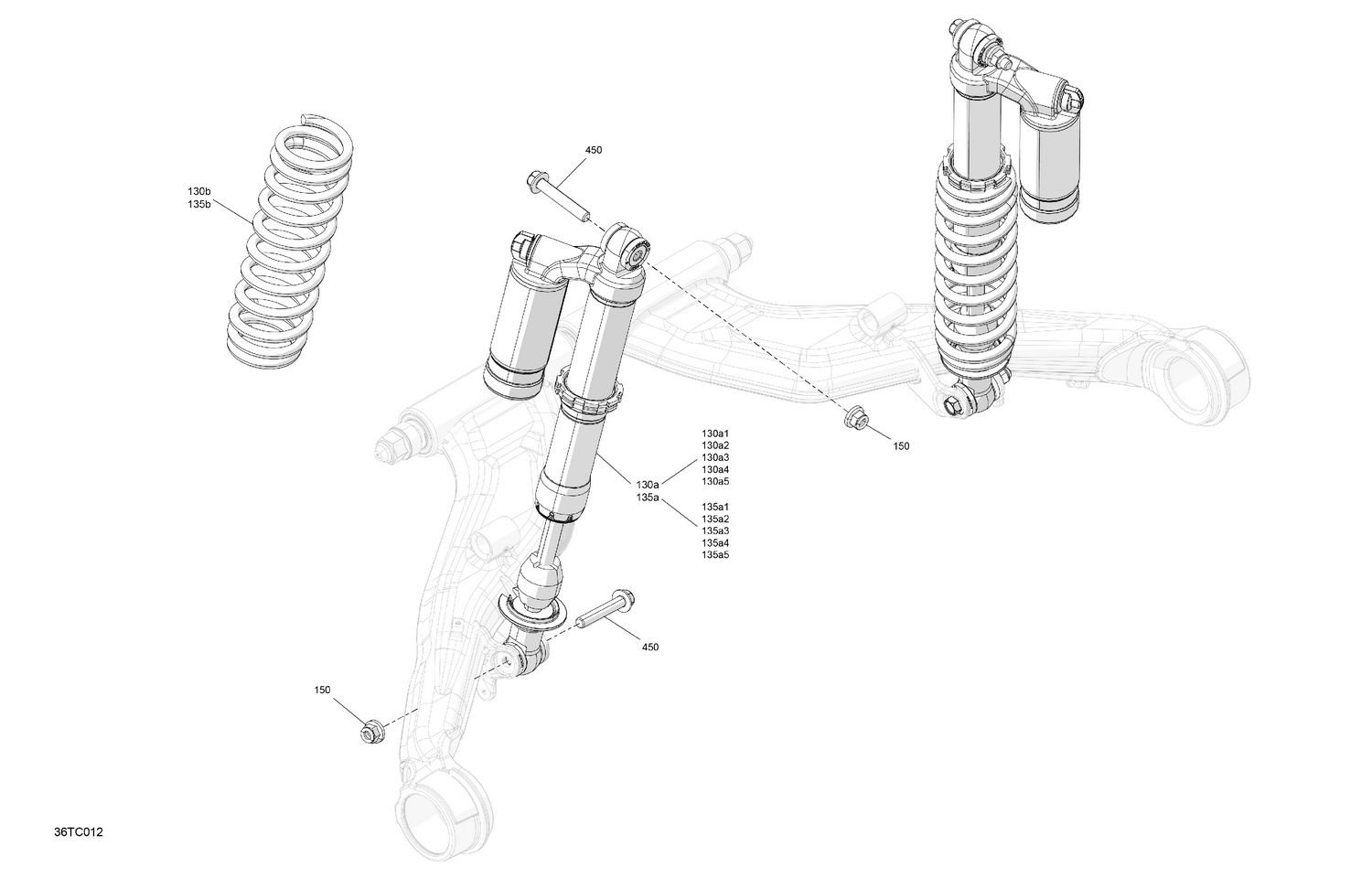

05- Suspension - Rear Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900768 | Shock Absorber Bushing |
| 130a2 | 715900649 | Bushing |
| 130a3 | 715900472 | Seal |
| 130a4 | 715900473 | Sleeve |
| 130a5 | 715900651 | Spacer |
| 130b | 706004071 | Magma Red, Compression Spring |
| 135a1 | 715900768 | Shock Absorber Bushing |
| 135a2 | 715900649 | Bushing |
| 135a3 | 715900472 | Seal |
| 135a4 | 715900473 | Sleeve |
| 135a5 | 715900651 | Spacer |
| 135b | 706004071 | Magma Red, Compression Spring |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 |
