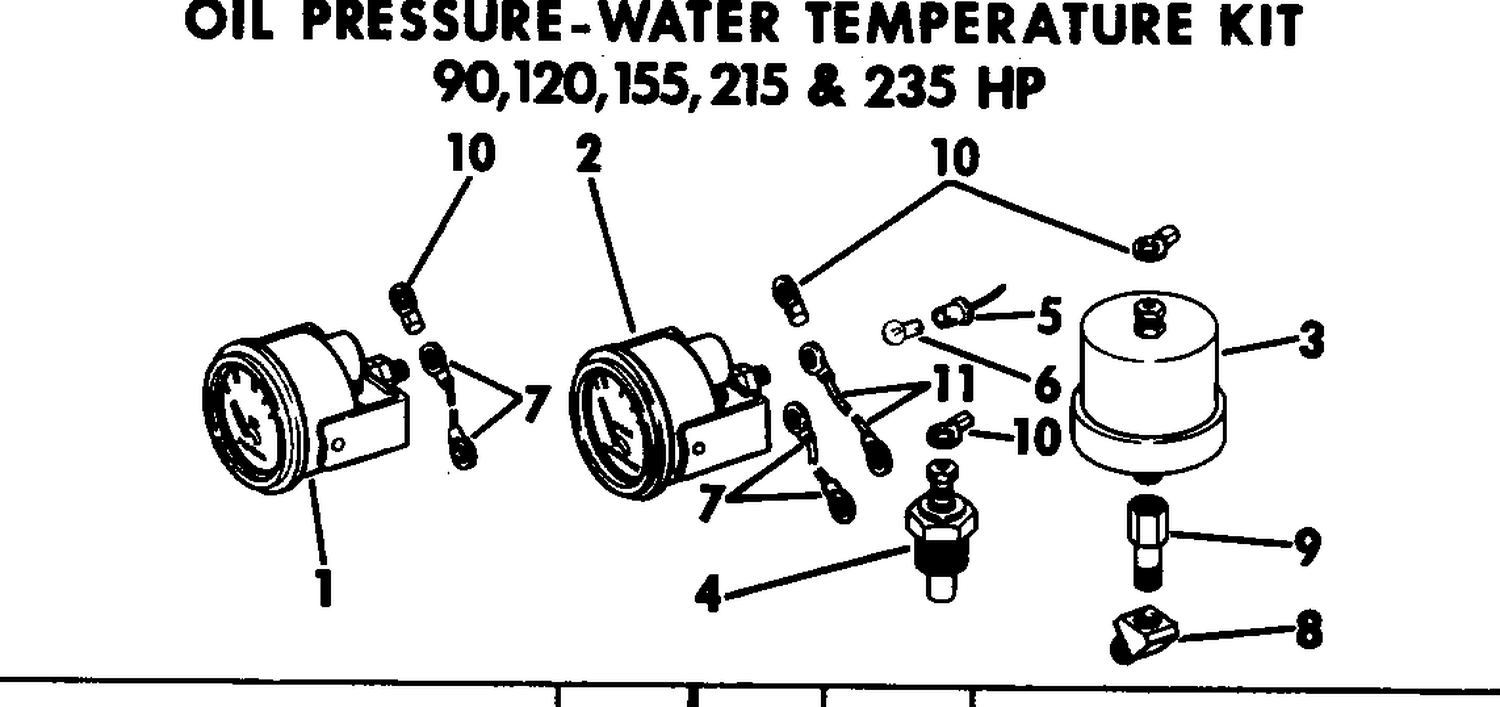

INSTRUMENTS-RING BEZEL OIL PRESSURE-WATER TEMPERATURE KIT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0171957 | GAUGE, Oil pressure, metal case |
| 2 | 0171958 | GAUGE, Water temperature, metal case |
| 3 | 0171959 | SENDING UNIT ASSY., Oil pressure |
| 4 | 0171960 | SENDER, Water temperature |
| 5 | 0171961 | LIGHT SOCKET ASSEMBLY |
| 6 | BULB | Ref: 7 0379378 LEAD 0379378 |
| 8 | 0121687 | FITTING |
| 9 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
| 0171956 | 0171956 | OIL PRESSURE & WATER TEMP. GAUGE KIT |
