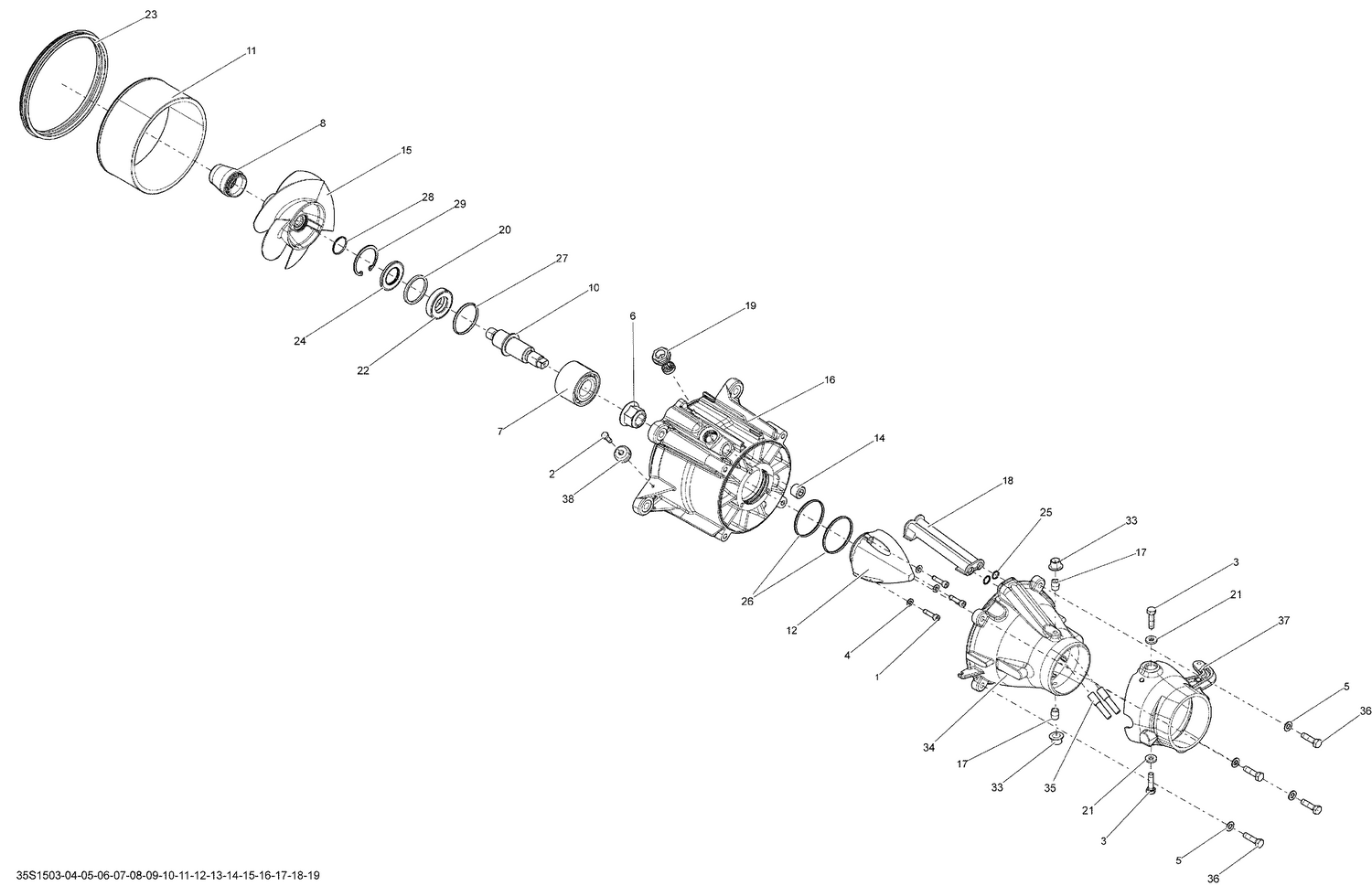

05- Pump _35S1514
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 2 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 234061600 | Stainless Flat Washer M6 |
| 5 | 234081600 | Stainless, Flat Washer 8 mm |
| 6 | 250100104 | Elastic Flange Nut M20 |
| 7 | 267000900 | Angled Bearing This part replaces 267000030. |
| 8 | 271002225 | Guard This part replaces 267000206. |
| 10 | 267000388 | Impeller Shaft |
| 11 | 267000419 | Wear Ring |
| 12 | 267000428 | Impeller Cover |
| 14 | 267000469 | Black, Plastic Plug |
| 15 | 267000940 | Impeller Ass'y This part replaces 267000532. |
| 16 | 271002018 | Impeller Housing This part replaces 267000852. |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 271000785 | Water Outlet |
| 19 | 267000282 | Plug |
| 20 | 271001393 | Spacer |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 271002071 | Seal This part replaces 293200086. |
| 23 | 293200087 | Neoprene Seal |
| 24 | 293200089 | Oil Seal |
| 25 | 293300013 | O-Ring |
| 26 | 293300086 | O-Ring |
| 27 | 293300090 | O-Ring |
| 28 | 293300114 | O-Ring |
| 29 | 293370038 | Circlip |
| 33 | XXX | Not Available As Spare Parts |
| 34 | 267000864 | Venturi |
| 35 | 271001885 | Siphon Tube |
| 36 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 37 | XXX | Not Available As Spare Parts |
