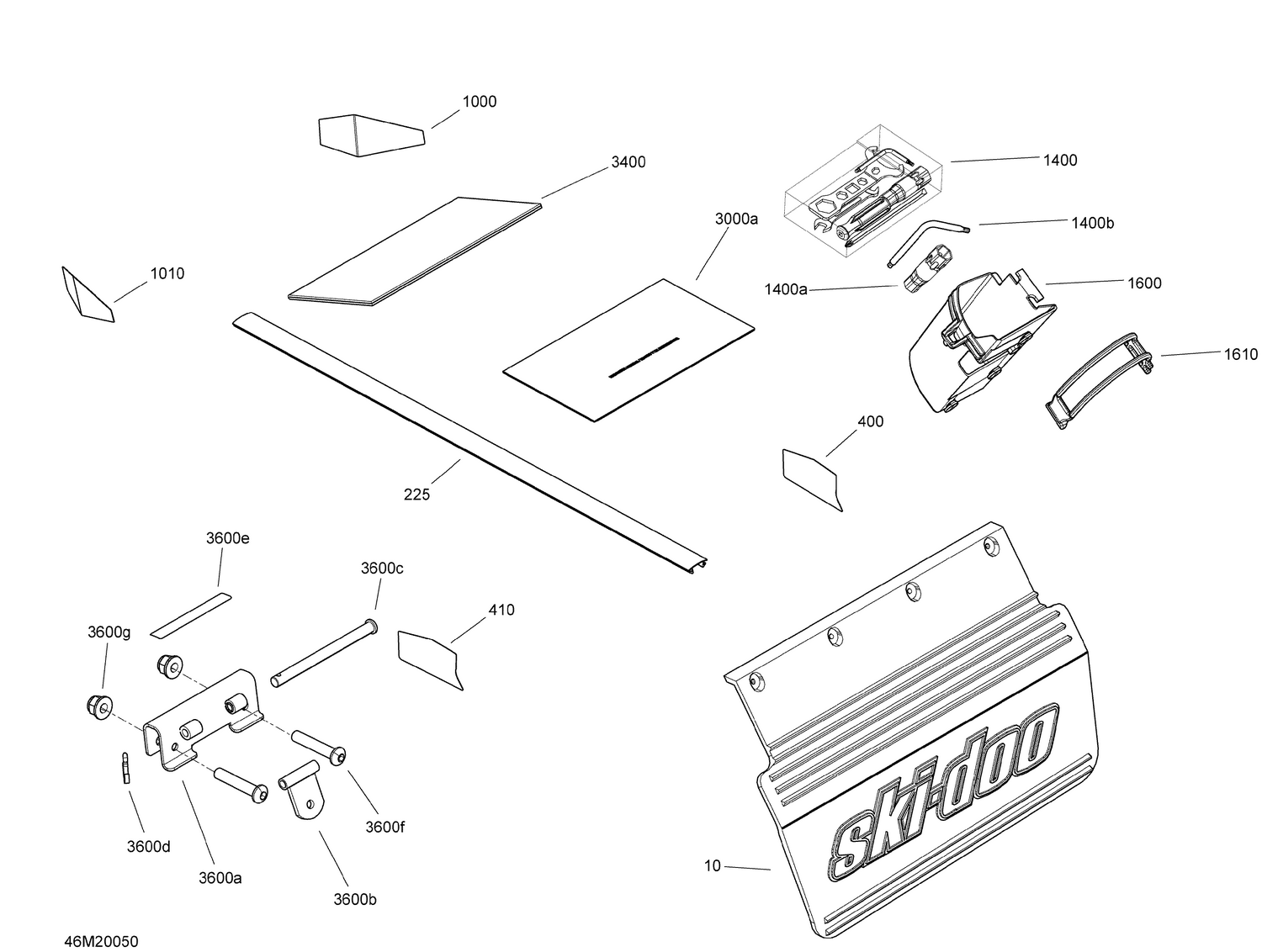

09- Utilities - LT
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520000949 | Snow Guard |
| 225 | 520000829 | Radiator Trim |
| 400 | 520000881 | Red, RH Rear Reflector |
| 410 | 520000880 | Red, LH Rear Reflector |
| 1000 | 520000891 | Yellow, RH Front Reflector |
| 1010 | 520000892 | Yellow, LH Front Reflector |
| 1400a | 529000046 | Set Key, 16/21 mm |
| 1400b | 520001589 | Key |
| 1600 | 520000894 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
| 3000a | 219400038 | Waranty Registration Form |
| 3400 | 520002094 | English Operator Guide |
| 3600a | 511000768 | Support |
| 3600b | 511000521 | Hitch Plate Welded |
| 3600c | 511001451 | Lock Pin This part replaces 511000520. |
| 3600d | 371800200 | Cotter Pin |
| 3600e | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600f | 205484546 | Socket Head Screw M8 X 45 |
