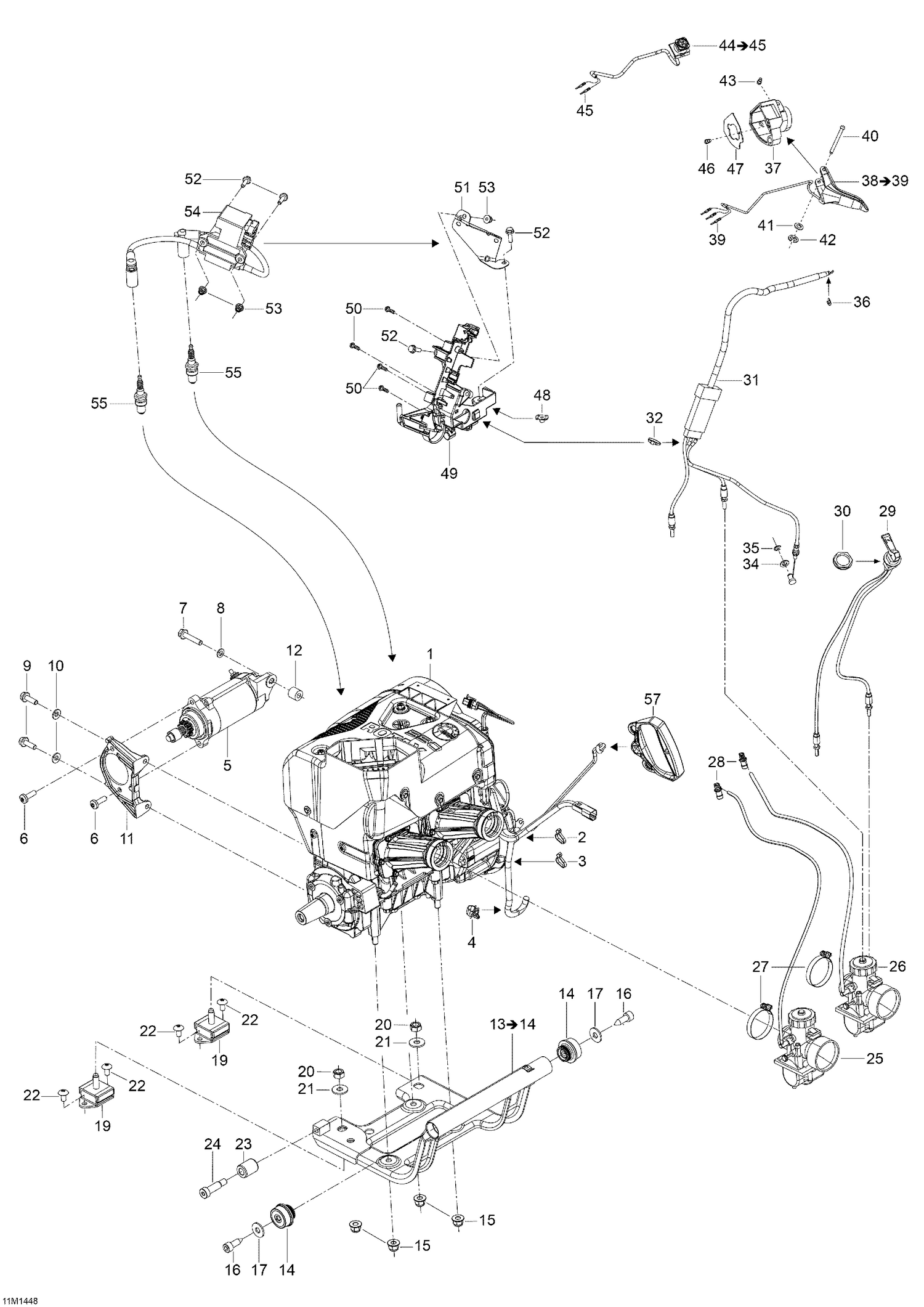

01- Engine And Engine Support
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Engine 552 |
| 2 | 414115200 | Tie-Rap 180 mm |
| 3 | 414115200 | Tie-Rap 180 mm |
| 4 | 515176795 | Tie Rap Mount (screwable) |
| 14 | 512059691 | Rubber Mount |
| 15 | 233201414 | Hex. Flange Elastic Nut M10 |
| 16 | 250000094 | Screw M10 X 30 |
| 17 | 250200014 | Flat Washer M10 |
| 19 | 512060564 | Rubber Mount |
| 20 | 232500416 | Elastic Stop Nut M10 |
| 21 | 250200014 | Flat Washer M10 |
| 22 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 23 | 512060395 | Stopper |
| 24 | 250000463 | Socket Head Screw, Scotch Grip |
| 25 | 403138814 | Carburetor VM30-219, PTO |
| 26 | 403138813 | Carburetor VM30-218, MAG |
| 27 | 512059834 | Gemi Clamp |
| 28 | 414814100 | Male Connector |
| 29 | 512060674 | Choke Cable |
| 30 | 512060671 | Plastic Nut |
| 31 | 512060885 | Throttle Cable |
| 32 | 414115200 | Tie-Rap 180 mm |
| 34 | 234081100 | Flat Washer 8 mm, Nylon |
| 35 | 414753500 | Circlip |
| 36 | 414274500 | Circlip |
| 37 | 512060603 | Throttle Housing |
| 39 | 515175232 | Male Terminal |
| 40 | 414438700 | Lever Pin |
| 41 | 234051600 | Flat Washer M5, Stainless |
| 42 | 293370050 | Circlip |
| 43 | 414440800 | Socket Set Screw M8 X 10 |
| 45 | 515175232 | Male Terminal |
| 46 | 250000265 | TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 47 | 512060390 | Plate |
| 48 | 293100003 | Nut Welded, M6 |
| 49 | 512060924 | Coils Support |
| 50 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 51 | 512060460 | Coils Support |
| 52 | 207662044 | Hex. Flange Screw M6 X 20 |
| 53 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 54 | 512060324 | Calibrated Module |
| 55 | 512059552 | Spark Plug NGK BR9ECS-5 |
