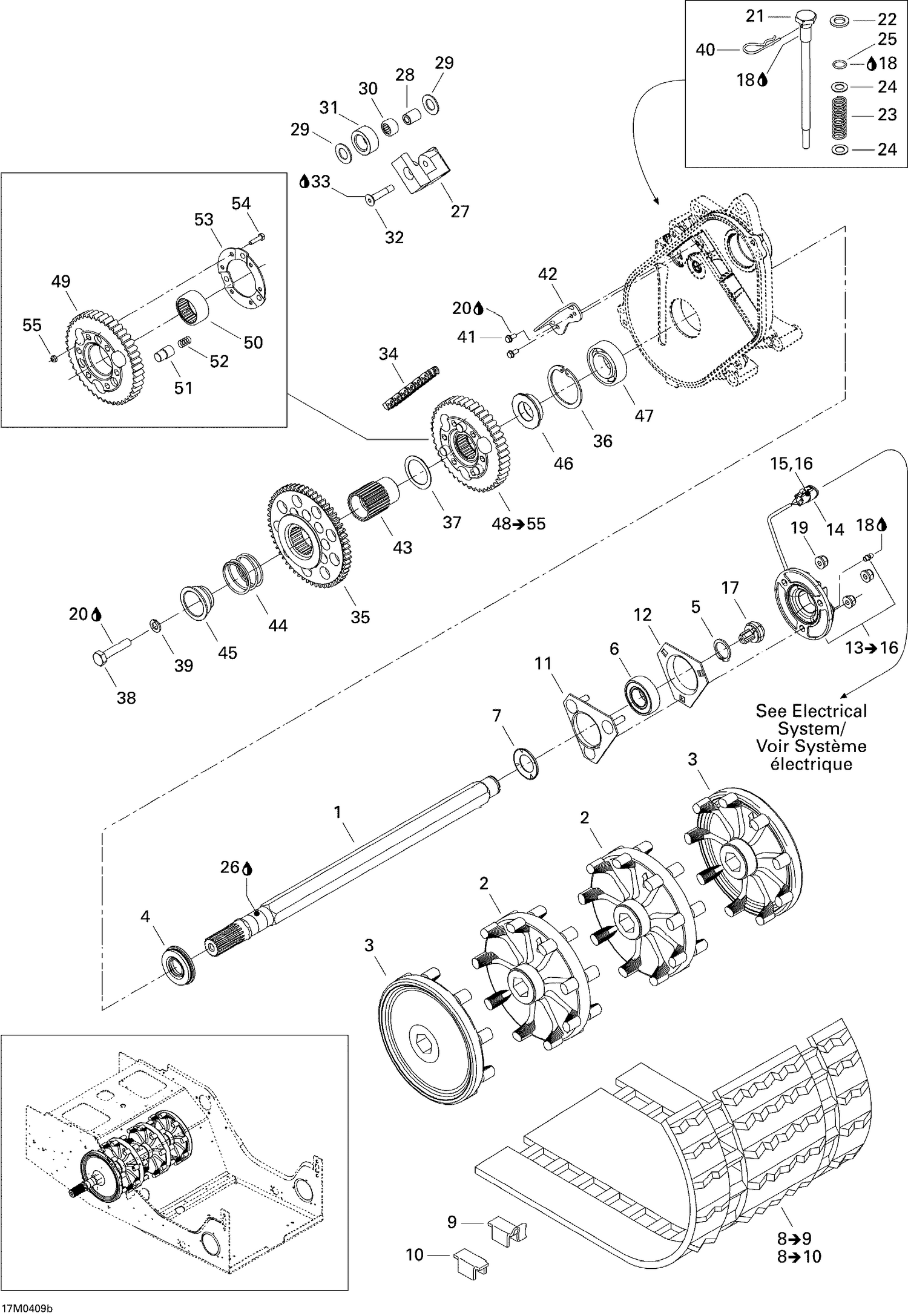

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151782 |
HALF SPROCKET, 9 TEETH - Call your local BRP dealership |
| 4 |
504151918 |
Oil Seal Ass'y |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 11 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 12 |
501025000 |
FLANGE - Call your local BRP dealership |
| 14 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 15 |
278000632 |
Female Terminal |
| 16 |
515175676 |
Female Lock, 3 Circuits |
| 17 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 18 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
293800005 |
Loctite 271, 10 ml |
| 21 |
504151946 |
Adjustment Screw |
| 22 |
503189148 |
Washer |
| 23 |
504151945 |
SPRING - Call your local BRP dealership |
| 24 |
503125900 |
HARD WASHER - Call your local BRP dealership |
| 25 |
504151954 |
O-RING - Call your local BRP dealership |
| 26 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 27 |
504151940 |
Chain Tensioner |
| 28 |
504080200 |
SPACER - Call your local BRP dealership |
| 29 |
504080300 |
WASHER - Call your local BRP dealership |
| 30 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 31 |
414531300 |
ROLLER - Call your local BRP dealership |
| 32 |
732601144 |
SCREW - Call your local BRP dealership |
| 33 |
293800005 |
Loctite 271, 10 ml |
| 34 |
504151857 |
Drive Chain, 74 Links |
| 35 |
504096800 |
SLIDING GEAR, 56 TEETH - Call your local BRP dealership |
| 36 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 37 |
504094300 |
WASHER - Call your local BRP dealership |
| 38 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 39 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 40 |
414575600 |
Hair Pin |
| 41 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 42 |
504152036 |
SLIDER CHAIN - Call your local BRP dealership |
| 43 |
504097700 |
Coupling Axle |
| 44 |
504153178 |
Spring Release This part replaces 504096600. |
| 45 |
504151964 |
CAP - Call your local BRP dealership |
| 46 |
504076300 |
RETAINING RING - Call your local BRP dealership |
| 47 |
504152005 |
Ball Bearing |
| 49 |
504084400 |
Sprocket, 44 Teeth |
| 50 |
414772600 |
NEEDLE BEARING - Call your local BRP dealership |
| 51 |
504076800 |
DRIVE PIN - Call your local BRP dealership |
| 52 |
414772700 |
SPRING - Call your local BRP dealership |
| 53 |
504076100 |
RETAINER RING - Call your local BRP dealership |
| 54 |
207152044 |
Hex. Screw M5 X 20 |
