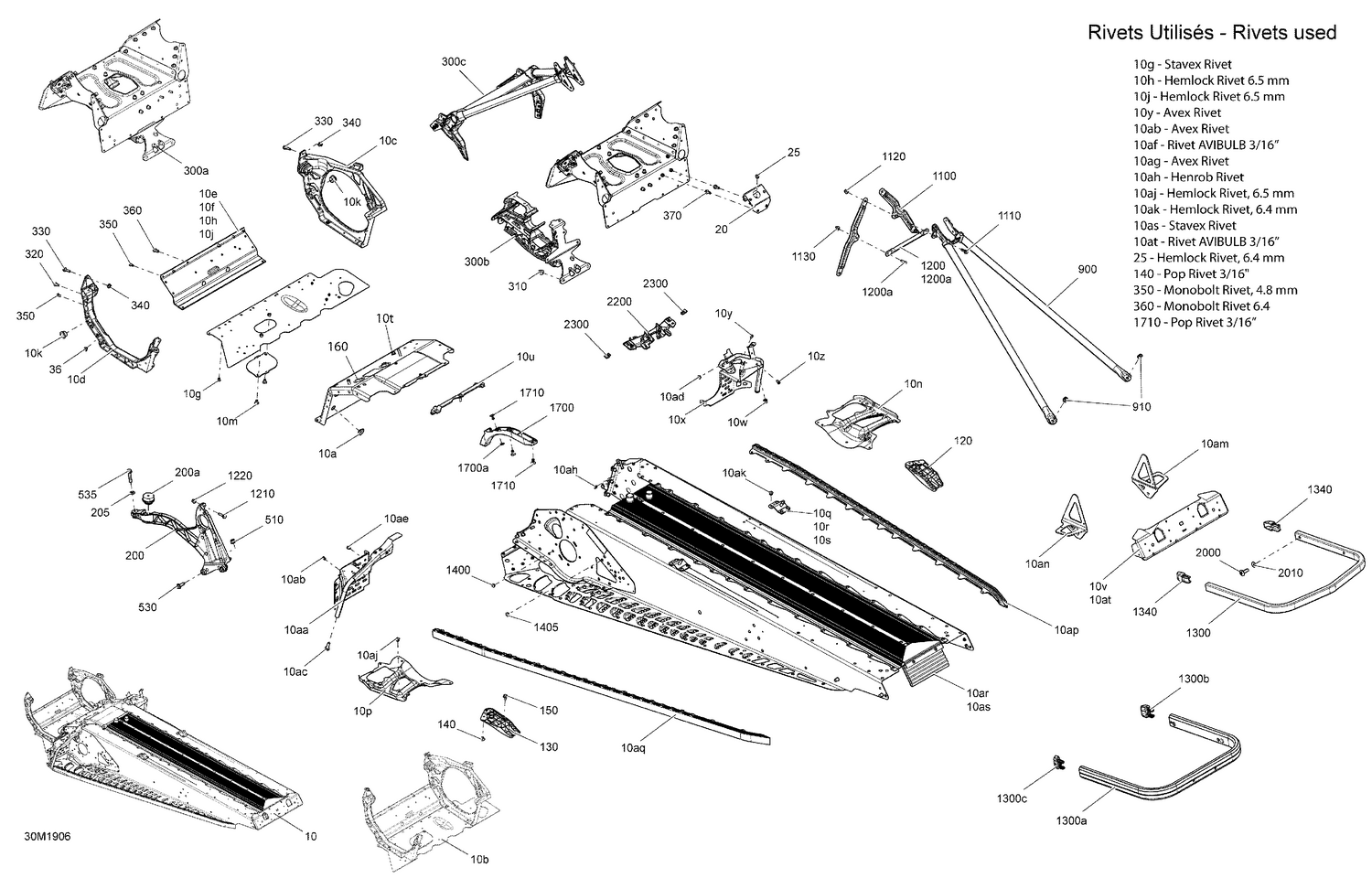

| Ref | Part Number | Description |
|---|
| 10a |
293730052 |
Black, Plug |
| 10ab |
390909200 |
Avex Rivet |
| 10ac |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 10ad |
293730042 |
Full Moon Dart 5 mm |
| 10ae |
293450268 |
Insert M5 X 0.8 |
| 10af |
293150203 |
Rivet Avibulb 3/16 |
| 10ag |
390909100 |
Avex Rivet |
| 10ah |
293150146 |
Henrob Rivet |
| 10aj |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10ak |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10am |
518328789 |
RH Bracket |
| 10an |
518328790 |
LH Bracket |
| 10ap |
518328124 |
RH Roller |
| 10aq |
518328125 |
LH ROLLER - Call your local BRP dealership |
| 10as |
293150144 |
Stavex Rivet |
| 10at |
293150203 |
Rivet Avibulb 3/16 |
| 10c |
518326328 |
RH Side Member |
| 10d |
518326330 |
LH Side Member |
| 10f |
250300038 |
Clinch Stud |
| 10g |
293150144 |
Stavex Rivet |
| 10h |
293150120 |
Hemlock Rivet 6.5 mm |
| 10j |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10k |
505073317 |
Leg Cushion |
| 10m |
250000767 |
Torx Truss Screw M6 X 12 |
| 10n |
518326937 |
RH Reinforcement, Running Board |
| 10p |
518326938 |
LH Reinforcement, Running Board |
| 10q |
518325973 |
RH Rear Base |
| 10s |
250300031 |
Clinch Stud M6 X 30 |
| 10t |
293450275 |
Insert |
| 10u |
518326656 |
Seal |
| 10v |
518327105 |
Rear Cap |
| 10w |
293450275 |
Insert |
| 10y |
390909200 |
Avex Rivet |
| 10z |
293450268 |
Insert M5 X 0.8 |
| 20 |
518326178 |
Engine Support |
| 25 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 120 |
518325782 |
RH Deflector, Black Polypropylene |
| 130 |
518325783 |
LH Deflector, Black Polypropylene |
| 140 |
293150104 |
Pop Rivet 3/16" |
| 150 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 160 |
518325560 |
Adhesive Patch |
| 200a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 205 |
234281474 |
Conical Spring Washer M8 |
| 300b |
518327487 |
Front Suspension Support |
| 300c |
518327565 |
Front Member |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 530 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 535 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518326848 |
Upper Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1200a |
250300027 |
Clinch Stud M6 X 20 |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
| 1405 |
293730059 |
Full Moon Dart 10 mm |
| 1700a |
517124300 |
Washer |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 2200 |
518327145 |
Sub A Support |
| 2300 |
250000958 |
Panel Nut M5 X 0.8 |
