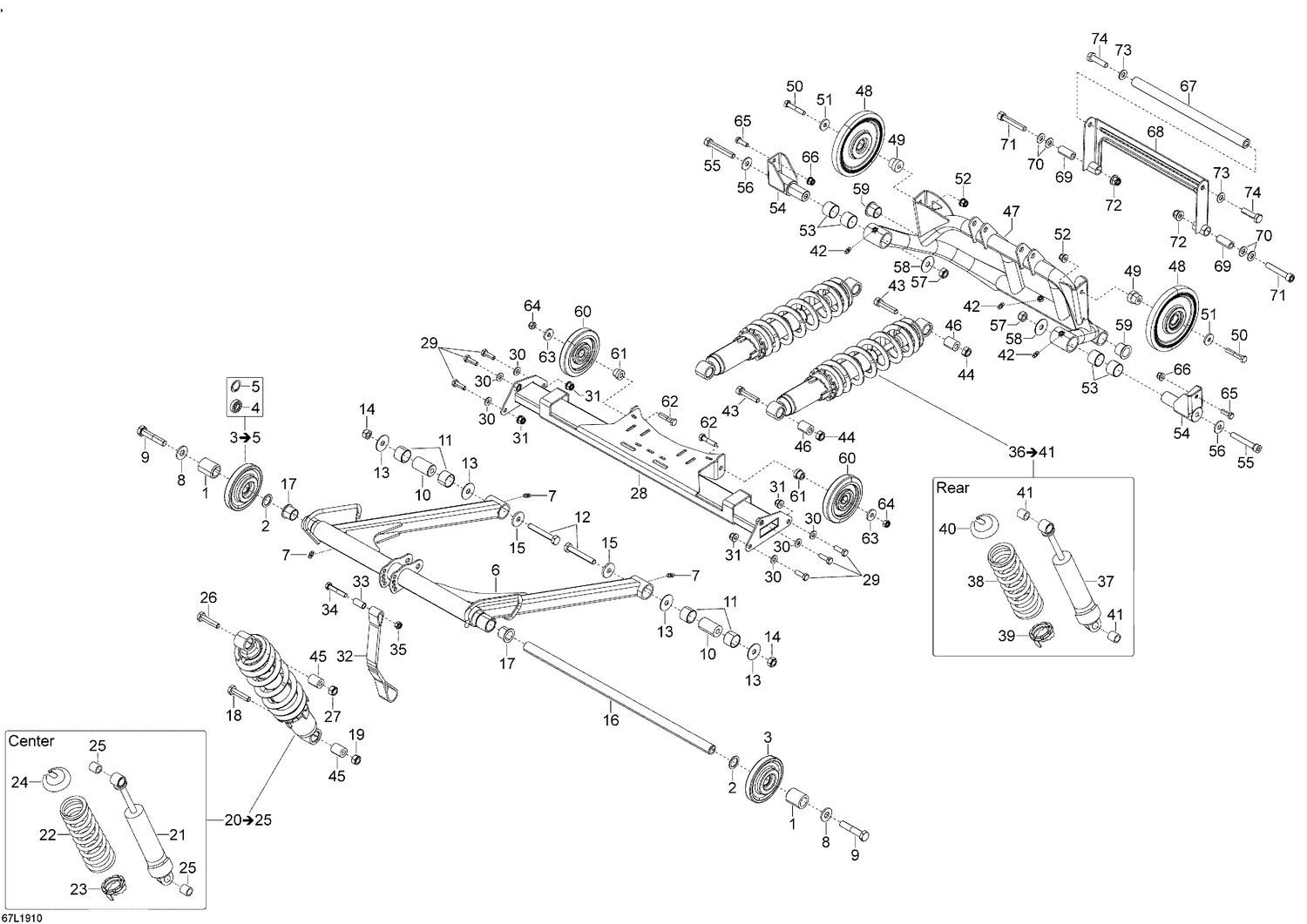

08- Rear Suspension - Upper Section
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 503193092 | Front Arm |
| 7 | 408200700 | Grease Fitting |
| 8 | 250200131 | Washer Spring Conical M12 |
| 9 | 250000555 | Hex. Cap Screw M12 x 60 |
| 10 | 605354157 | Etupukin ala-akseli |
| 11 | 503193700 | Bushing |
| 12 | 207007044 | Hex. Cap Screw M10 x 70 |
| 13 | 605355801 | Korialuslevy |
| 14 | 232500416 | Elastic Stop Nut M10 |
| 15 | 503183300 | Aluslevy M10, karkaistu |
| 16 | 503193174 | Upper Shaft Front Arm |
| 17 | 31024 | Lower Cushion rear arm |
| 18 | 207004544 | Hex. Screw M10 X 45 |
| 19 | 232500416 | Elastic Stop Nut M10 |
| 21 | 503192369 | Shock, Front Arm |
| 22 | 503192358 | Spring 237 mm - 65 N/mm |
| 23 | 230078 | Adjusting Cam |
| 24 | 230076 | Fjäder stoppare Främ dä,päre |
| 25 | 31094 | Cushion |
| 26 | 207004544 | Hex. Screw M10 X 45 |
| 27 | 232500416 | Elastic Stop Nut M10 |
| 28 | 503192687 | Middle Beam |
| 29 | 250000556 | Hex. Cap Screw M8 x 25 |
| 30 | 503192494 | Washer |
| 31 | 233281414 | Hex. Flange Elastic Nut M8 |
| 32 | 503193780 | Limiter Strap |
| 34 | 207084544 | Hex. Screw M8 X 45 |
| 35 | 232581414 | Hex. Elastic Stop Nut M8 |
| 37 | 503193518 | Shock, Rear Arm |
| 38 | 503192428 | Spring (280mm - 70N/mm) |
| 39 | 230078 | Adjusting Cam |
| 40 | 230076 | Fjäder stoppare Främ dä,päre |
| 41 | 31094 | Cushion |
| 42 | 408200700 | Grease Fitting |
| 44 | 232500416 | Elastic Stop Nut M10 |
| 45 | 5446652 | Bushing |
| 46 | 5446652 | Bushing |
| 47 | 503194584 | Rear Arm Weld |
| 49 | 605454461 | Sleeve |
| 50 | 207084544 | Hex. Screw M8 X 45 |
| 51 | 20077 | M8 Washer |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 53 | 503193700 | Bushing |
| 54 | 503194384 | Rear Arm Support |
| 55 | 250000543 | Socket HD. Screw M10 x 65 |
| 56 | 503191926 | Washer |
| 57 | 232500416 | Elastic Stop Nut M10 |
| 58 | 605355801 | Korialuslevy |
| 59 | 31024 | Lower Cushion rear arm |
| 60 | 572043500 | Idler Wheel |
| 61 | 503193330 | Sleeve |
| 62 | 207083544 | Hex. Screw M8 X 35 |
| 63 | 20077 | M8 Washer |
| 64 | 232581414 | Hex. Elastic Stop Nut M8 |
| 67 | 503192397 | Shaft |
| 68 | 503192346 | Rear Swing |
| 69 | 503192341 | Shaft, Rear Swing |
| 70 | 234001410 | Flat Washer 10 mm |
| 71 | 205006044 | Socket Head Screw M10 x 60 |
| 72 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 73 | 234001410 | Flat Washer 10 mm |
