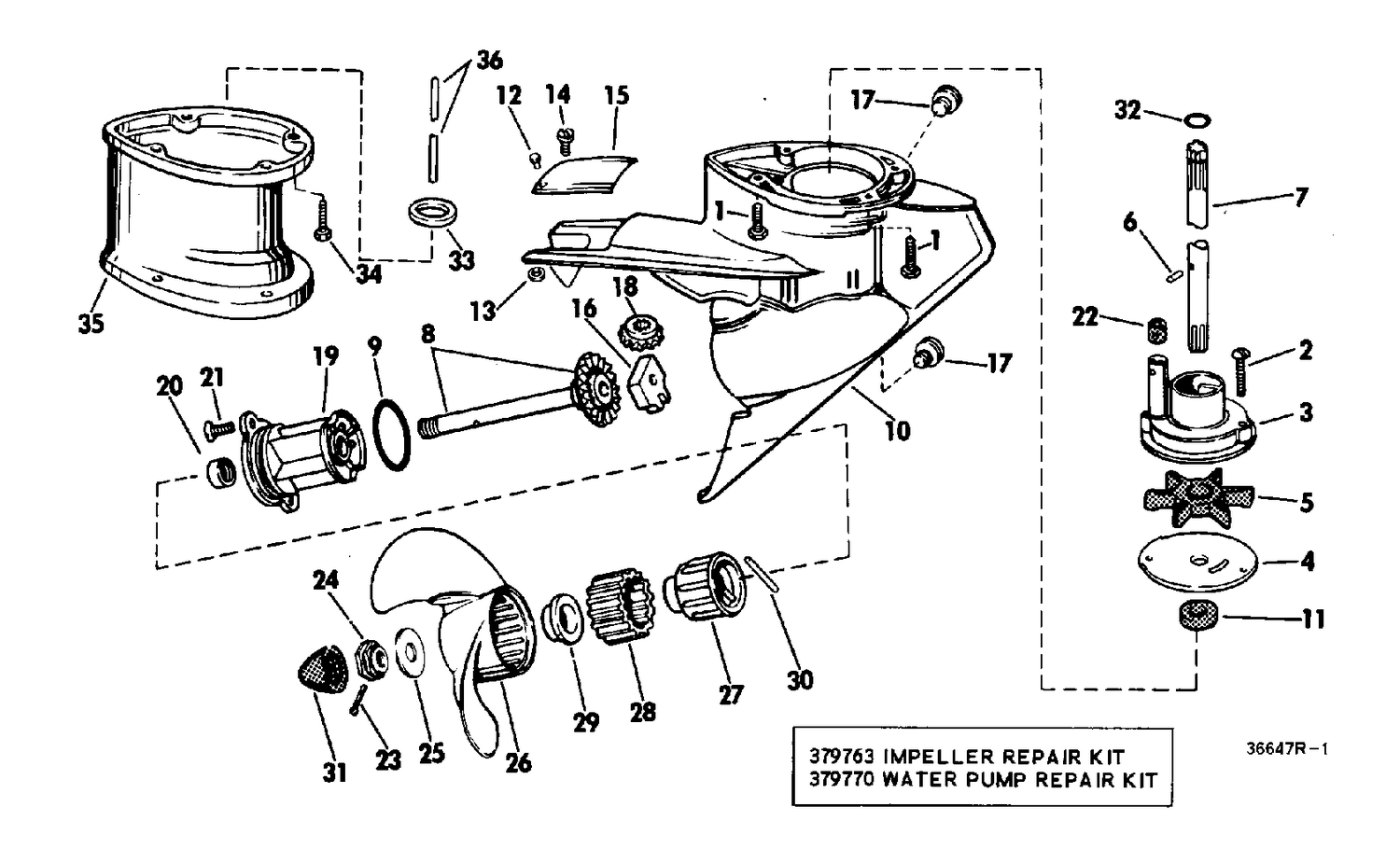

| Ref | Part Number | Description |
|---|
| 1 |
0308707 |
SCREW |
| 2 |
0302963 |
SCREW |
| 3 |
0310344 |
HOUSING, Impeller |
| 4 |
0203132 |
PLATE, Pump |
| 5 |
0277181 |
IMPELLER & PIN ASSY |
| 7 |
0205350 |
DRIVESHAFT |
| 7 |
0205575 |
DRIVESHAFT, Lower |
| 7 |
0205639 |
DRIVESHAFT, 5" longer 5 INCH LONGER PARTS |
| 7 |
0310345 |
DRIVESHAFT, Standard |
| 8 |
0277457 |
PROPELLER SHAFT ASSEMBLY |
| 10 |
0382787 |
GEARCASE & EXH. COV. ASSY |
| 18 |
0203648 |
PINION, Driveshaft |
| 19 |
0382790 |
BEARING HOUSING ASSEMBLY |
| 22 |
0317372 |
GROMMET, Wate tube, lower This part replaces 0203131. |
| 23 |
0302804 |
COTTER IN |
| 24 |
0203829 |
NUT, Propeller |
| 25 |
0300573 |
WASHER |
| 26 |
0203919 |
PROPELLER,6-1/8" x 6-1/4" |
| 27 |
0376769 |
HUB, Propeller clutch |
| 28 |
0315471 |
BUSHING,Propeller clutch This part replaces 0300565. |
| 29 |
0300619 |
BUSHING, Clutch |
| 30 |
0203230 |
DRIVE PIN |
| 31 |
0203830 |
CAP, Propellar shaft |
| 33 |
0310744 |
PILOT RING 5 INCH LONGER PARTS |
| 34 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 35 |
0310355 |
EXRENSION,Gearcase 5" LONGER PARTS |
| 36 |
0205637 |
WATER TUBE 5 INCH LONGER PARTS |
| 36 |
0312945 |
WATER TUBE 5 INCH LONGER PARTS |
| 0278771 |
0278771 |
EXTENSION KIT ASSY.-5" 5 INCH LONGER PARTS |
| 0381869 |
0381869 |
EXTENSION KIT ASSY. - 5" 5 INCH LONGER PARTS |
| 0382789 |
0382789 |
GEARCASE ASSEMBLY |
