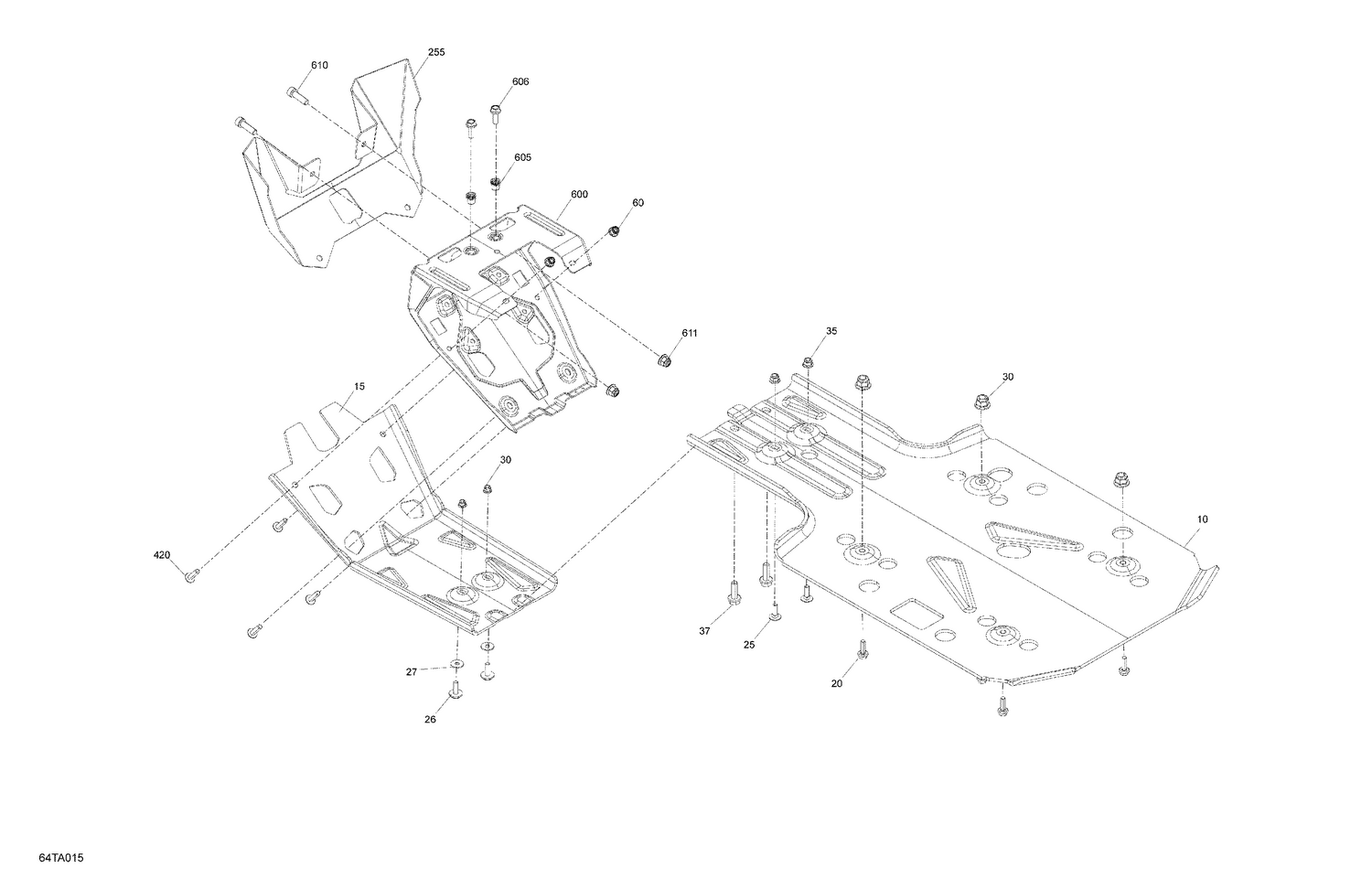

07- Body - Skid Plate
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705204031 | Central Skid Plate |
| 15 | 705205019 | Front Skid Plate |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 26 | 250000712 | Torx Screw M6 X 20 |
| 27 | 234062670 | Stainless Steel Flat Washer |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 37 | 207682534 | Hex. Flange Screw M8 X 25 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 255 | 705009707 | Front Facia |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 600 | 705009684 | Skid Plate |
| 605 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 606 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 610 | 205003044 | Socket Screw M10 x 30 |
