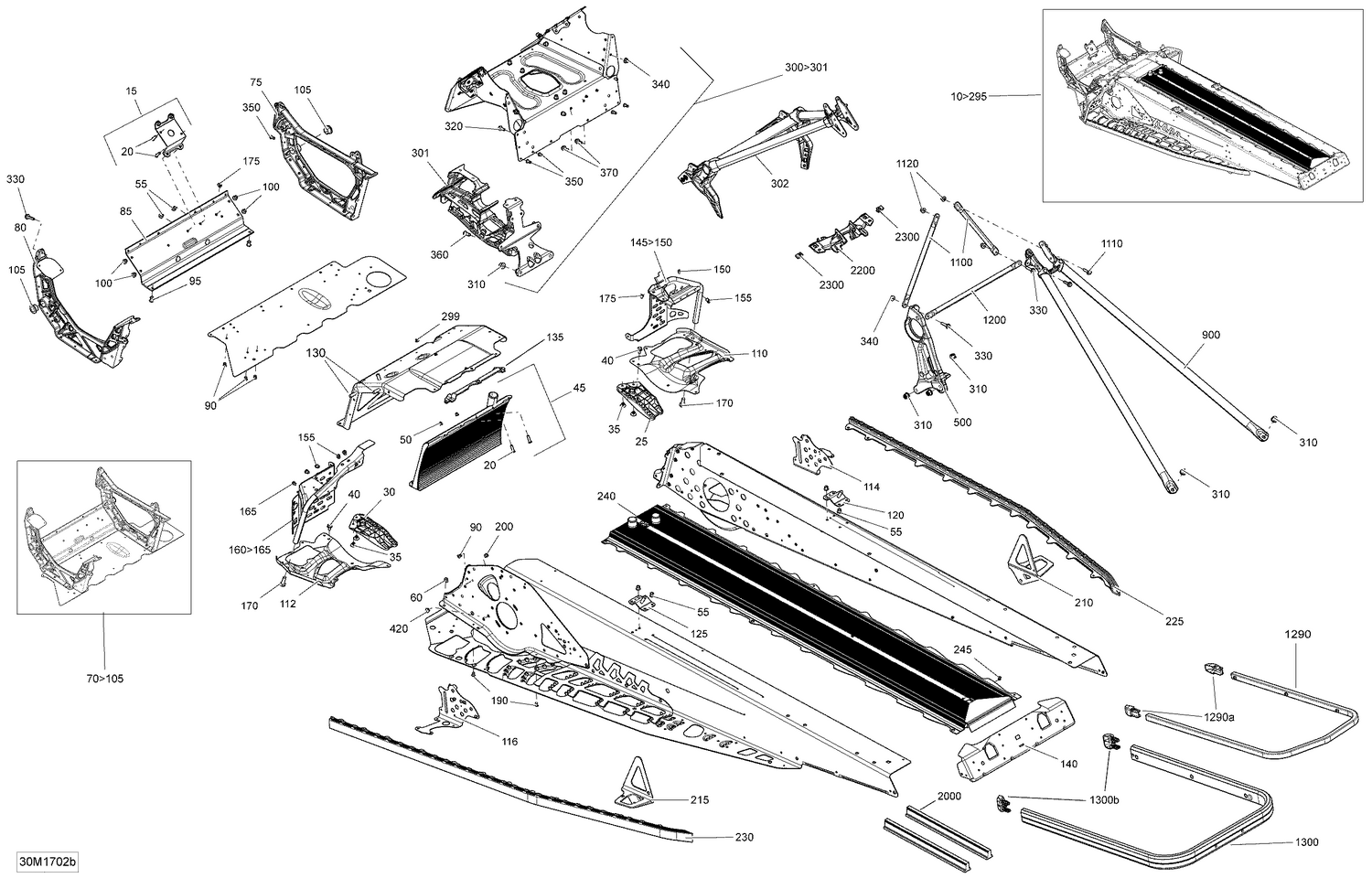

| Ref | Part Number | Description |
|---|
| 20 |
250300027 |
Clinch Stud M6 X 20 |
| 25 |
518325782 |
RH Deflector, Black Polypropylene |
| 30 |
518325783 |
LH Deflector, Black Polypropylene |
| 35 |
293150104 |
Pop Rivet 3/16" |
| 40 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 45 |
518326485 |
Front Radiator |
| 50 |
293150203 |
Rivet Avibulb 3/16 |
| 55 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 60 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 75 |
518326795 |
RH Member |
| 80 |
518326796 |
LH Member |
| 85 |
518326198 |
Front Member |
| 90 |
293150144 |
Stavex Rivet |
| 95 |
293150120 |
Hemlock Rivet 6.5 mm |
| 100 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 105 |
505073317 |
Leg Cushion |
| 110 |
518326937 |
RH Reinforcement, Running Board |
| 112 |
518326938 |
LH Reinforcement, Running Board |
| 114 |
XXX |
Not Available As Spare Parts |
| 116 |
518326616 |
RH Front Suspension Retainer |
| 118 |
518326617 |
LH Front Suspension Retainer |
| 120 |
518325973 |
RH Rear Base |
| 125 |
518325974 |
LH Rear Base |
| 130 |
250300038 |
Clinch Stud |
| 135 |
518326656 |
Seal |
| 140 |
518327105 |
Rear Cap |
| 150 |
390909200 |
Avex Rivet |
| 155 |
293450268 |
Insert M5 X 0.8 |
| 165 |
390909200 |
Avex Rivet |
| 170 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 175 |
293730042 |
Full Moon Dart 5 mm |
| 190 |
390909100 |
Avex Rivet |
| 200 |
293150146 |
Henrob Rivet |
| 210 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 215 |
518328344 |
RH Slide Suspension Bracket |
| 220 |
518328345 |
LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership |
| 240 |
XXX |
Not Available As Spare Parts |
| 245 |
XXX |
Not Available As Spare Parts |
| 299 |
250000038 |
Socket Head Screw M6 X 40 |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 420 |
293730047 |
Black, Dart 8 mm |
| 420 |
293730053 |
Black Dart 5 mm |
| 420 |
293730060 |
Black, Dart 10 mm |
| 500 |
518327460 |
Driven Pulley Support |
| 900 |
518326559 |
Rear Member |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1290 |
518327637 |
Black, Rear Bumper |
| 1290a |
520000840 |
BLACK CAP - Call your local BRP dealership |
| 2200 |
518327145 |
Sub A Support |
