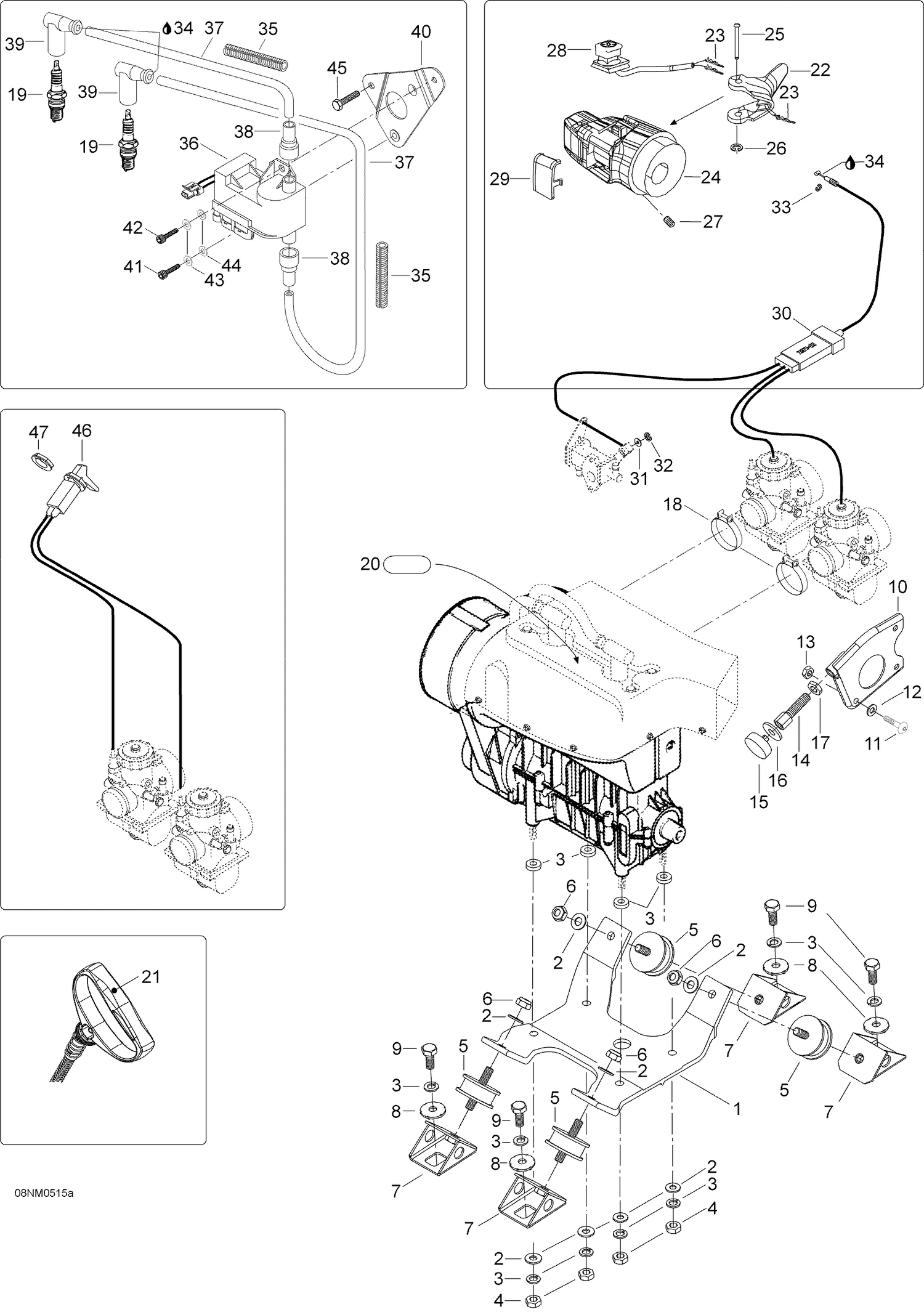

01- Engine And Engine Support, 552

01- Engine And Engine Support, 552

Parts (44)

RefPart NumberDescription
1 512059397 Engine support
2 20005 WASHER M10 - Call your local BRP dealership
3 20113 Spring washer M10
4 232006414 Hex. Nut M10 This part replaces 33004.
5 570128700 RUBBER MOUNT - Call your local BRP dealership
6 33082 Elastic stop nut M10
7 512050900 Engine support
8 512056700 Lock washer
9 40040 Hex. screw M10 x 25
10 512059446 Support plate
11 40344 Socket head screw M8 x 25
12 234081410 Flat Washer 8 mm This part replaces 20004.
13 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
14 512058800 STOPPER SCREW - Call your local BRP dealership
15 512059056 Stopper
16 5147306 Washer
17 33218 Jam nut M12
18 512059834 Clamp
19 219703120 Spark Plug NGK BR9ES This part replaces 414961100.
20 516000986 Decal, spark plug
21 572084400 Grip
22 512059624 Throttle handle
23 605642628 CONNECTOR - Call your local BRP dealership This part replaces 42603.
24 572100900 Throttle handle housing
25 414438700 Pin
26 414439000 Circlip
27 414440800 Socket Set Screw M8 X 10
28 515175410 Switch kill
29 572100901 Cover
30 512059625 THROTTLE CABLE - Call your local BRP dealership
31 234081100 Flat Washer 8 mm This part replaces 414753300.
32 414753500 Circlip This part replaces 31035.
33 31038 Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership
34 293550004 Dielectric-rasva, 150g
35 28012 Tubing
37 278002198 SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
38 515174900 PROTECTION CAP - Call your local BRP dealership
39 278000237 SPARK PLUG CAP - Call your local BRP dealership
40 512059494 Bracket
41 40364 Socket head screw M6 x 16
42 40052 Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
43 20052 Lock washer A6
44 20003 Washer A6,4
45 209561640 Self tapping screw 6.3 x 16
