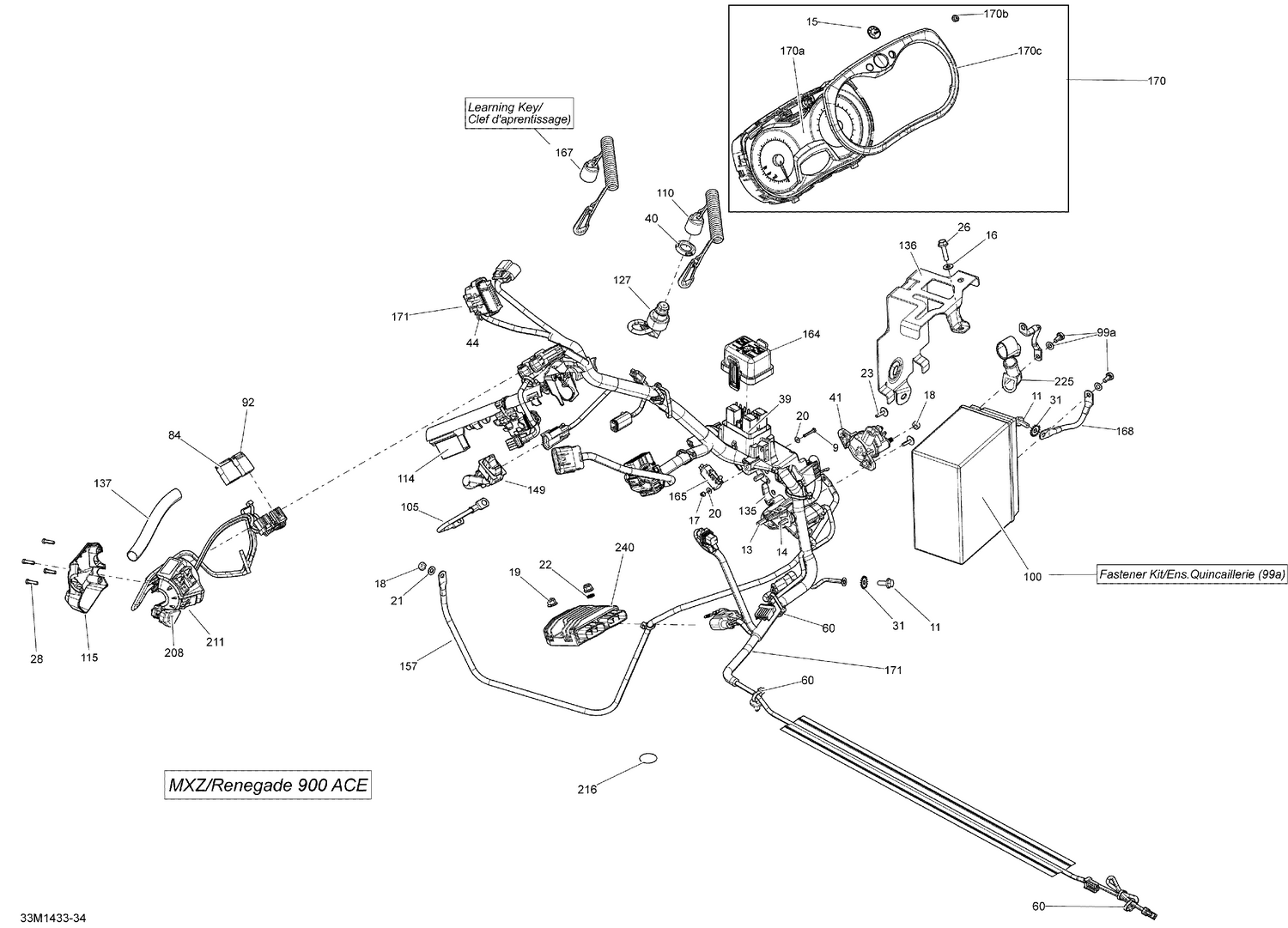

10- Electrical System _33M1433
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 207132044 | Hex Screw M3 X 20 |
| 11 | 207661644 | Hex. Flange Screw M6 X 16 |
| 13 | 210262040 | Hex. Flange Screw M6 X 20 |
| 14 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 15 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 16 | 224061121 | Flat Washer |
| 17 | 232531423 | Elastic Stop Nut M3 |
| 18 | 232561414 | Elastic Stop Nut M6 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 234032600 | Flat Washer M3, Stainless |
| 21 | 234061410 | Flat Washer 6 mm |
| 22 | 234461608 | External Serrated Lock Washer 6 mm |
| 23 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 26 | 250000793 | Hex. Flange Screw M6 X 25 This part replaces 250000504. |
| 28 | 250000671 | Torx Screw |
| 29 | 250000690 | Pan Screw Forming, 7500C |
| 30 | 250200039 | Flat Washer |
| 31 | 250200041 | Lock Washer Serrated M6 |
| 39 | 278002824 | Case Ass'y with seal, 24 positions |
| 40 | 278002963 | Safety Nut (DESS Switch) |
| 41 | 278003012 | Starter Relay |
| 44 | 293750001 | Tie Wrap 94 mm |
| 60 | 414115200 | Tie-Rap 180 mm |
| 84 | 515175662 | Male Terminal Housing, 6 Circuits |
| 92 | 515175846 | Male Terminal Housing, 4 Circuits |
| 100 | 415129898 | Battery YUASA YTX20HL This part replaces 296000295. |
| 105 | 515177014 | Ground Wire |
| 110 | 515178284 | DESS This part replaces 515177057. |
| 114 | 515177134 | Connector Plate |
| 115 | 515177147 | Housing Plate |
| 127 | 515177249 | DESS Switch |
| 135 | 515177347 | Plate |
| 136 | 515177348 | Battery Support |
| 137 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 149 | 515177394 | Switch |
| 157 | 515177427 | Battery Wire |
| 164 | 515177671 | Fuse Box Cover |
| 165 | 515177460 | Switch Ass'y |
| 167 | 860200907 | DESS CAP (LEARNING KEY) - Call your local BRP dealership This part replaces 515177480. |
| 168 | 515177500 | GROUND WIRE - Call your local BRP dealership |
| 170 | 515177912 | Indicator This part replaces 515177597. |
| 170a | 415129349 | Lens |
| 170b | 415129355 | Speedometer Button |
| 170c | 415129370 | Gauge Ring |
| 171 | 515177591 | WIRING HARNESS_CHASSIS - Call your local BRP dealership |
| 208 | 515176088 | Start/RER Button |
| 211 | 515178198 | LH Housing This part replaces 515177613. |
| 216 | 518325560 | Adhesive Patch |
| 225 | 710000495 | Protector Cap |
| 240 | 710001103 | Voltage Regulator |
