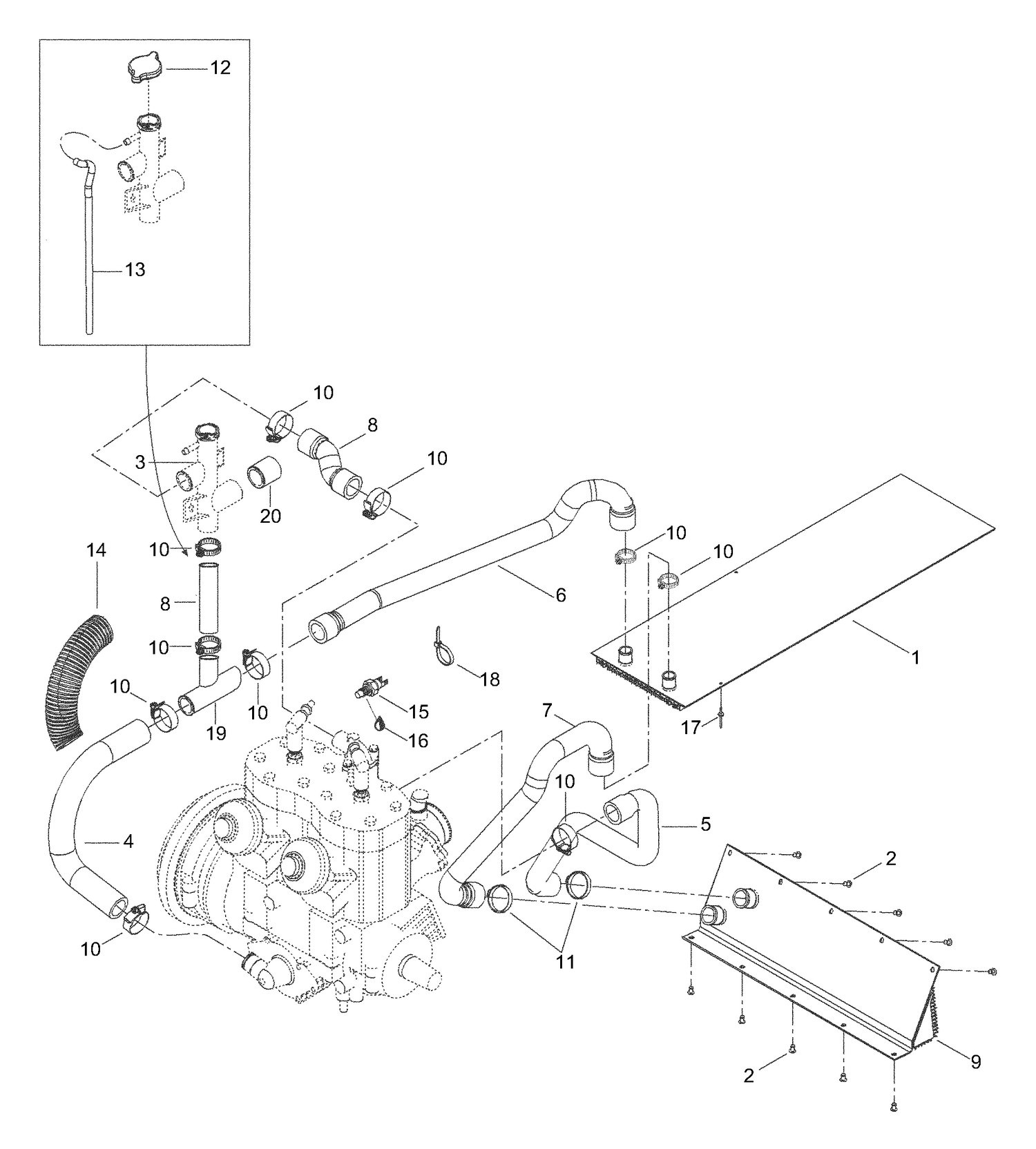

01- Radiator, Hoses
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5246130 | Radiator |
| 2 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 3 | 414684600 | Neck-filler |
| 4 | 509000001 | Hose |
| 5 | 509000046 | ENGINE OUTLET HOSE - Call your local BRP dealership |
| 6 | 5346350 | Radiator inlet hose |
| 7 | 5346349 | Hose |
| 8 | 509000005 | Hose |
| 9 | 517297100 | Front radiator |
| 10 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 | 509000045 | Hose clamp |
| 12 | 509000187 | Pressure Cap This part replaces 414684700. |
| 13 | 39038 | Overflow hose 9.5/6.5 |
| 14 | 390003 | Protective shield |
| 15 | 512047000 | Sender temperature |
| 16 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 17 | 36083 | Rivet |
| 18 | 293750008 | Tie-Rap 368 mm This part replaces 27100. |
| 19 | 509000219 | T-Fitting This part replaces 414619900. |
