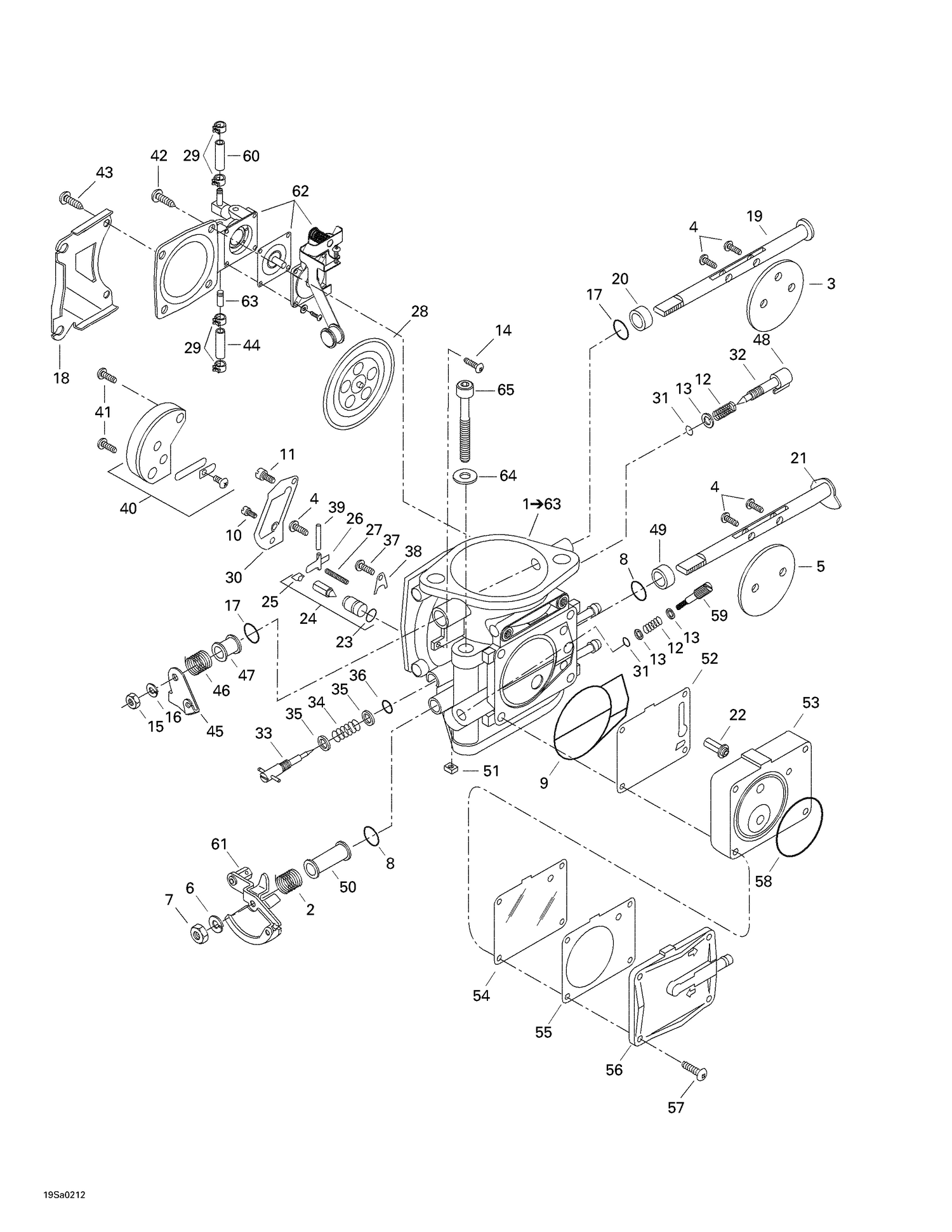

02- Carburetor
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 270500191 | Spring |
| 3 | Not | Available As Spare Part - Choke Valve |
| 4 | 270500156 | SCREW - Call your local BRP dealership |
| 5 | Not | Available As Spare Part - Throttle Valve |
| 6 | 270500011 | SPRING WASHER - Call your local BRP dealership |
| 7 | 270500376 | Nut |
| 8 | 270500222 | Sealing Ring |
| 9 | 270500104 | O-Ring |
| 10 | 270500430 | Pilot Jet 70 |
| 11 | 270500392 | Main Jet 167.5 |
| 12 | 270500091 | SPRING - Call your local BRP dealership |
| 13 | 270500136 | Washer |
| 14 | 270500228 | Screw |
| 15 | 270500229 | NUT - Call your local BRP dealership |
| 16 | 270500230 | Spring Washer |
| 17 | 270500234 | SEALING RING - Call your local BRP dealership |
| 18 | 270500315 | Support |
| 19 | Not | Available As Spare Part - Choke Shaft Ass'y |
| 20 | 270500239 | RING - Call your local BRP dealership |
| 21 | Not | Available As Spare Part - Throttle Shaft Ass'y |
| 22 | 270500115 | FUEL FILTER - Call your local BRP dealership |
| 23 | 270500127 | O-RING - Call your local BRP dealership |
| 24 | 270500241 | Needle Valve 1.5 |
| 25 | 270500129 | CLIP - Call your local BRP dealership |
| 26 | 270500128 | NEEDLE VALVE LEVER - Call your local BRP dealership |
| 27 | 270500313 | Spring |
| 28 | 270500132 | DIAPHRAGM ASS'Y - Call your local BRP dealership |
| 29 | 293650071 | OETIKER CLAMP - Call your local BRP dealership |
| 30 | 270500131 | GASKET - Call your local BRP dealership |
| 31 | 270500144 | O-RING - Call your local BRP dealership |
| 32 | 270500113 | Adjuster Screw |
| 33 | 270500020 | IDLE ADJUSTING SCREW - Call your local BRP dealership |
| 34 | 270500019 | SPRING - Call your local BRP dealership |
| 35 | 270500018 | Washer |
| 36 | 270500119 | O-RING - Call your local BRP dealership |
| 37 | 270500155 | Screw And Spring Washer |
| 38 | 270500125 | PLATE - Call your local BRP dealership |
| 39 | 270500038 | Pin |
| 40 | 270500124 | VALVE ASS'Y - Call your local BRP dealership |
| 41 | 270500123 | SCREW - Call your local BRP dealership |
| 42 | 270500322 | Screw |
| 43 | 270500238 | SCREW - Call your local BRP dealership |
| 44 | 270500342 | Hose |
| 45 | 270500316 | Choke Lever |
| 46 | 270500248 | SPRING - Call your local BRP dealership |
| 47 | 270500110 | Ring |
| 48 | 270500154 | Cap |
| 49 | 270500309 | RING - Call your local BRP dealership |
| 50 | 270500192 | RING - Call your local BRP dealership |
| 51 | 270500249 | Nut |
| 52 | 270500103 | GASKET - Call your local BRP dealership |
| 53 | 270500105 | Body Pump Ass'y |
| 54 | 270500106 | DIAPHRAGM - Call your local BRP dealership |
| 55 | 270500146 | Gasket |
| 56 | 270500108 | PUMP COVER - Call your local BRP dealership |
| 57 | 270500143 | SCREW - Call your local BRP dealership |
| 58 | 270500102 | O-RING - Call your local BRP dealership |
| 59 | 270500288 | Adjuster Screw |
| 60 | 270500342 | Hose |
| 61 | 270500317 | Throttle Lever Ass'y |
| 62 | 270500424 | Diaphragm Cover |
| 63 | 270500348 | RECHARGE JET - Call your local BRP dealership |
| 64 | 234081600 | Stainless, Flat Washer 8 mm |
