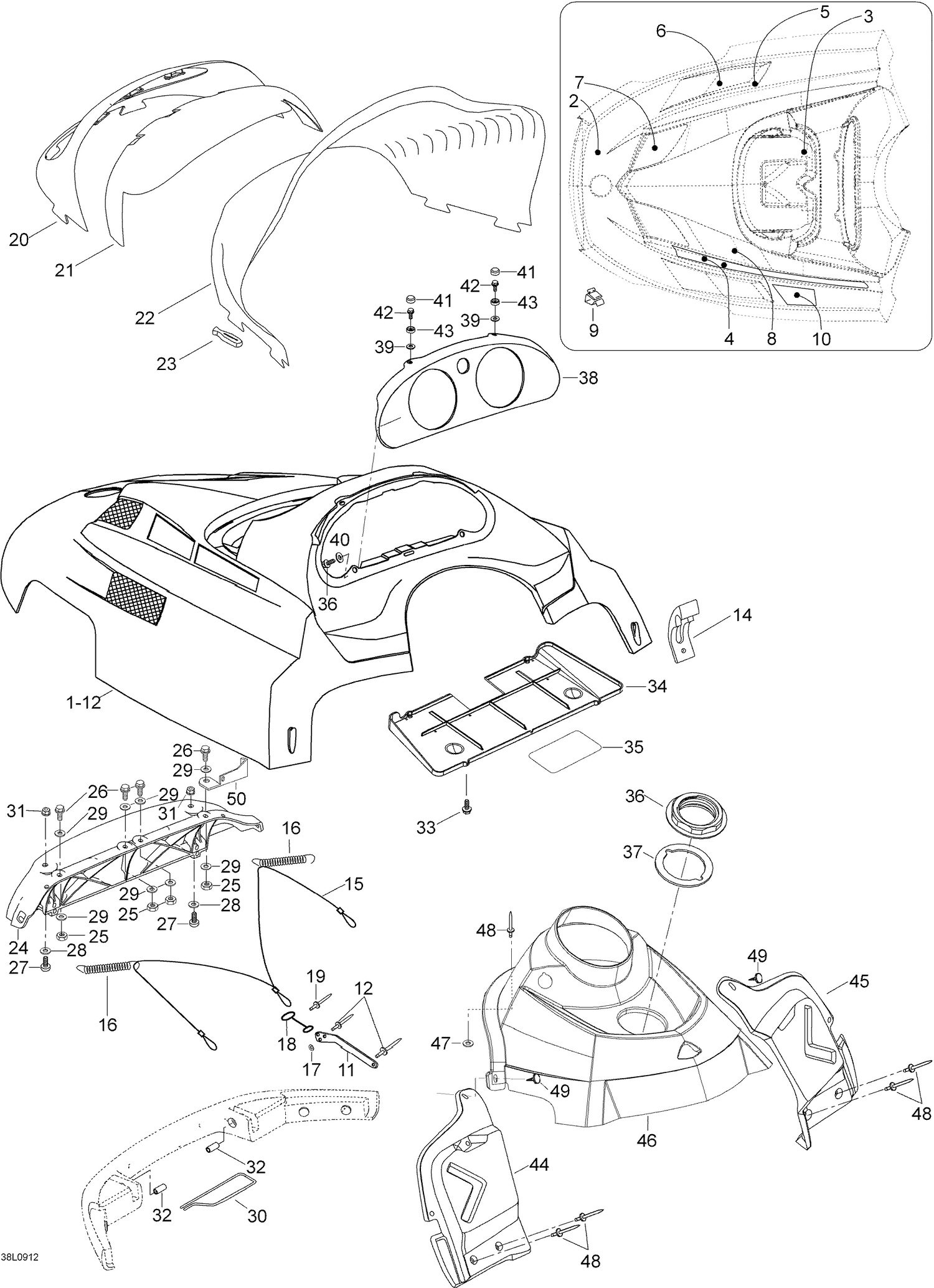

| Ref | Part Number | Description |
|---|
| 2 |
605350919 |
HEAT PROTECTOR - Call your local BRP dealership |
| 3 |
605350920 |
HEAT PROTECTOR - Call your local BRP dealership |
| 4 |
605350921 |
HEAT SHIELD - Call your local BRP dealership |
| 5 |
605350922 |
HEAT PROTECTOR - Call your local BRP dealership |
| 6 |
605350923 |
LH UPPER GRILL - Call your local BRP dealership |
| 6 |
605350924 |
RH UPPER GRILL - Call your local BRP dealership |
| 7 |
605350925 |
LH LOWER GRILL - Call your local BRP dealership |
| 7 |
605350926 |
RH LOWER GRILL - Call your local BRP dealership |
| 8 |
605350927 |
LH GRILL - Call your local BRP dealership |
| 9 |
414227300 |
Clip |
| 10 |
605350929 |
HEAT SHIELD - Call your local BRP dealership |
| 11 |
605452657 |
BRACKET - Call your local BRP dealership |
| 12 |
36002 |
Rivet |
| 13 |
28035 |
Plastic nut |
| 14 |
517302152 |
Latch |
| 15 |
605351372 |
Retainer cable |
| 16 |
5442675 |
Spring |
| 17 |
20001 |
Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership |
| 18 |
5442870 |
Retainer Cable Clip - Call your local BRP dealership |
| 19 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 20 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 21 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 22 |
605152073 |
Windshield |
| 23 |
570023800 |
Windshield latch |
| 24 |
517302631 |
Hinge half |
| 25 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 26 |
40030 |
Hex. screw screw M6 x 20 |
| 27 |
40381 |
Socket head screw M6 x 20 |
| 28 |
20117 |
Washer |
| 29 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 30 |
605454779 |
Pin |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 32 |
605454780 |
BUSHING - Call your local BRP dealership |
| 33 |
243141630 |
Screw M4,8 x 16 |
| 34 |
605151831 |
AIR INTAKE PLATE - Call your local BRP dealership |
| 35 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 36 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 37 |
5447116 |
Gasket - Call your local BRP dealership |
| 38 |
605355387 |
Indicator support |
| 39 |
40611 |
Screw, Plastofast 4 x 10 |
| 40 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 41 |
414436900 |
BLACK SNAP CAP - Call your local BRP dealership |
| 42 |
20037 |
Washer A4,3 |
| 43 |
20039 |
Washer 4mm |
| 44 |
605255489 |
L.H. Console |
| 45 |
605251385 |
RH CONSOLE - Call your local BRP dealership |
| 46 |
605355172 |
Center console |
| 47 |
20008 |
Washer A5,3 |
| 48 |
36037 |
Rivet |
| 49 |
414644300 |
Black, Dart |
| 50 |
605351463 |
LH HOOD SUPPORT - Call your local BRP dealership |
