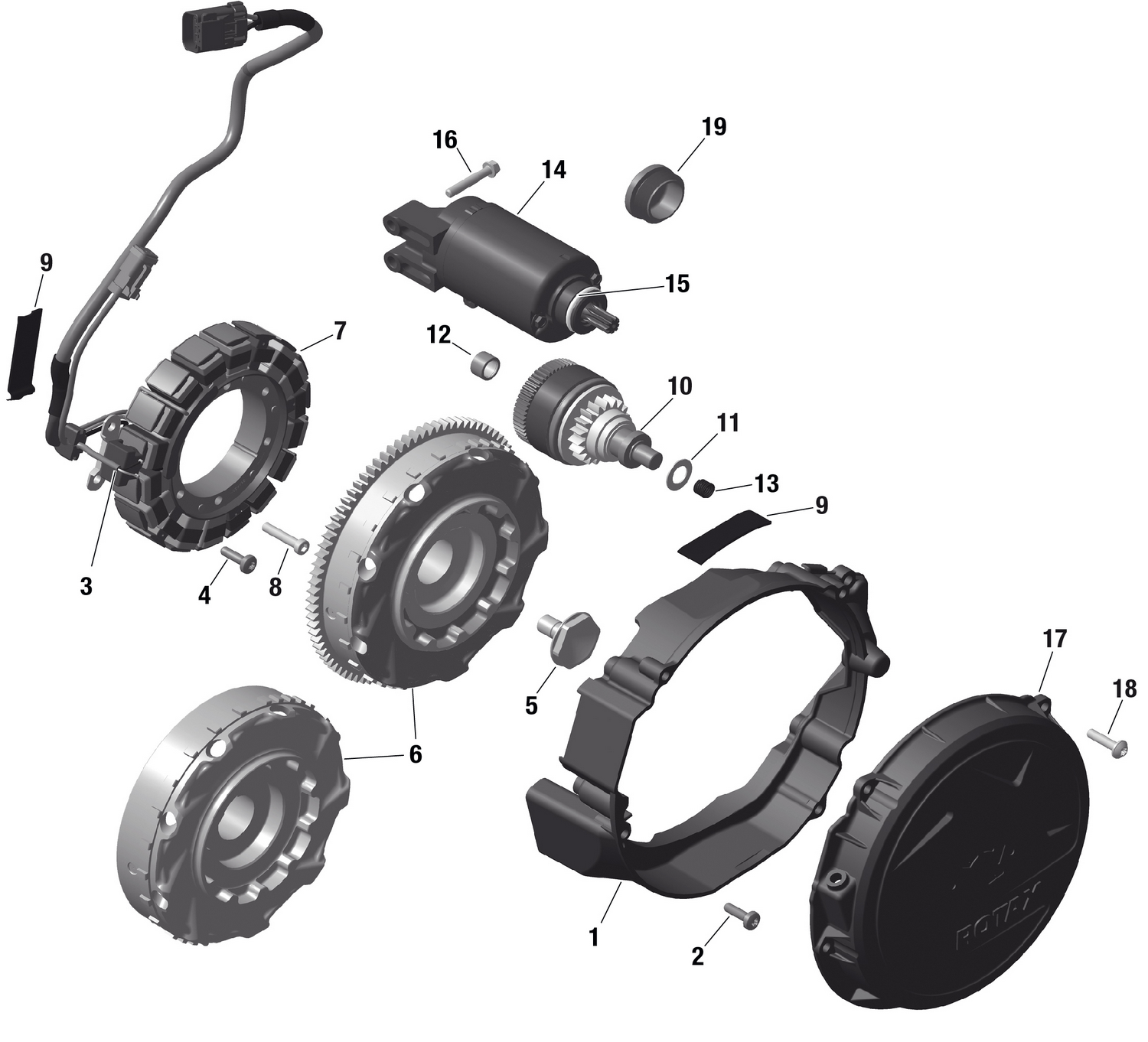

| Ref | Part Number | Description |
|---|
| 1 |
420911854 |
Ignition Housing This part replaces 420911850. |
| 2 |
420441386 |
Torx Flange Screw M6 X 20 |
| 3 |
420966844 |
Pickup Ass'y This part replaces 420966841. |
| 4 |
420441386 |
Torx Flange Screw M6 X 20 |
| 5 |
420840851 |
Collar Hex Screw M12 X 25 |
| 6 |
420866048 |
Magneto Flywheel |
| 7 |
420864427 |
Stator Ass'y 55V/1300W |
| 8 |
420540001 |
Allen Screw M6 X 30 |
| 9 |
420201360 |
Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
420940431 |
Plastite Screw |
